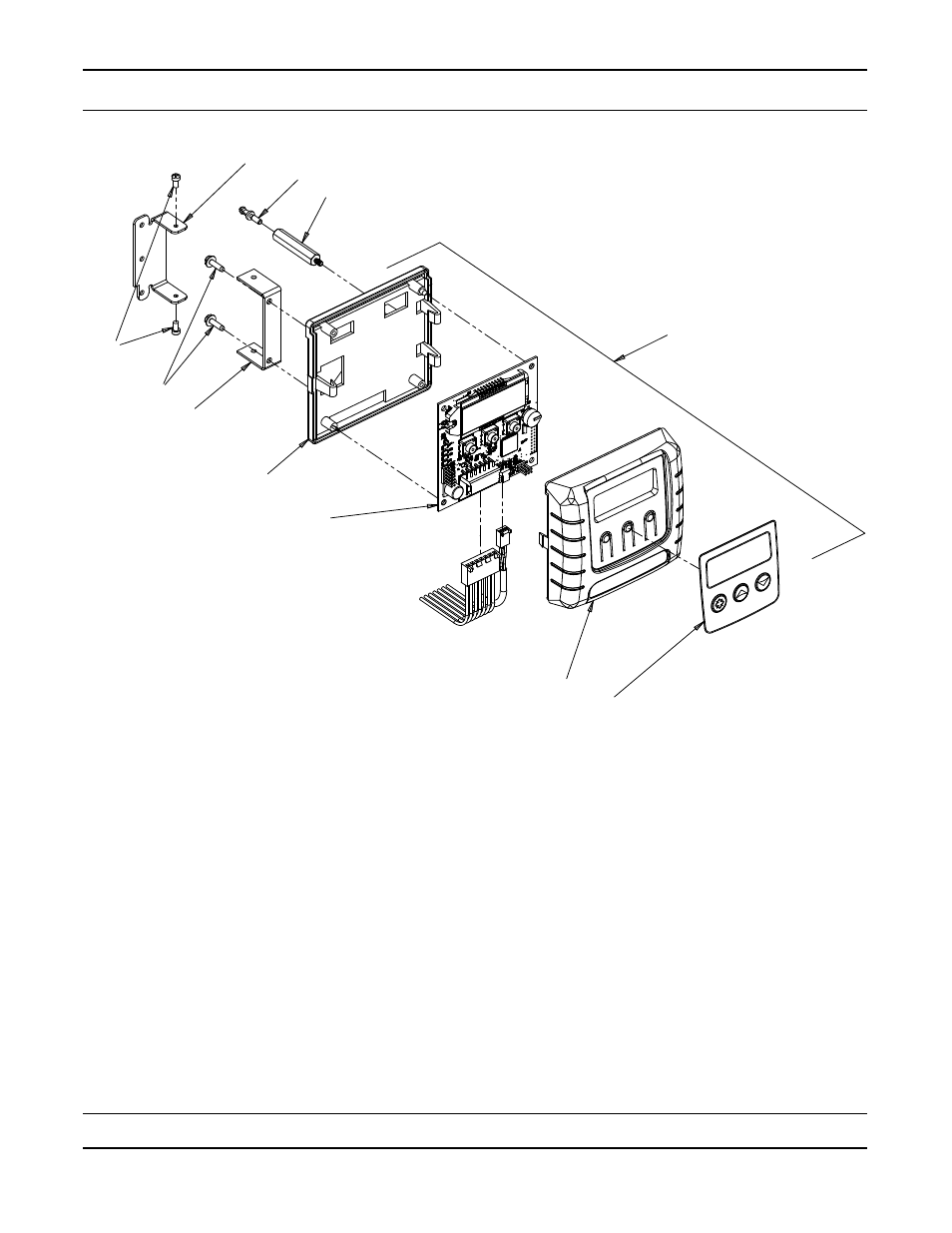

9000/9100/9500 Twin Tank Timer Assembly
Item No. Quantity Part No. Description
. 1.................... 1..................... 13881.......................
BRACKET, HINGE TIMER
. 2.................... 2..................... 11384.......................
SCREW, PHIL, 6-32 X 1/4
. 3.................... 1..................... 42732.......................
BRACKET, TIMER, 9000SXT
. 4.................... 2..................... 13296.......................
SCREW, HEX WSH, 6-20 X 1/2
. 5.................... 1..................... 14265.......................
CLIP, SPRING
. 6.................... 1..................... 42733.......................
STAND-OFF,TIMER,9000SXT
. 7.................... 1..................... 61464.......................
TIMER, SXT, 2510/2750/9000, D/F
7A................. 1..................... 19889.......................HOUSING, CIRCUIT BOARD
. 7B................. 1..................... 42196.......................
CIRCUIT BOARD,SE
7C................. 1..................... 42635.......................COVER,FRONT,SXT,SQUARE
. 7D................. 1..................... 42637.......................
LABEL,DISPLAY,SE
For Assembly Numbers, See the Back of this Manual
1
2
4
3
5
6
7A
7B
7C
7D
7
