Diagnostic Programming Mode
Diagnostic Programming Mode Options
Abbreviation Parameter Description
FR Flow Rate Displays the current outlet flow rate
PF Peak Flow Rate Displays the highest flow rate measured since the last regeneration
HR Hours in Service Displays the total hours that the unit has been in service
VU Volume Used Displays the total volume of water treated by the unit
RC Reserve Capacity Displays the system’s reserve capacity calculated from the system
capacity, feedwater hardness, and safety factor
SV Software Version Displays the software version installed on the controller
.
NOTES:
Some items may not be shown depending on timer configuration.
The timer will exit Diagnostic Mode after 60 seconds if no buttons are pressed.

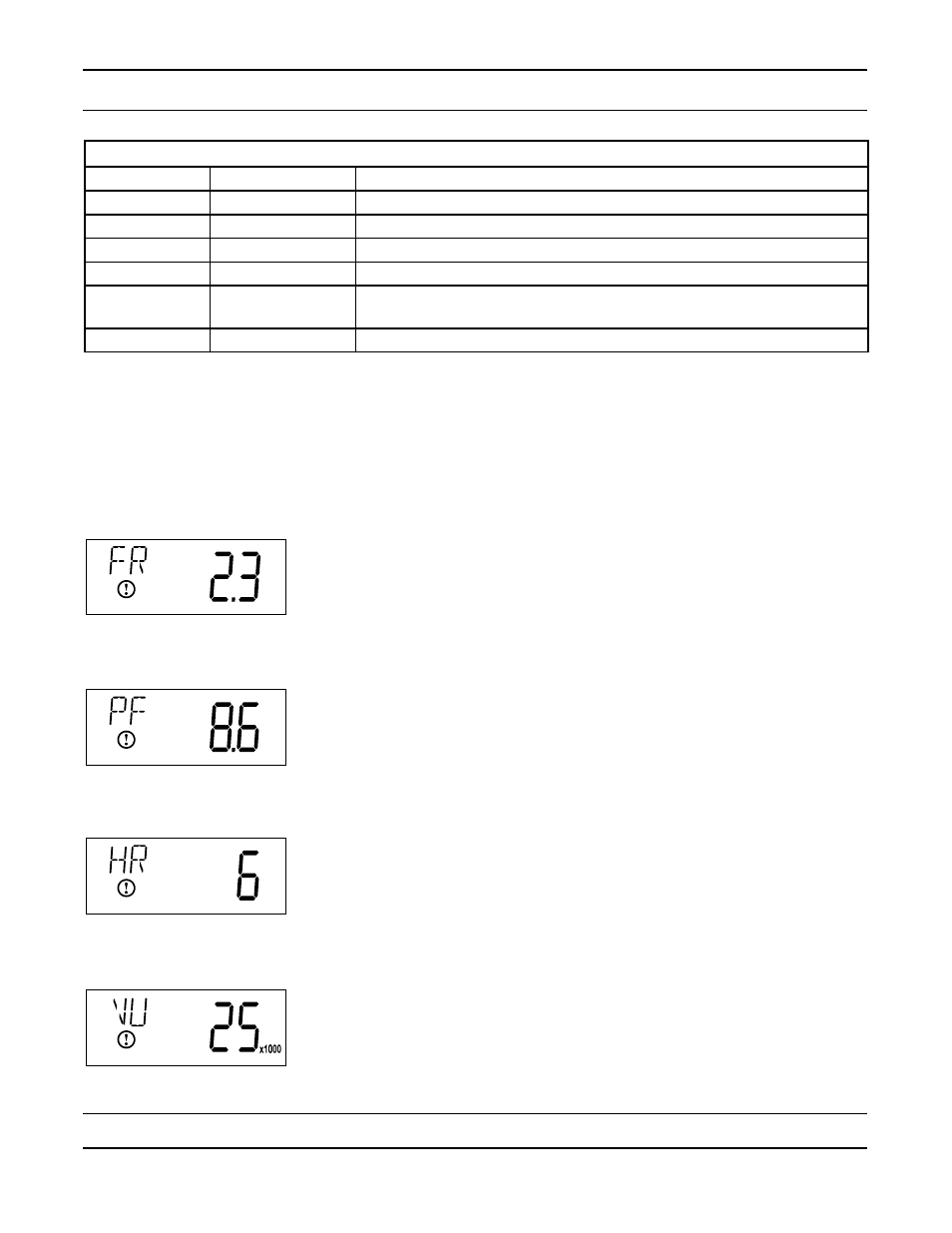

Diagnostic Programming Mode Steps
Press the Up and Extra Cycle buttons for five seconds while in service.
Use this display to view the current Flow Rate. This option setting is identified by “FR” in the upper left hand
corner of the screen..
.
.
.
.
.
Press the Extra Cycle button. Use this display to view the Peak Flow Rate since the last regeneration cycle.
This option setting is identified by “PF” in the upper left hand corner of the screen..
.
.
.
.
.
Press the Extra Cycle button. Use this display to view the Hours in Service since the last regeneration cycle.
This option setting is identified by “HR” in the upper left hand corner of the screen..
.
.
.
.
.
Press the Extra Cycle button. Use this display to view the Volume Used since the last regeneration cycle. This
option setting is identified by “VU” in the upper left hand corner of the screen..
.
.
.
.
.
