Dimensions and Cabinet Requirements
General Cabinet Requirements
Cabinet requirements vary depending on the model to be
installed. Please consult the section Dimensions for the
details pertaining to your particular model.
All models require:
▯
¼" (6.4 mm) space between the side of the appliance
and an adjacent wall or cabinet door when intalled at
the end of a cabinet run.
▯
The cabinet base must be flat and capable of
supporting the weight of your appliance when in use.
See the appropriate weight for your model in the
Dimensions section pertaining to your particular
model. For combo-units consult the section Cabinet
Dimension Requirements in the installation manual of
your combination appliance.
▯
The appliance door will overlap the furniture below by
approx. 5 mm when opened. If necessary, you can
elevate the appliance position by adding a panel in the
required thickness on top of the supporting base. The
supporting base must be level and securely fixed to
the cabinet.
Outlet Area
Appliances with plug connection: The outlet can be
located anywhere within the shaded area.
Appliances with wire conduit connection:
▯
For stand alone installation, the electrical connection
box must be mounted to the wall inside the cabinet
cavity anywhere within the shaded area.
▯
For installation as part of a combination of various
Bosch appliances, please consult the installation
manual of the combo-unit.

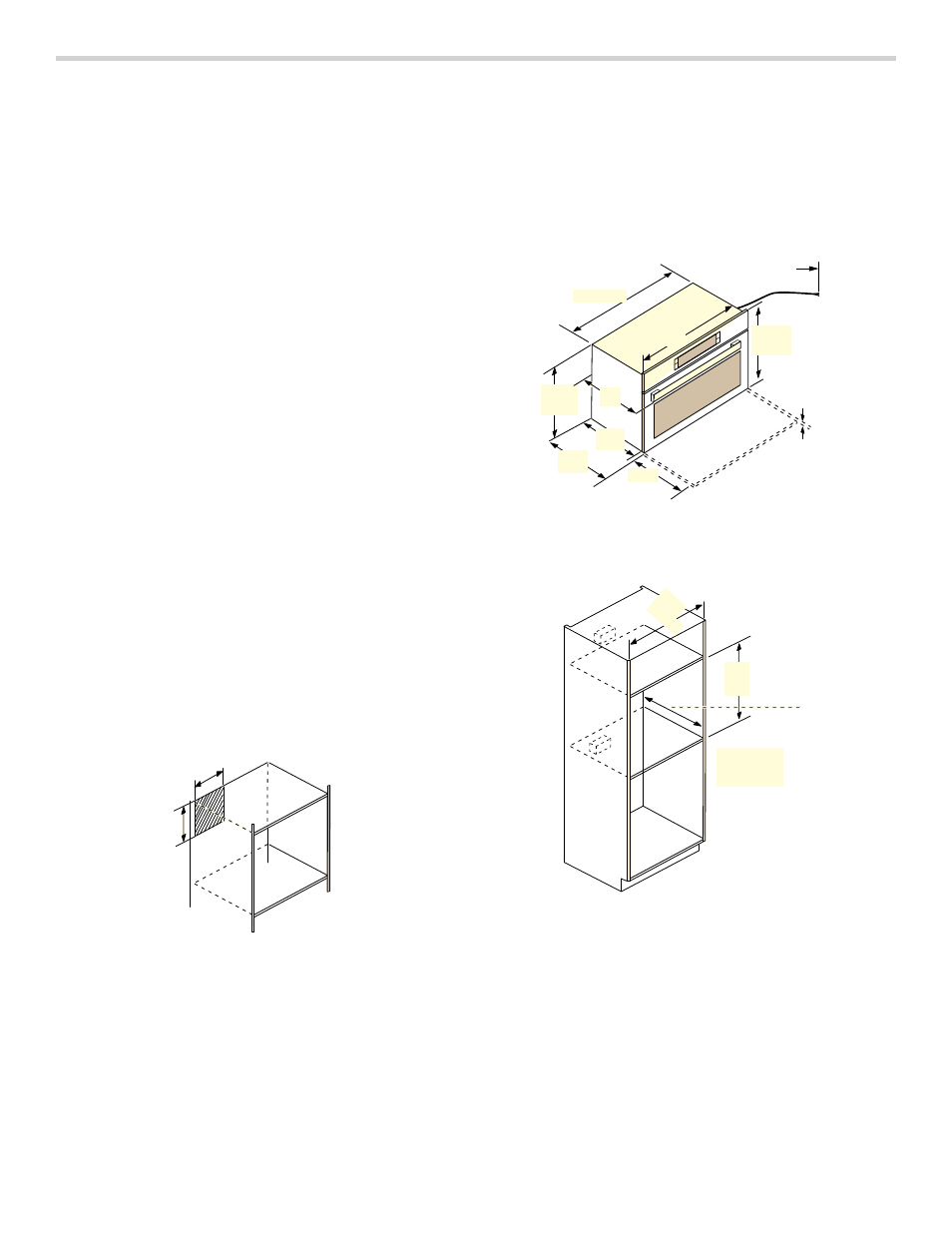

Dimensions for 30” Wall-Mounted Units
HMC80151UC
HMC80251UC
Appliance Dimensions
Cabinet Dimensions
NOTICE: The cabinet base must be flat and capable of
supporting a weight of at least 142 lbs (64.1 kg).
