10

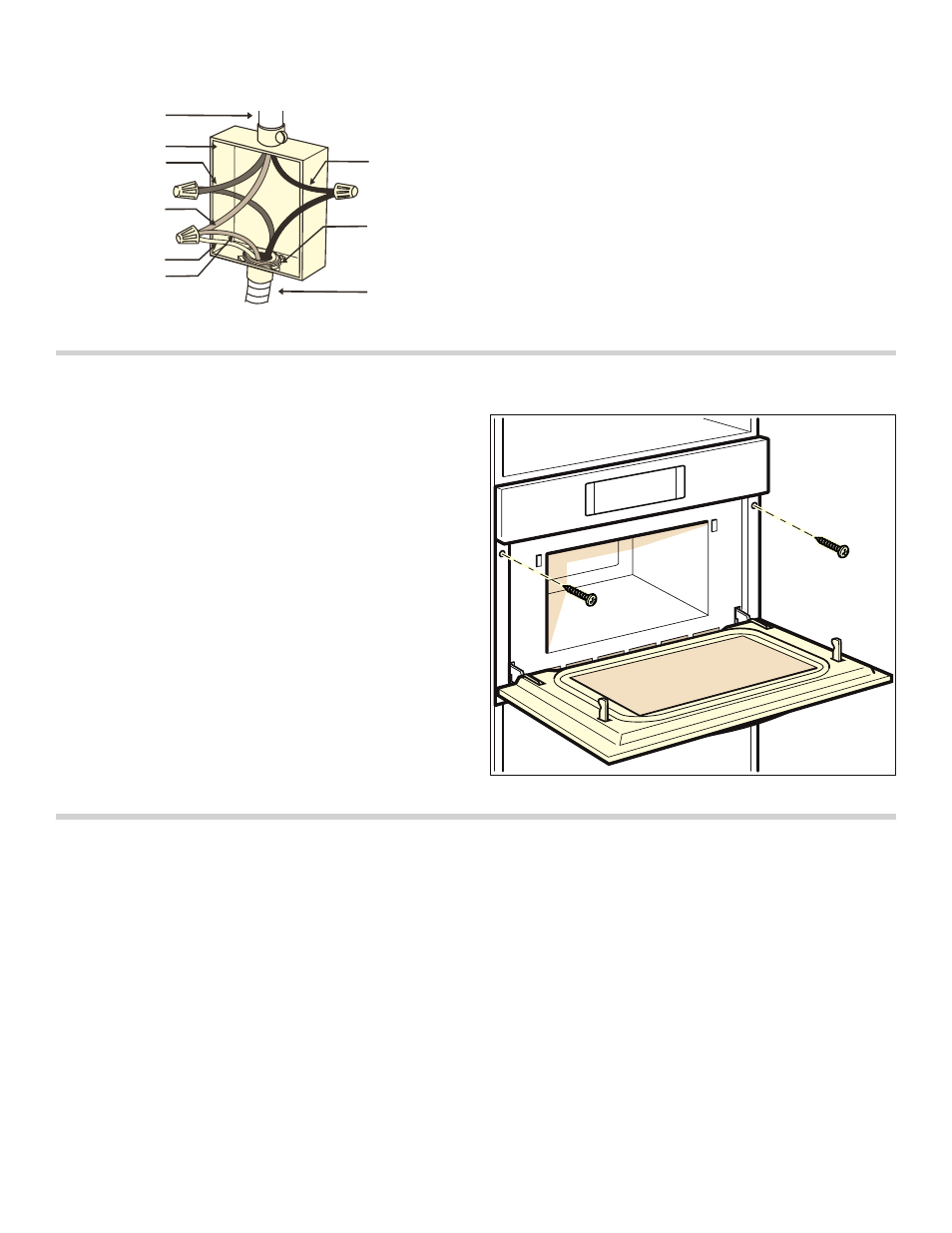

Three-wire Connection
Grounded Neutral
▯
Connect red wire from oven to red wire in junction box.
▯
Connect black wire from oven to black wire in junction
box..
▯
Connect both green ground wire and white wire from
oven to white, green or bare neutral wire in junction
box.
The conduit cable, where connected at the oven, swivels.
Rotate conduit cable upward (or downward) and direct
through hole prepared in cabinet to attach to junction
box.
To maintain serviceability, the flex conduit must not be
shortened and should be routed to permit temporary
removal of the oven.
Install Appliance
Note: The appliance is heavy. It is advisable to insert it
together with a second person.
NOTICE: Before installing the oven, be sure to verify the
cabinet dimensions and electrical connections.
Mount to Cabinet
1. Fully insert the appliance and centre it. Do not kink the
electrical cable.
2. Screw the appliance into place.
Testing Operation
1. Turn on power at the breaker.
2. For Model HMC80251UC: Check power at junction
box using a volt meter.
For 240 V installation, the reading between the red
and black wires (line to line) should be 220 to 240
volts.
For 208 V installation, the reading between the red
and black wires (line to line) should be 190 to 208
volts.
3. Test the oven mode:
Select the CONVECTION mode. See the Use and Care
Manual for detailed operation instructions.
4. Verify that the oven light comes on and the oven
begins to preheat.
5. Test the microwave:
Place a cup of water into the oven cavity. Follow The
instructions in the Use and Care Manual on how to
heat a beverage.
6. Verify that the oven light comes on and the water is
heated.
7. If any of the tests do not result as explained above,
contact service for assistance. Otherwise, the
installation is complete at this time.
SRZHUVXSSO\
MXQFWLRQER[
UHGZLUHV
ZKLWHEDUHRU
ZKLWHZLUH
JUHHQZLUH
JUHHQZLUH
FDEOHIURP
8/OLVWHG
EODFNZLUHV
RYHQ
FRQQHFWRU
