THT47 - THT60
EN - 34
8. The screen shows the default palette in uniform grey with division markers in 4 parts in
a default temperature range of 0.0°C/F (MIN)
 50.0°C/F (MAX) with values of: 12.5,
25.0 and 37.5
9. Touch the MIN 0.0 value and/or the MAX 50.0 value. The following screens are
shown on the display:

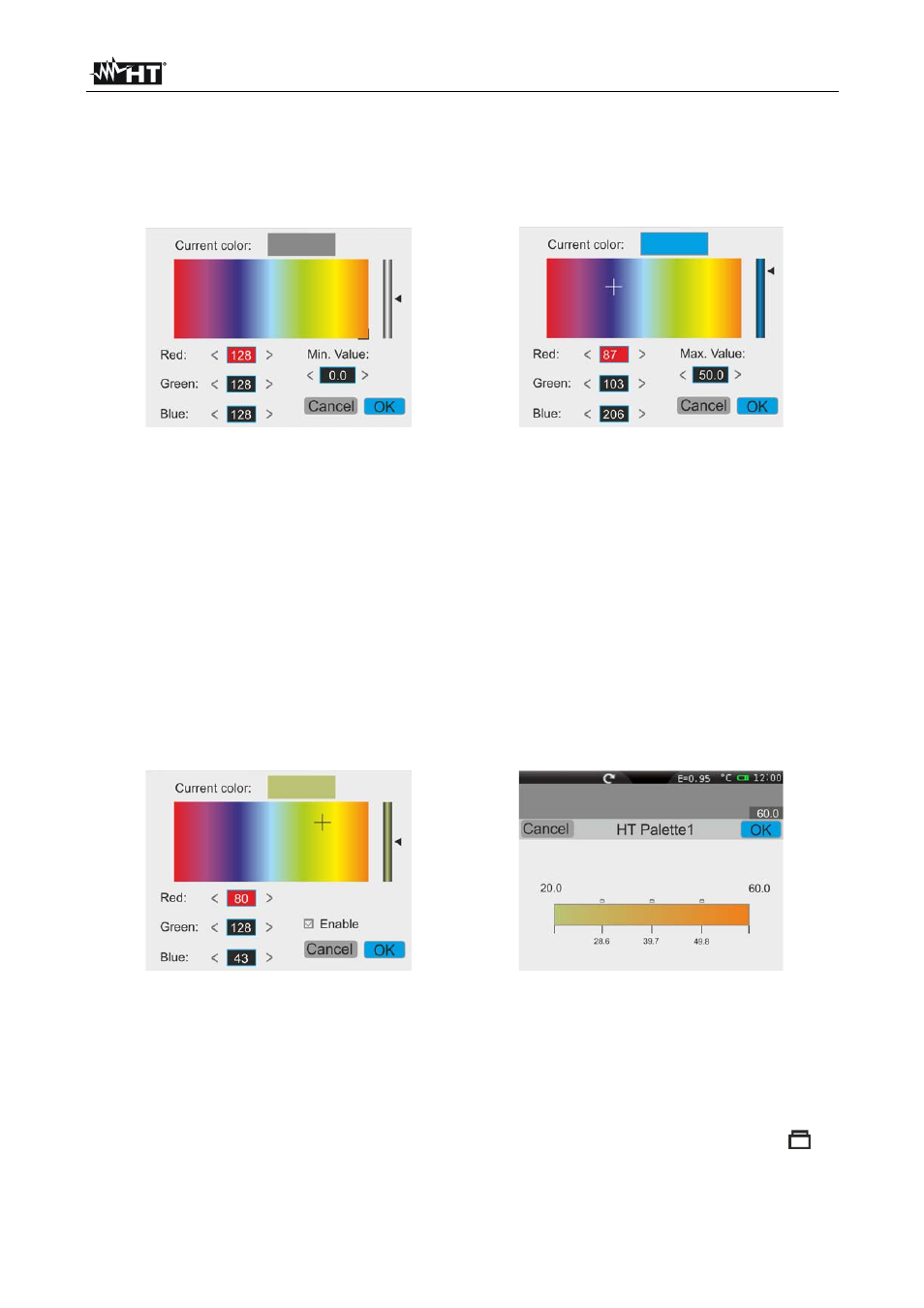

Fig. 52: Customizing the user palette colours – Step 2
10. Touch the symbols “<” and “>” to set:
 Min value:  The minimum value of the manual temperature range in the
instrument's measuring range: -20°C
 400°C
 Max value:  The maximum value of the manual temperature range in the
instrument's measuring range: -20°C
 400°C
 The values of the colours associated to the RGB model (Red, Green, Blue) in a
range between 0
 255. Setting is possible both by inserting numerical values, and
by touching the cursors “ ” and “” on the colour spectrum and observing the
resulting effect on the bar positioned at the top of the display (see Fig. 52 – right
side).
11. Confirm the operation with “OK” or press “Cancel” to exit without saving and go back to
the previous screen.
12. Drag the 4 division markers of the temperature range along the bar until the desired
intermediate temperature values are obtained (see Fig. 53 – right side).
Fig. 53: Customizing the user palette colours – Step 3
13. Touch the division markers and set:
 The values of the colours associated to the RGB model (Red, Green, Blue) in a
range between 0
 255. Setting is possible both by inserting numerical values, and
by touching the cursors “ ” and “” on the colour spectrum and observing the
resulting effect on the bar positioned at the top of the display (see Fig. 53 – left
side).
 Activation of the marker with sign “” in the “Activate” range. The symbol “ ” is
found on the bar of the palette (see Fig. 53 – right side).
14. Confirm the operation with “OK” or press “Cancel” to exit without saving and go back to
the previous screen.
