THT47 - THT60
EN - 31

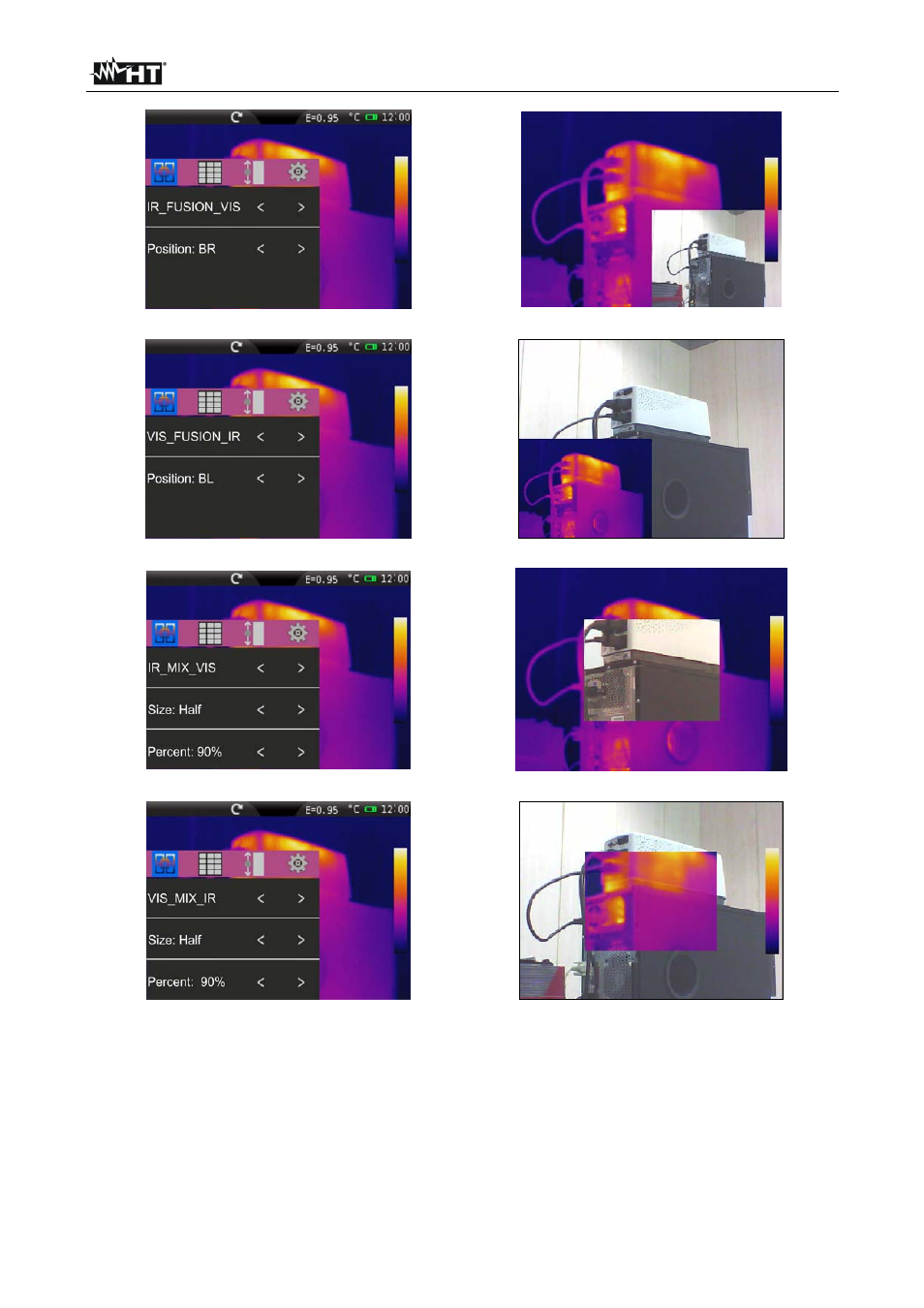

Fig. 43: Setting and displaying the IR_FUSION_VI image
Fig. 44: Setting and displaying the VIS_FUSION_IR image
Fig. 45: Setting and displaying the IR_MIX_VIS image
Fig. 46: Setting and displaying the VIS_MIX_IR image
1. Touch the symbols “<” and “>” to select the type of desired display.
2. In modes “IR_FUSION_VIS” and “VIS_FUSION_IR”, touch the symbols “<” and “>” to
select the position between the options: “BR” (at the bottom on the right), “BL” (at the
bottom, on the left), “TR” (at the top, on the right) and “TL” (at the top, on the left).
3. In modes “IR_MIX_VIS” and “VIS_MIX_IR” touch the symbols “<” and “>” to select the
dimensions of the internal frame in item “Measurement” between the options “Half” and
“Whole” and the percentage value of the IR or Visible level in item “Percent” with
range: 0%
 100%
