THT47 - THT60
EN - 13
5.2 MAIN MENU DESCRIPTION
Pressing the key or simply touching the display, the instrument shows/hides the
following main menu consisting in 6 icons which allow accessing all internal functions:

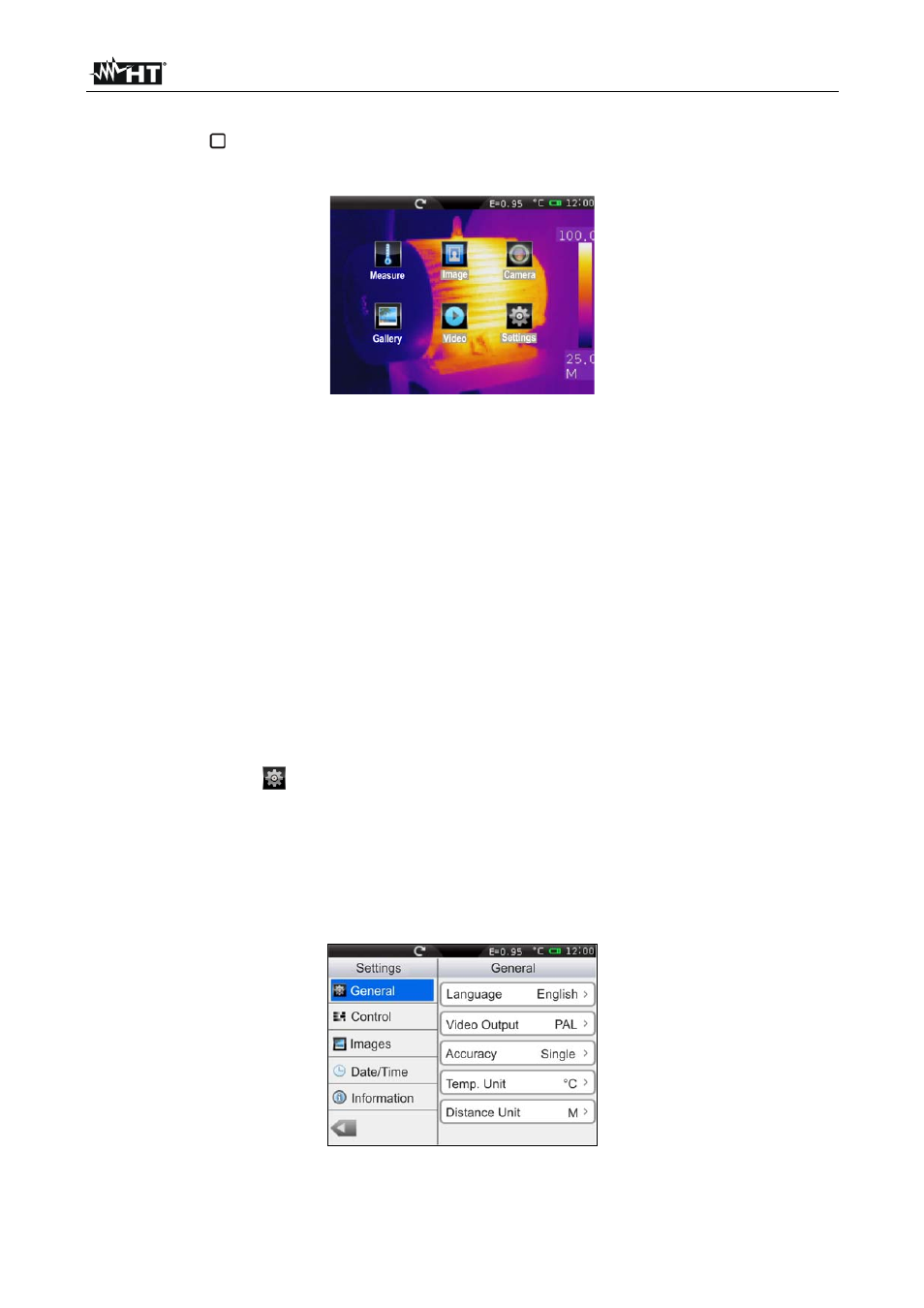

Fig. 9: Main instrument menu
Measure menu
defines the properties of the tools which can be used for measuring
(cursors, lines, areas, object parameters, alarm conditions).
Image menu
defines the display mode of IR, Visible and Fusion images (THT60), the
Automatic/Manual modes and the Isotherm line tool.
Camera menu
defines the saving modes of IR images and videos.
Gallery menu
includes the gallery of the IR images saved in the micro SD card.
Video menu
includes the list of the IR videos saved in the micro SD card.
Settings menu
allows setting system parameters.
5.2.1 Settings
Menu
By touching the icon
the instrument enters the “Setting” menu, in which it is possible to
define the values of system parameters.
5.2.1.1 “General” section
In this section (see Fig. 10) it is possible to define the system language, the type of video
output, the accuracy in temperature measurement, the measuring unit of temperature and
distance.
Fig. 10: “General” section, Setting menu
