Engl
ish
9
• It is blinking red when the sleep mode has been enabled
and the receiver is currently running a session. With the
sleep mode enabled, the receiver is idle between any two
sessions, as if it were virtually turned off, and the power
LED is also turned off during this time.
Log Button
Press this button briefly to start recording raw data on the
selected storage medium.
Another short press on this button will immediately stop raw
data recording.
Scroll button
Press this button briefly to scroll through the different pages
of information viewed on the screen.
If an alarm is reported on the display screen, a short press on
the Scroll button will acknowledge the alarm. The Scroll
button will recover its display scrolling function only after all
the alarms have been acknowledged this way.
Another function of the Scroll button is to re-activate the
screen backlight after the latter has automatically been
turned off. The Scroll button is also used in the firmware
update procedure.

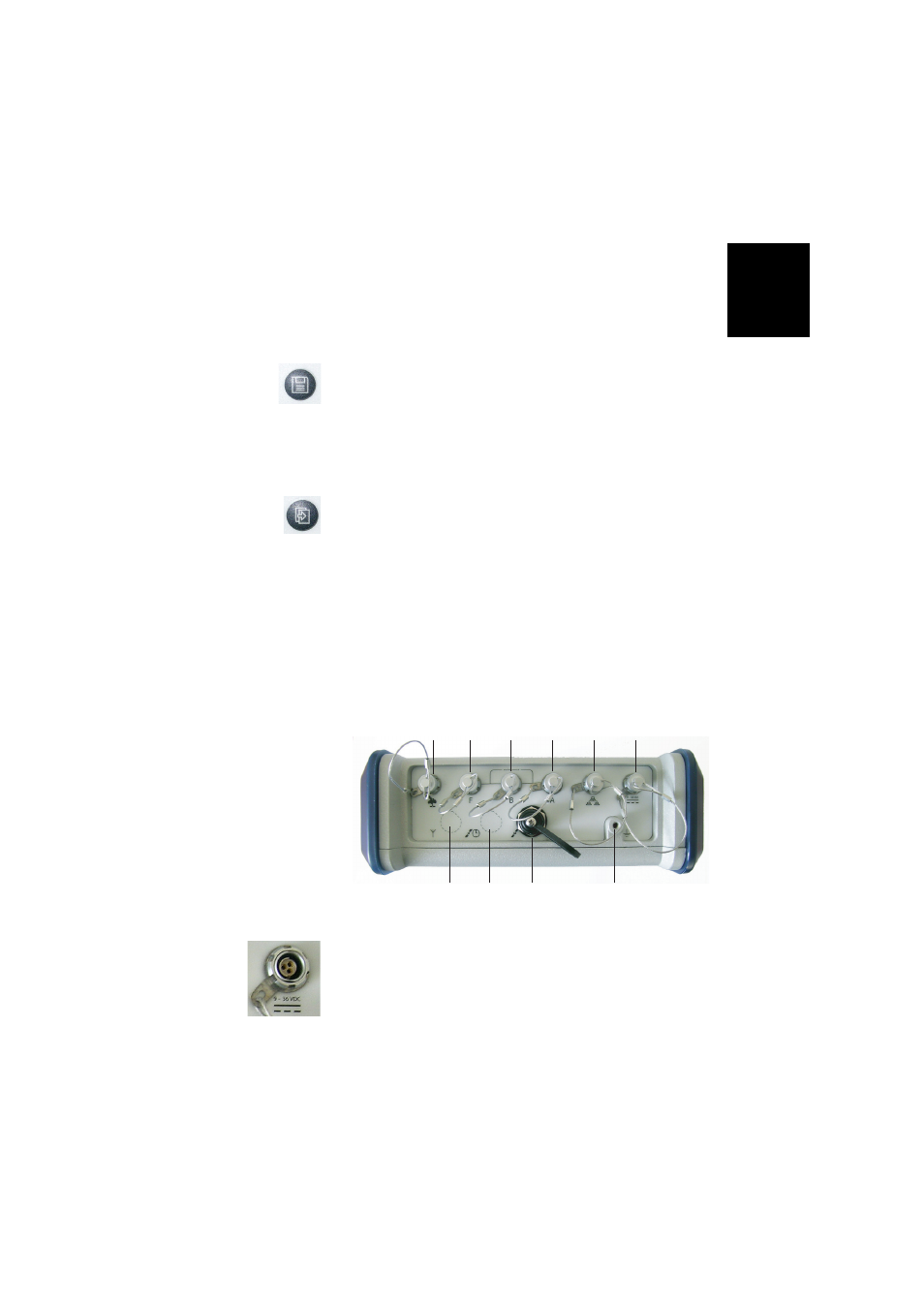

Rear View
DC Power Input
A Fischer, three-contact, female connector [1] allowing the
ProFlex 800 to be powered from either the provided AC
adapter (connect the cable extension between ProFlex 800
and the end of the AC adapter output cable), or an external
9- to 36-V DC power source through cable P/N 730477 (cf.
base setup using an external radio transmitter).
[9] [3] [4] [5] [7] [1]
[6] [8] [2] [10]
