PL3000 Series Hardware Manual
7-4

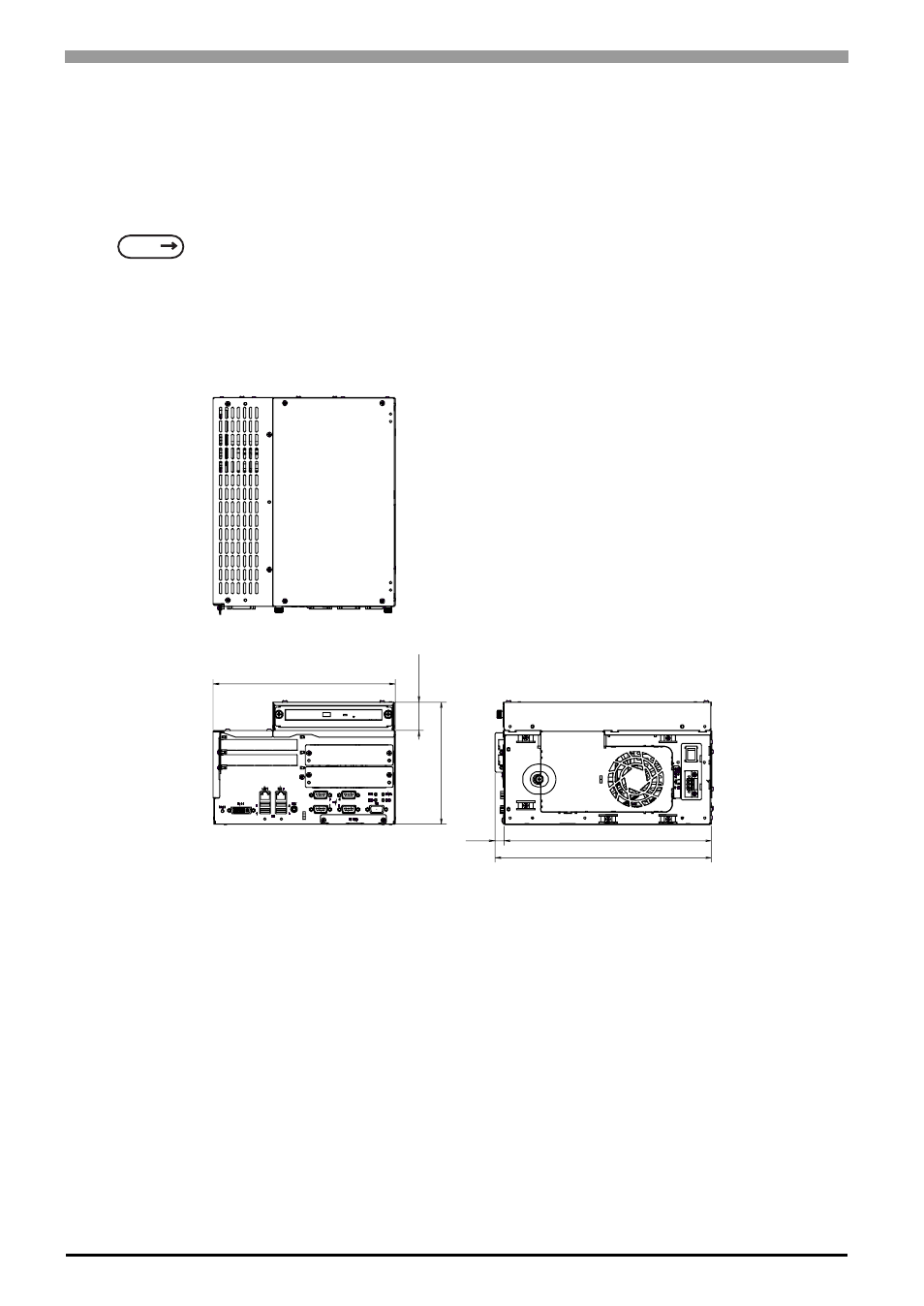

7.1.2 Dimensions (DVD drive unit built-in)
The following dimensional drawings apply to the control box in which the DVD drive unit is built-in.
For the panel computer, the DVD drive unit is installed on the rear face. A depth for the DVD drive unit is
required. See these dimensional drawings together with those of other PL models.
„ Dimensions of the 2 slot Unit
SEE 4. Dimensions (page 4-1)
243 [9.57]
12 [0.47] 277 [10.91]
289 [11.38]
16
3 [6
.42
]
Top
Unit: mm [in.]
Front
(Panel Computer : Side)
Right side
3
8 [1
.50
]
