PL3000 Series Hardware Manual
5-24

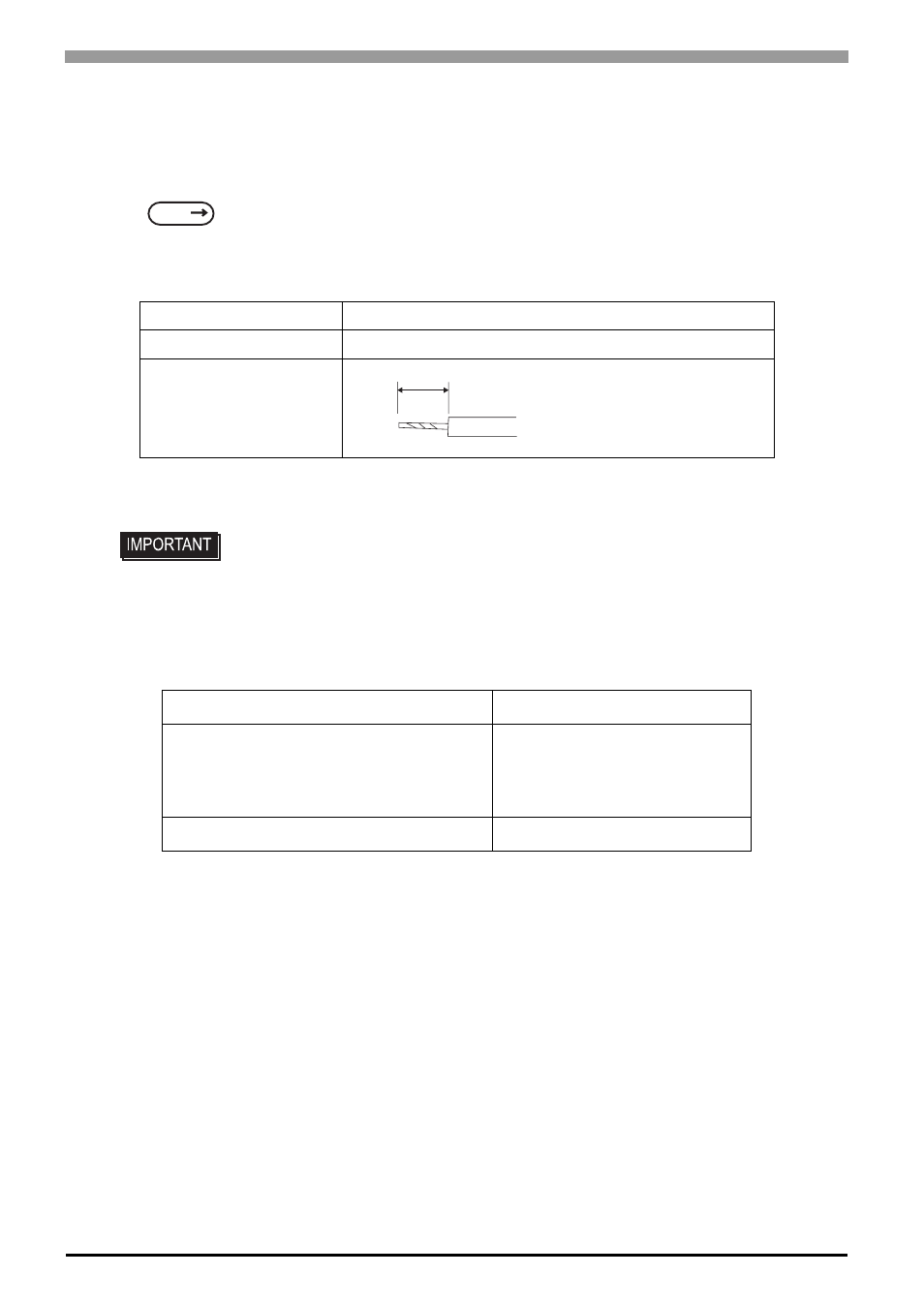

„ Spring-type Power Connector
Use the following procedure to connect a spring-type power connector to all
compatible power supply units, whether AC or DC type:
Power Cord Specifications
Wiring
When connecting the power cord, use the following items. (Made by Phoenix Contact.
*1
)
SEE
„
Power Connector (page 5-23)
Power Cord Diameter 0.75 to 2.5mm
2
(18 to 12 AWG)
Conductor Type Solid or stranded Wire
*1
*1 If the conductor’s end (individual) wires are not twisted correctly, they may short
against each other or an electrode.
Conductor Length
• Use copper conductors only.
• Temperature rating of field installed conductors: 75°C only.
Recommended Driver SZS 0.6x3.5 (1205053)
Recommended Pin Terminals
AI 0.75-10GY (3201288)
AI 1-10RD (3200182)
AI 1.5-10BK (3200195)
AI 2.5-12BU (3200962)
Recommended Pin Terminal Crimp Tool CRIMPFOX ZA3 (1201882)
*1 For details, please contact your local Phoenix Contact distributor.
10mm [0.39in.]
