Figure 3-5: mounting the din rail, Figure 3-6: secure the assembly to the din rail – IEI Integration AVL-3000 User Manual

Page 32

background image

AVL-3000 Advanced Auto Data Server

Page 18

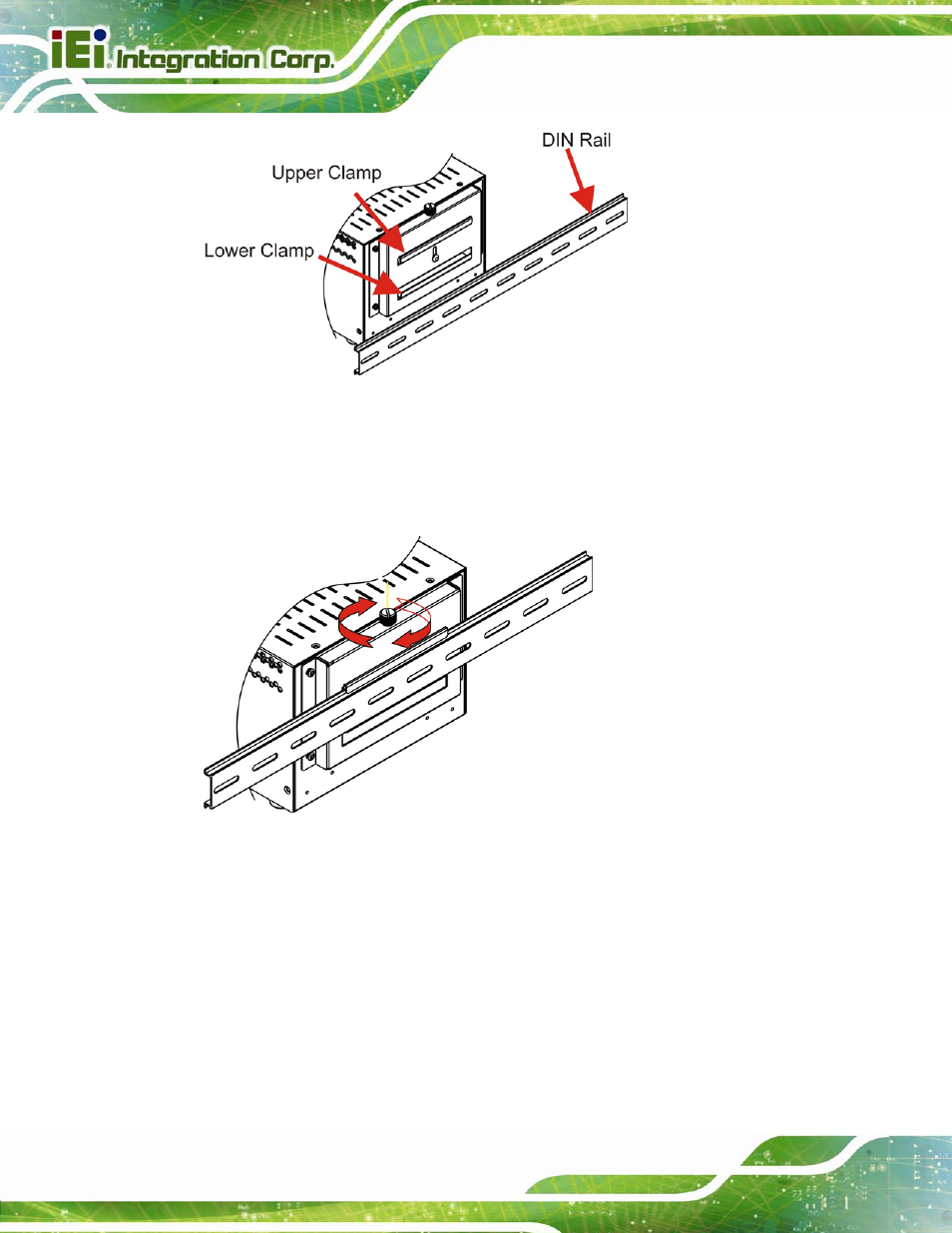

Figure 3-5: Mounting the DIN RAIL

Step 4:

Secure the DIN rail to the mounting bracket by turning the top screw clockwise.

This draws the lower clamp up and secures the AVL-3000 to the DIN rail (

75

Figure

3-6).

Figure 3-6: Secure the Assembly to the DIN Rail
