WansView NVR901 - Manual (Page 8)

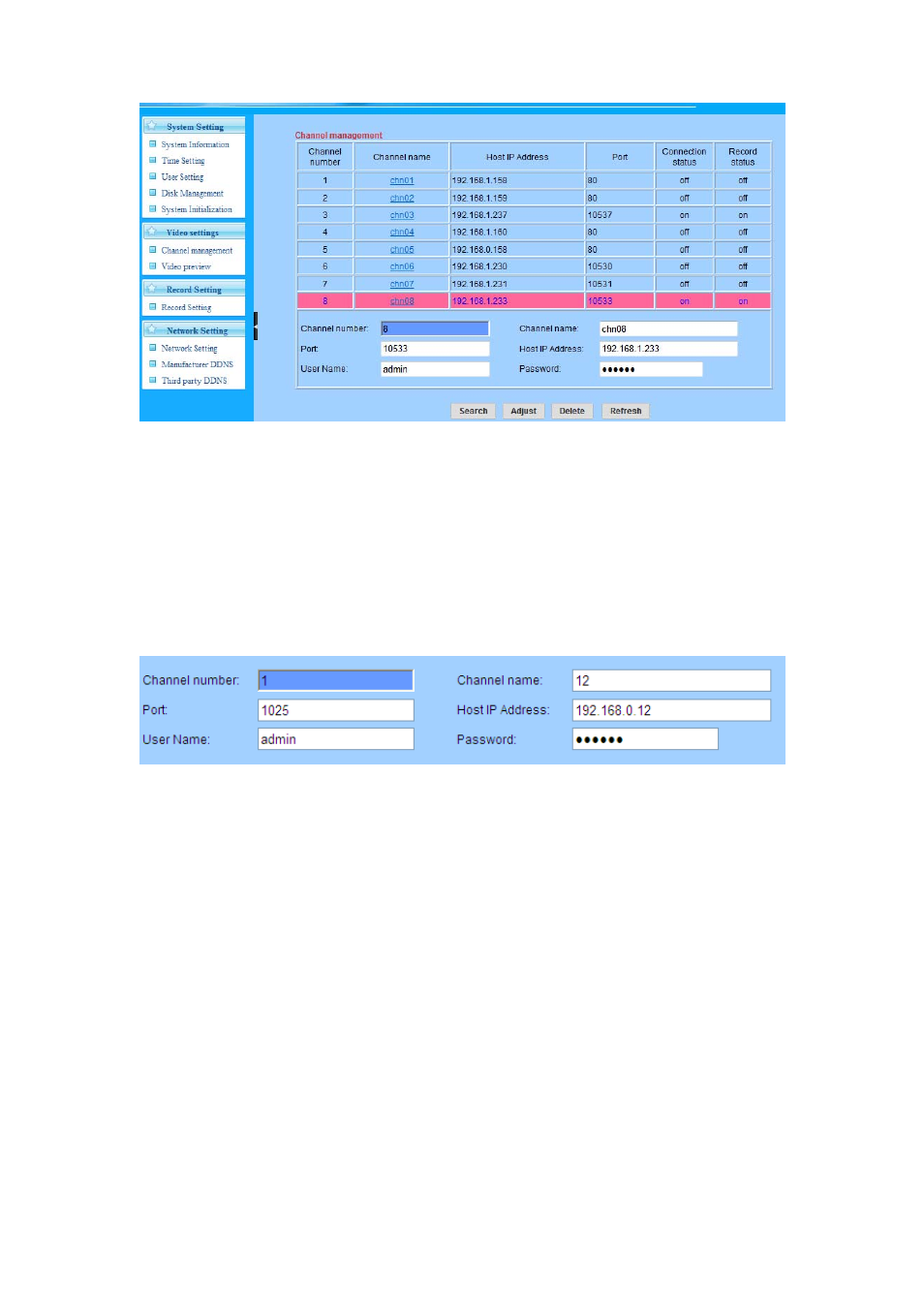

Figure 8
¾ Choose a channel from 1 to 8, can edit the channel information
manually. Click "adjust", and then add H series IP Camera to the
channel manually.
¾ Click "Search", it list all H series IP Camera in LAN, choose one
camera, add to channel.
¾ For assure all information precisely, please edit and confirm channel
name, host IP address, port, user name, password etc, click "adjust".
Example of Figure 9:
Figure 9
Tips : In Figure 8, the user can view the device connection and record status.
¾ If connection status is off, indicate that NVR is not connected to the IP
camera, so need to check if the host address, user name and
password are wrong, otherwise check if the IP camera is breakdown.
¾ If the record status is off, indicate that NVR is not recording for the
channel camera at present.
5.3.2 Video preview
Click video preview, can preview the real time video of the cameras, example
of Figure 10.
8
