WansView NVR901 - Manual (Page 12)

6.3 Play control button

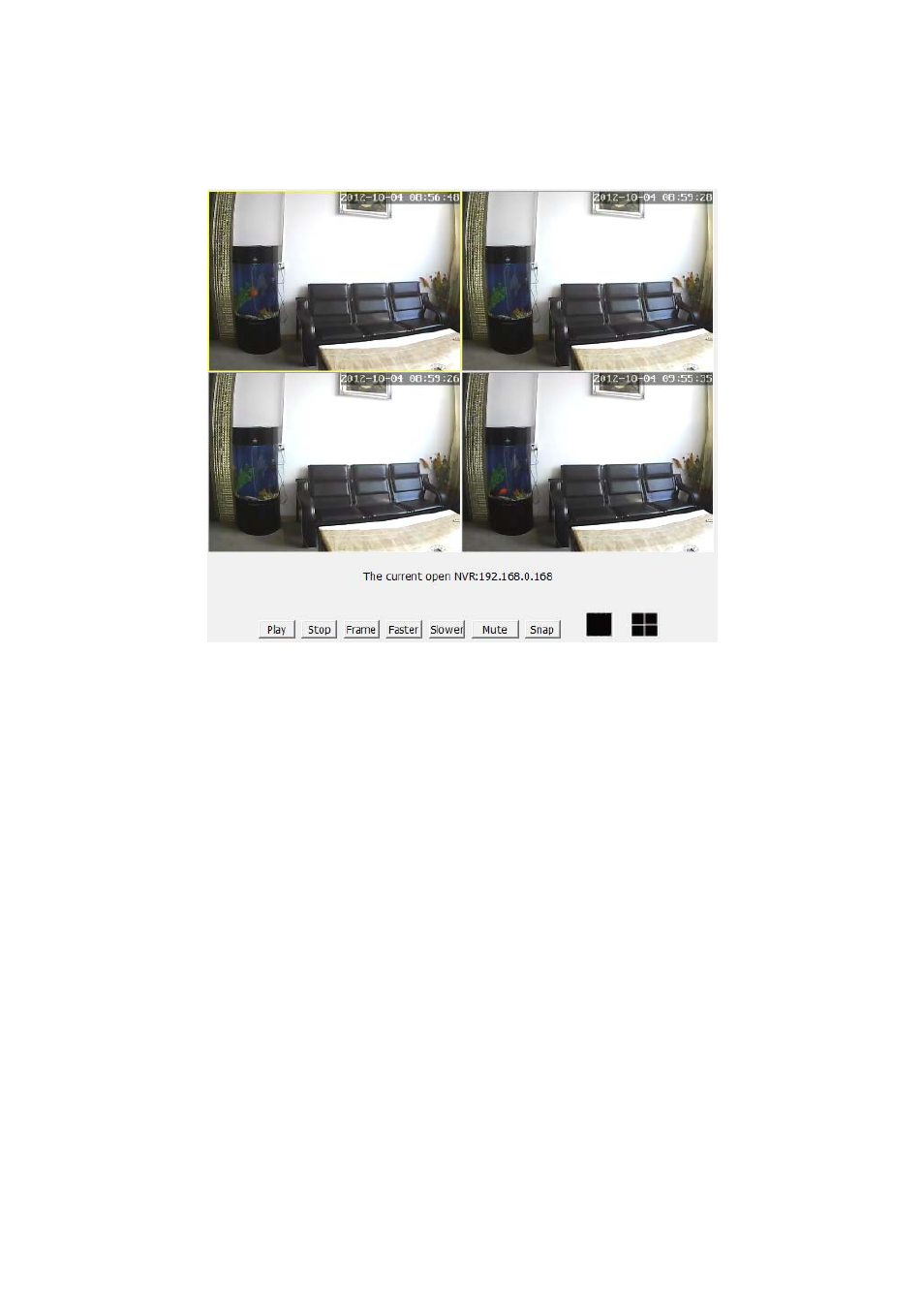

In Figure 15, you can select a play window, and then control the video play.
Figure 15
¾ During the play, click ‘Frame’ can play the video one by one, and click
once, play one frame;
¾ During the play, click ‘Faster’ or ‘Slower’ button can play video faster or
slower;
¾ Click ‘Mute’, will not sound in playback;
¾ Click ‘snapshot’, will save the snapshot picture to installation location
/Snap.
7 NVR Basic Parameters
¾ Chipset: HI3515
¾ Support 8 channels (Max.) 720p IP Camera for recording (Bit rate is
4M/ch）
¾ Support 4 channels (Max.) playback simultaneously
¾ Support 1 hard disk
¾ Max. Capacity for hard disk: 2TB
¾ Dimension:
221*212*45mm
¾ Weight: 0.7kg（without hard disk）
¾ Input Power: 12V, 2A
¾ Power: Max. 15W
12
