SAMPI MS-30 Meter - Manual (Page 2)

Model
Flange
size
Max nom.
Flow rate
Working
pressure
Net
weight
Dimensions A B C D
MS-30 3”
1325 l/min
(350 GPM)
10,5 bar
(150 PSI)
61,2 kg
(135 lbs)
mm 706 635 470 178
in 27.8 25 18.5 7
Dimensions E F G H I J K L M
mm 356 89 19 279 107 688 561 34 254
in 14 3.5 .75 11 4.2 27.1 22.1 3.3 10

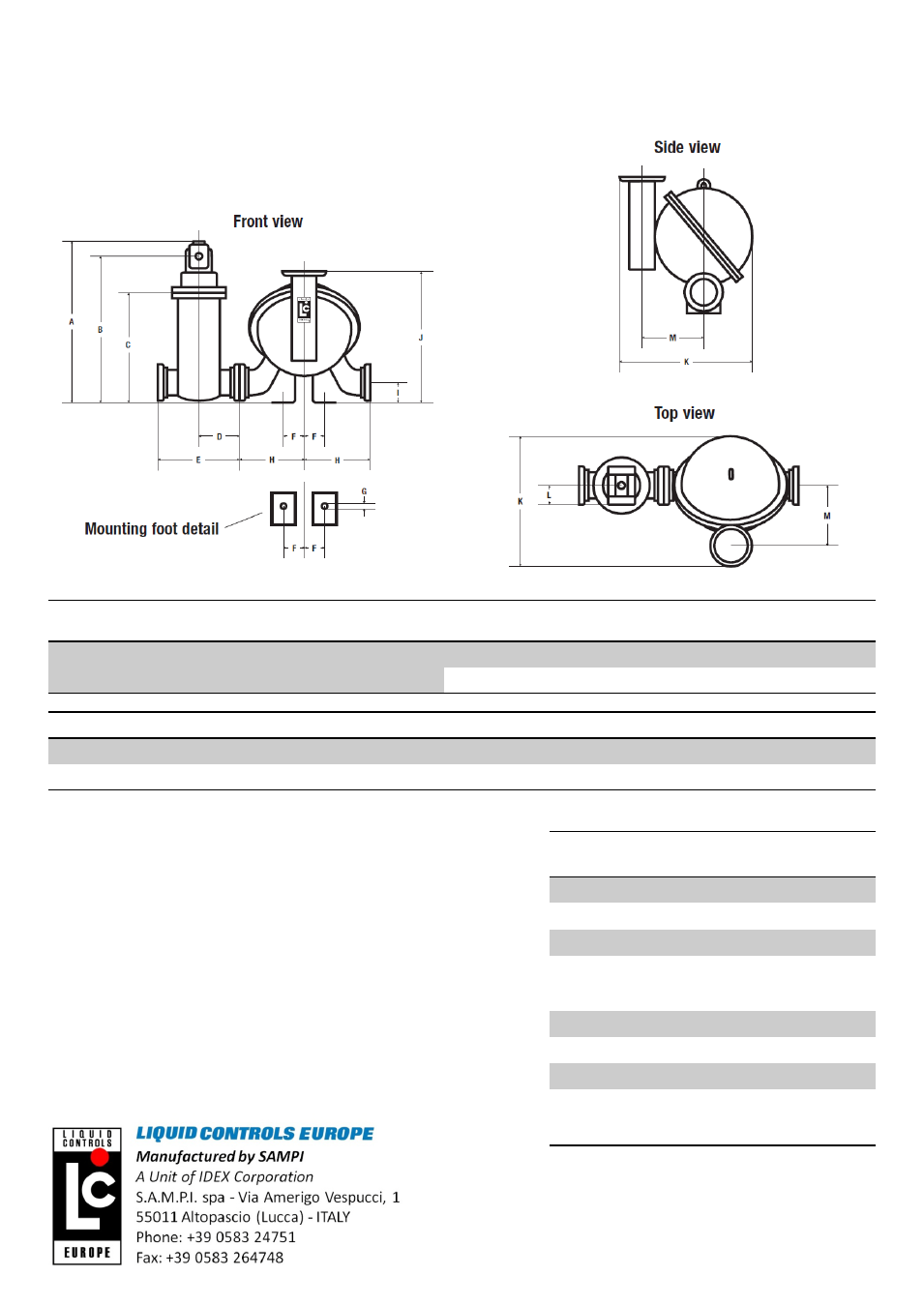

Dimensions: steel case flow meters
Note: Dimensions shown are not for construction use. Consult factory when certified
engineering prints are required.
Construction and application classes
LCE steel-case PD meters are suitable for metering a
broad range of products as listed below. The
appropriate meter class can be used to specify a
desired meter by using the table on the next page of
this publication.
Class Description
Bearing
Material
1 Refined petroleum products Ni-Resist
2 Aviation and jet fuel Ni-Resist
7 Chlorinated solvents Carbon
8
Acid pH liquids includes: nitric,
phosphoric, glacial acetic acids,
citric juices, vinegar
Carbon
10 LPG Carbon
14 Crude oil Ni-Resist
16 General solvents Carbon
37
Sodium Hydroxide solutions,
high sulfur crude oil, alkaline
pH liquids
Ni-Resist
