Straight Whip Antennas

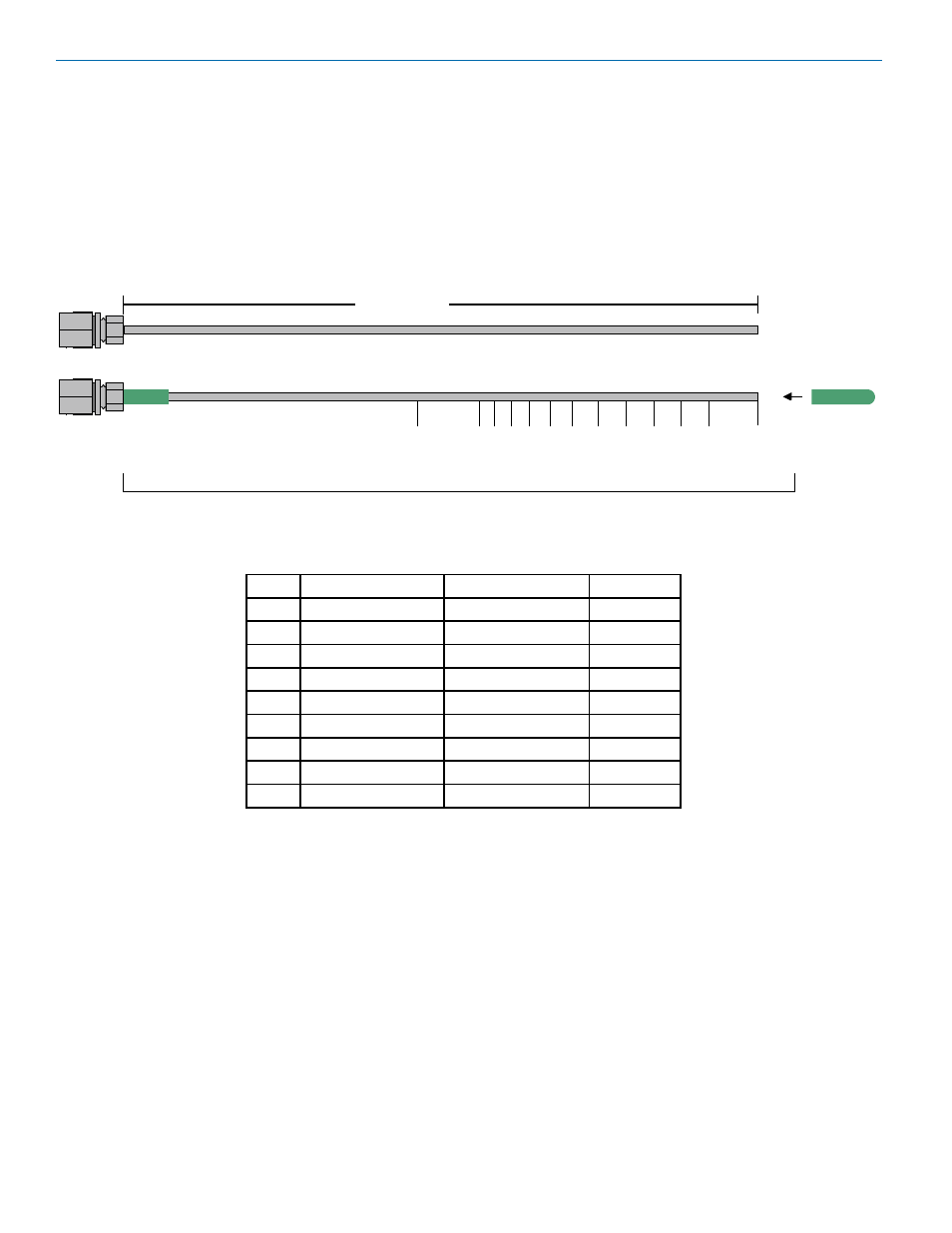

This is a full size cutting template used to cut the length
of the whip for a particular frequency. Lay the uncut
antenna on top of this drawing and trim the whip length
to the desired frequency.
After cutting the antenna to the desired length, mark the
antenna by installing a color cap or sleeve to indicate
the color listed in the table below
The supplied caps can be used several different ways:
1) A color cap on the end of the whip
2) A color sleeve next to the connector with a black
cap on the end of the whip (trim the closed end of
the colored cap off with scissors to make a sleeve).
3) A color sleeve and color cap (cut the cap in half
with scissors).
21 22 23 24 25 26 27 28 29 20 19
470 944
Note: Check the scale of your printout. This line should be 6.00 inches long (152.4 mm).
Whip Length
NOTE:
Not all Lectrosonics products are built on all of the blocks covered in
this table.
Factory supplied antennas precut to length include a label with the
frequency range. Label is not supplied with this kit.
470 470.100 - 495.600 Black w/ Label 5.67”
19 486.400 - 511.900 Black w/ Label 5.23”
20 512.000 - 537.500 Black w/ Label 4.98”
21 537.600 - 563.100 Brown w/ Label 4.74”
22 563.200 - 588.700 Red w/ Label 4.48”
23 588.800 - 614.300 Orange w/ Label 4.24”
24 614.400 - 639.900 Yellow w/ Label 4.01”
25 640.000 - 665.500 Green w/ Label 3.81”
26 665.600 - 691.100 Blue w/ Label 3.62”
944 944.100 - 951.900 Black-w/Label 2.62”
BLOCK FREQUENCY CAP/SLEEVE ANTENNA
RANGE COLOR WHIP LENGTH
