Super-Minature Belt Pack Transmitter

Rio Rancho, NM

17

Operating Notes

• The sensitivity to the remote

control varies with the trans-

mitter’s audio level setting

and the microphone used, but

it is always possible to make

it work with a sufficiently loud

remote signal at close range.

• If the transmitter is configured

to respond to the remote

control, it will do so even if

the buttons are locked.

• When the transmitter is

asleep, it can only be awak-

ened by the remote control,

or by removing and reinsert-

ing the battery.

• When the transmitter is

asleep, the PWR led blinks

green every few seconds.

• If a remote command is sent that would result in

the same display being shown again on the trans-

mitter (for example tuning to the channel already

displayed), a row of dashes is displayed briefly, as a

signal that the command was received, but it didn’t

change anything.

• If you are having trouble getting the transmitter to

respond, make sure you aren’t covering the speaker

with your thumb, and/or turn up the speaker volume

on the Loud page.

• If the RM is set to a different block number than

the transmitter and an attempt is made to set the

transmitter’s frequency in MHz, the command

will still work. The transmitter is simply set to the

corresponding channel in the correct block, with a

matching hexadecimal number.

• The audio signal from the RM will change the set-

tings of all transmitters within range. Experiment

with this to prevent accidental changes to another

transmitter during a production.

RM Quick Reference

Power On/Off

AUDIO+FREQ

Set SMQV audio level

Aud page (via AUDIO)

Sleep or Wake SMV

SLEEP/unSLP page (via AUDIO)

Lock or Unlock SMV

Loc/unLoc page (via AUDIO)

Adjust RM volume

Loud page (via AUDIO)

Set SMQV channel (hex) CH page (via FREQ)
Enable MHz display

b (block) page (via FREQ)

Set SMQV channel (MHz) 000.000 page (via FREQ)

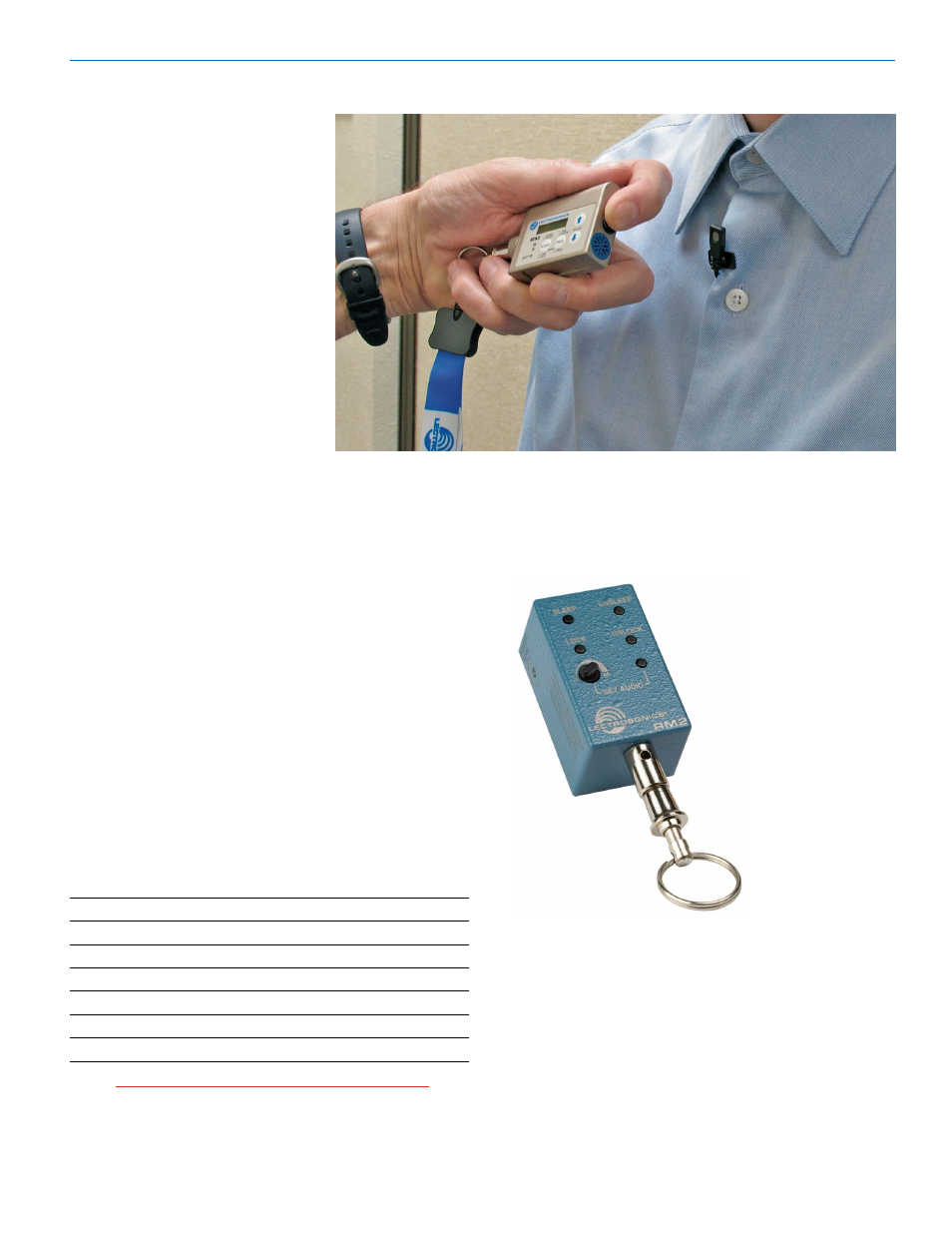

The RM should be held close enough to the microphone to

change the settings on the intended transmitter, and not be

loud enough to affect other transmitters nearby.

RM2 Remote Control

A lower cost alternative to the RM, this model provides

remote control of:

• Sleep/Unsleep
• Lock/Unlock
• Audio Level (gain)

This model operates on a “button cell” battery with a

recessed trim pot (screwdriver adjusted) for the speaker

level control.

Important: The remote control (RC) mode must

be enabled on your SM Series transmitter for

the RM to function with it. For instructions,

refer to page 7 of this publication.
