3.0 Verifying Basic Operation
The steps required to verify basic operation are:
1. Install system software and USB driver
2. Configure the communications port
3. Select and install a MAQ
®
20 Communications Module
4. Select and install a MAQ
®
20 Input or Output Module
5. Connect an input signal or an output measuring instrument to the module
6. Apply power to the MAQ
®
20 Data Acquisition System
The following sections detail these steps.

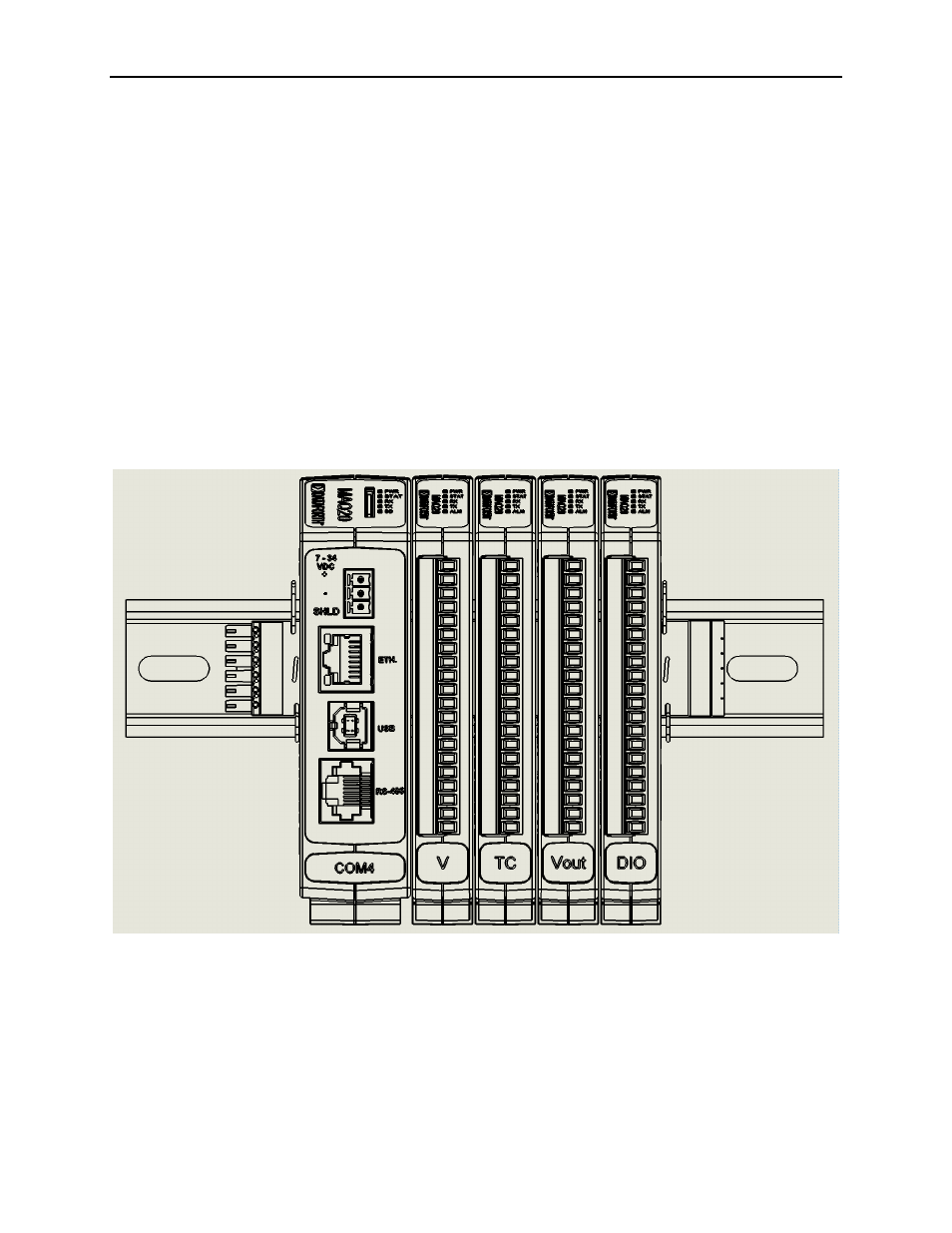

Figure 1: MAQ20 4-Module System
