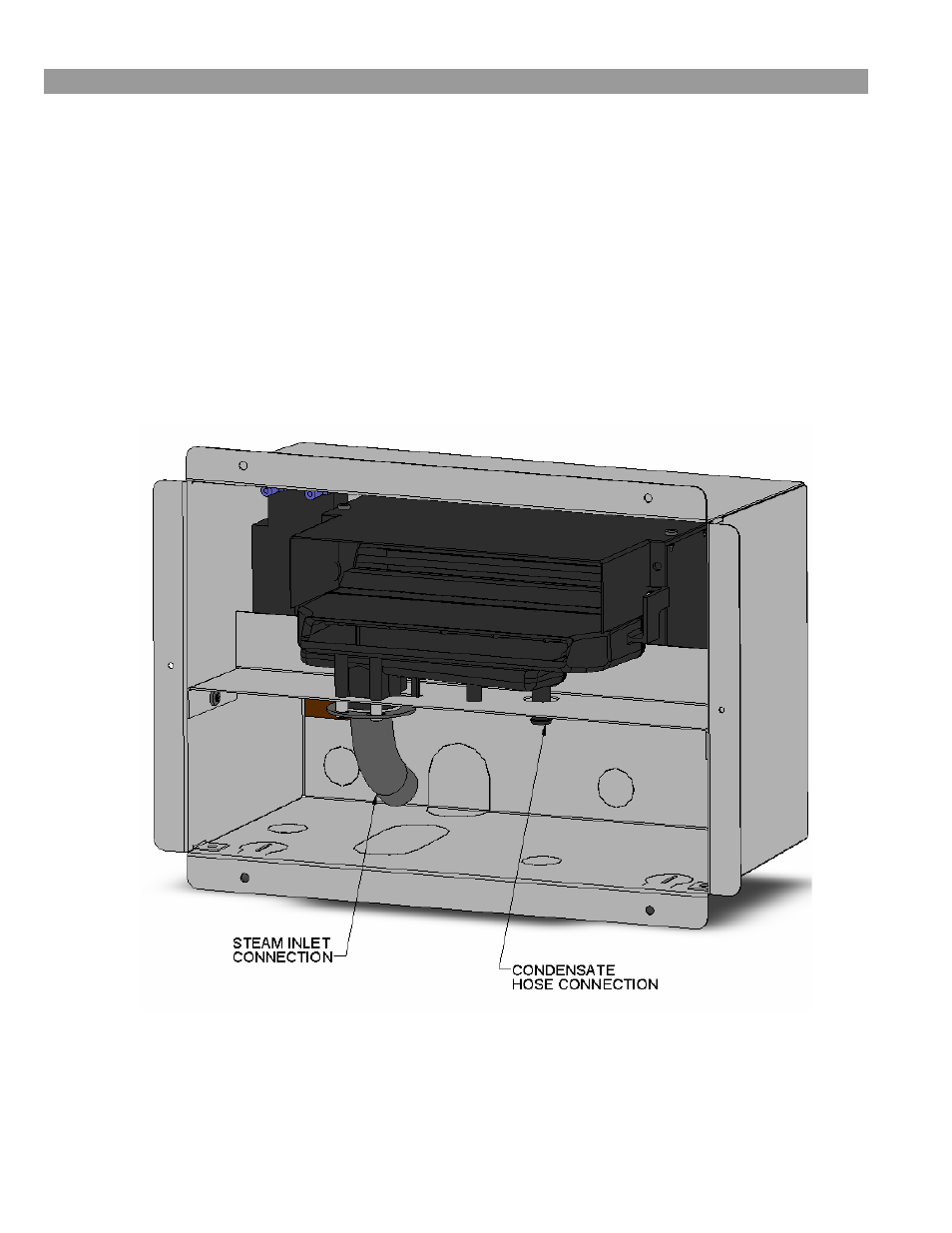

Fig 7.1.1
8. HOSE CONNECTIONS
Connect the steam hose to the stainless fitting located at the bottom of the manifold. The stainless
fitting should be inserted into the hose and secured using the hose clamp provided.
Connect the condensate hose to the molded hose barb fitting on the right. The condensate hose
needs to be trapped immediately under the blower housing or directly above the humidifier. A
condensate trap can be made using a 6” loop in the condensate hose.
Note:
1. Do not force the steam hose onto the stainless fitting; this will cause the manifold to
break. Apply some water to the inside of the hose and ease the hose onto the fitting.
2. For information on hose connections in the Elite Steam Humidifier, please see the
humidifier manual.
