7. ELECTRICAL CONNECTIONS
The RMB is fitted with a power supply terminal block with two terminals and a screw terminal
located on the RMB housing for connecting the ground wire. The power wires should be 16 gauge
or larger shielded cable with ground. Power wiring should be run through the electrical knockout in
the RMB and be supported by the screw-type strain relief (supplied) to prevent damage to the
terminal block.
The power will be supplied from the terminals F and INT FAN located on the back side of the
humidifier control module.
The power supply wire must enter the humidifier on the bottom or back then be secured in the
humidifier to prevent tension on the wire or connections. To access the wire connection points on
the back of the module, remove the steam cylinder. The connection points are covered by protec-
tive caps that must be removed. Use two spade connectors to make the connections to the F and
INT FAN terminals.
Note:
1. The power for the RMB unit is from the terminals on the BACK of the Control Module!
2. Electrical connections must be performed by qualified personnel in compliance with local
codes.

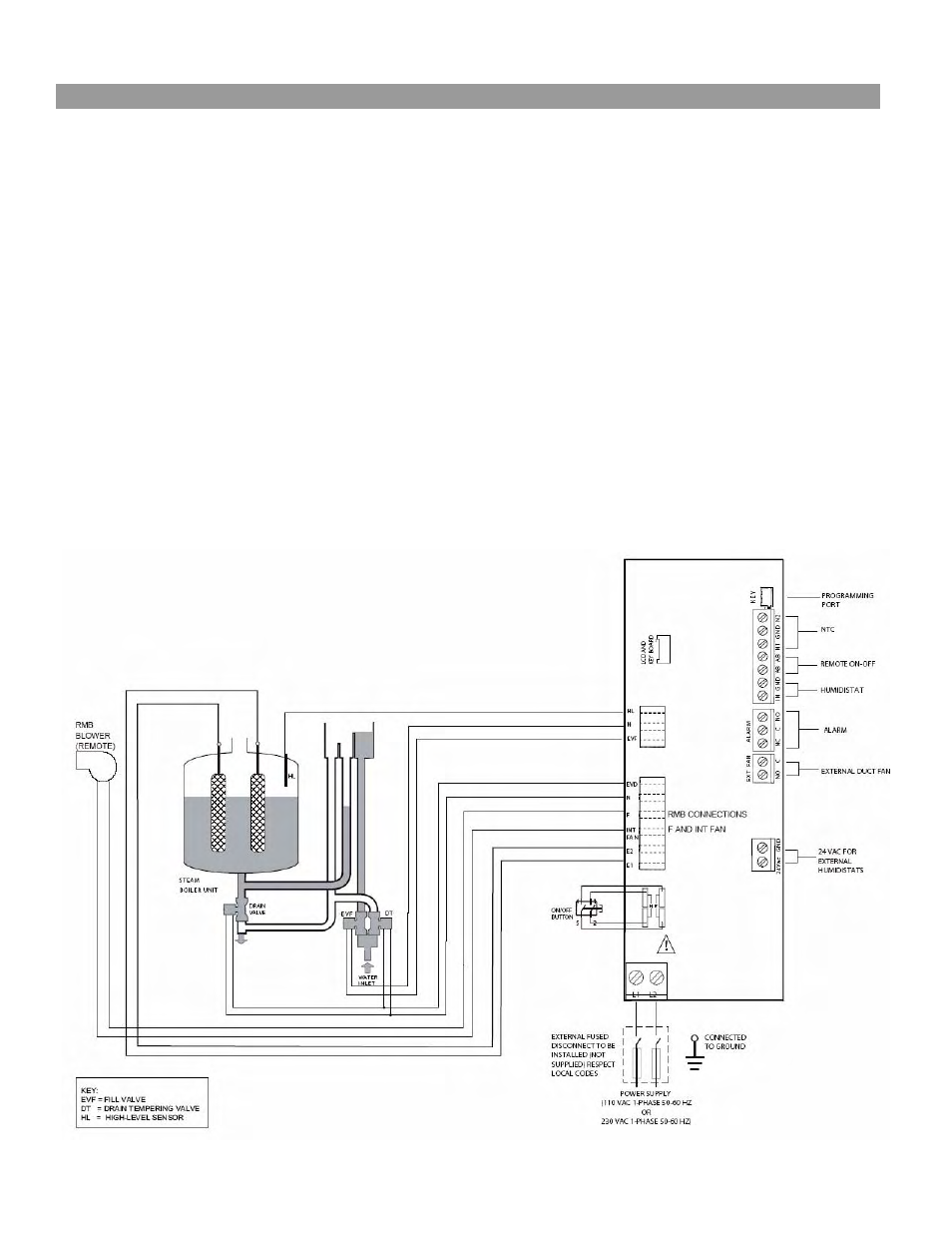

Fig 7.1
