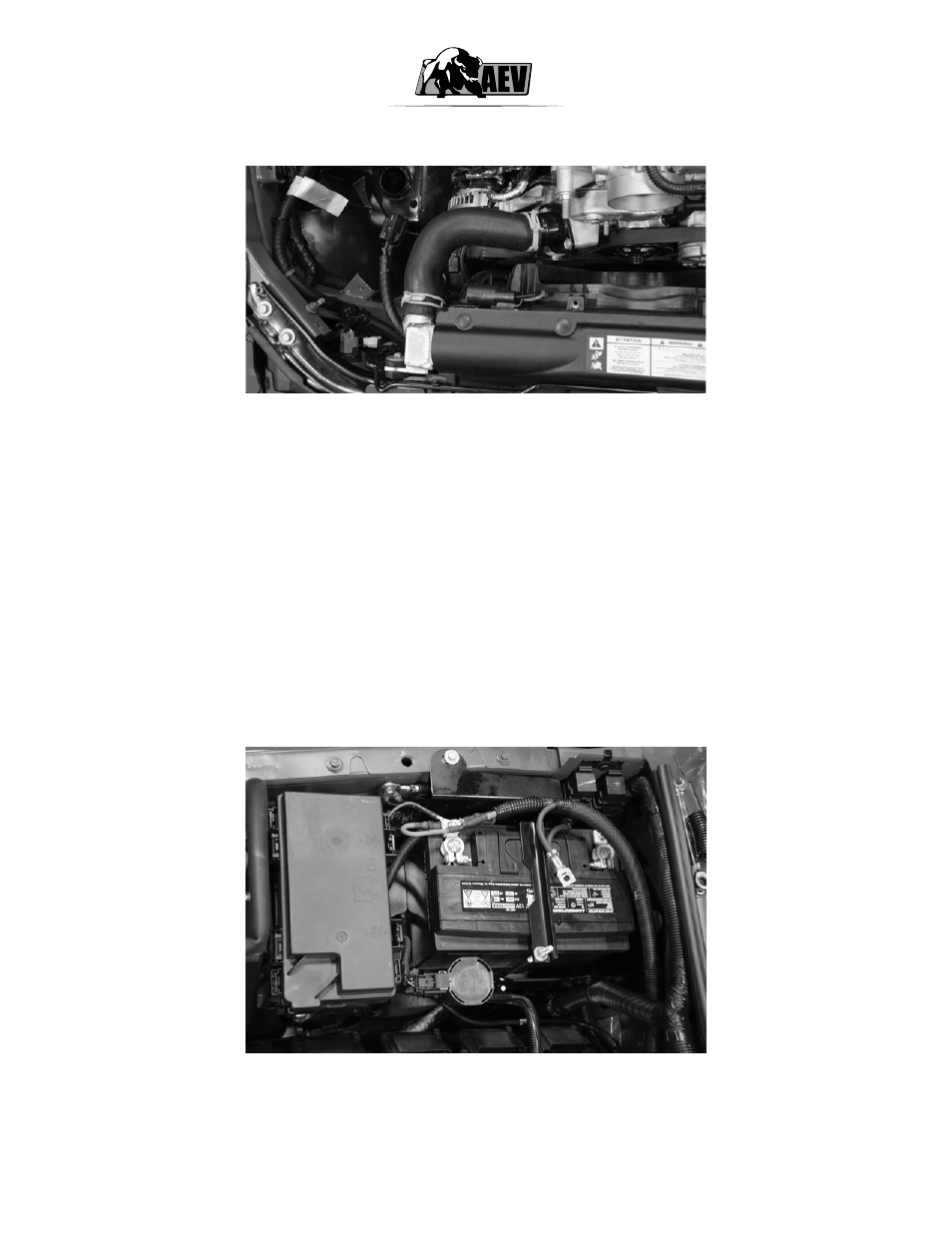

14. Trim and connect upper radiator hose using the AEV supplied spring clamp (fig 42).
Figure 42
15. Pre-install provided M6 u-nuts into the AEV supplied battery tray.
16. Connect 34-way connector at fire wall under the battery tray location.
17. Install the battery tray.
18. Install the head to fire wall ground strap.
19. Install the seal onto the AEV air box and install air box into the Jeep.
20. Plug in the fan.
21. Install the TIPM tray.
22. Install battery.
23. Connect the battery harness LEAVE THE NEGATIVE BATTERY CABLE OFF (fig 43).
Figure 43
24. Install the purge solenoid.
