AcuBrite 19-Nav Manual
MENU KEY

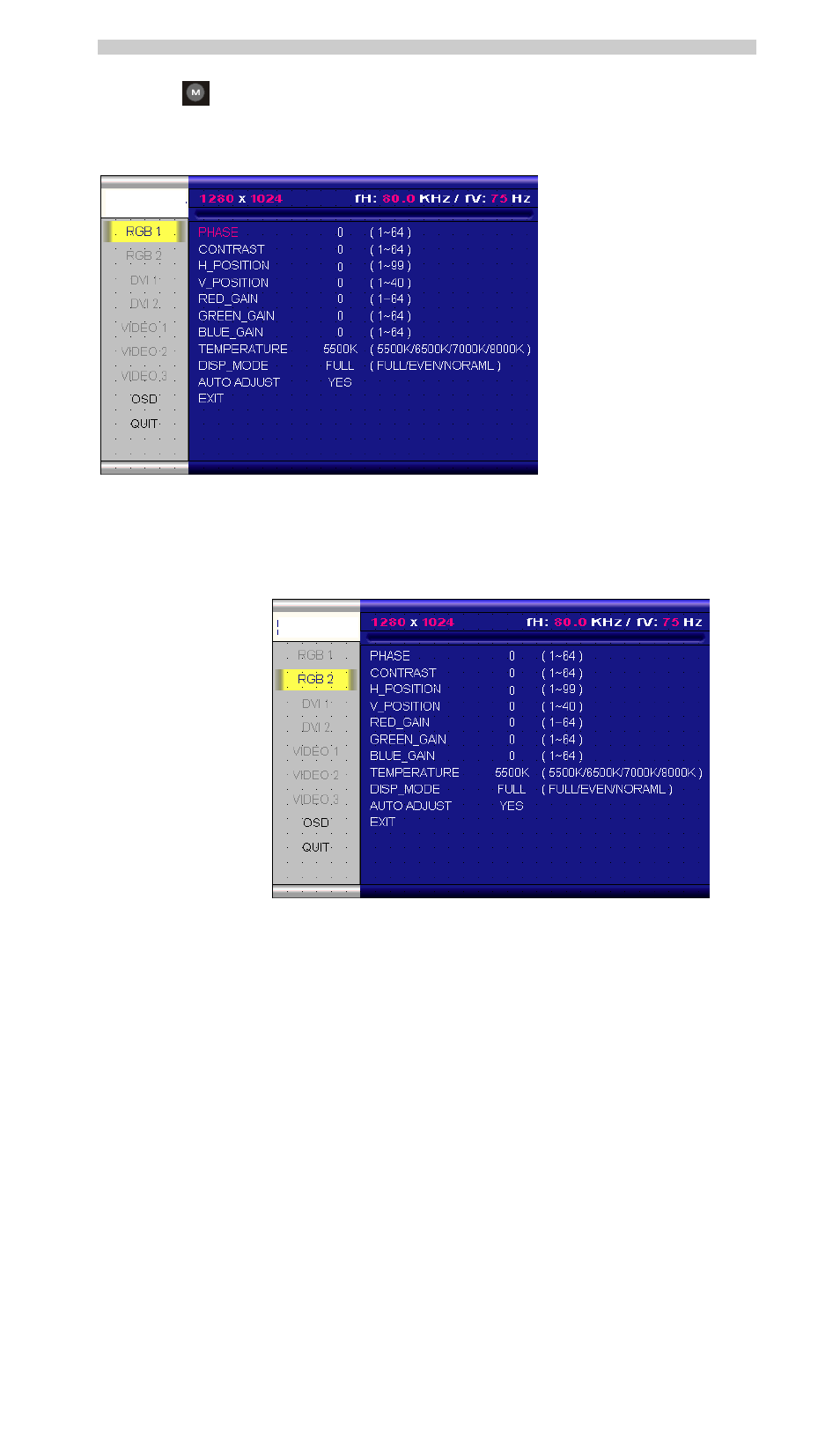

When you press “MENU” KEY, the Acubrite 19-Nav OSD main menu screen will appear as below:
If you release the “MENU” KEY for 30 seconds without any action, the menu OSD screen will disappear
automatically. You can also choose “QUIT” and then press “MENU” KEY to exit this OSD menu screen.
RGB1 & 2’s setting screen:
RGB Setting Item Description:
 PHASE Horizontal Sampling Phase Adjustment
 CONTRAST Contrast Adjustment
 H_POSITION Horizontal Screen Adjustment
 V_POSITION Vertical Screen Adjustment
 R_LEVEL Red Color level Adjustment
 G_LEVEL Green Color level Adjustment
 B_LEVEL Blue Color level Adjustment
 TEMPERATURE Color Temperature Adjustment
 DISP
MODE
FULL Full Screen
EVEN Half Screen
NORMAL Keep normal aspect ratio
 ·AUTO ADJUST Auto adjustment
 ·EXIT Quit from current setting
Page 29
