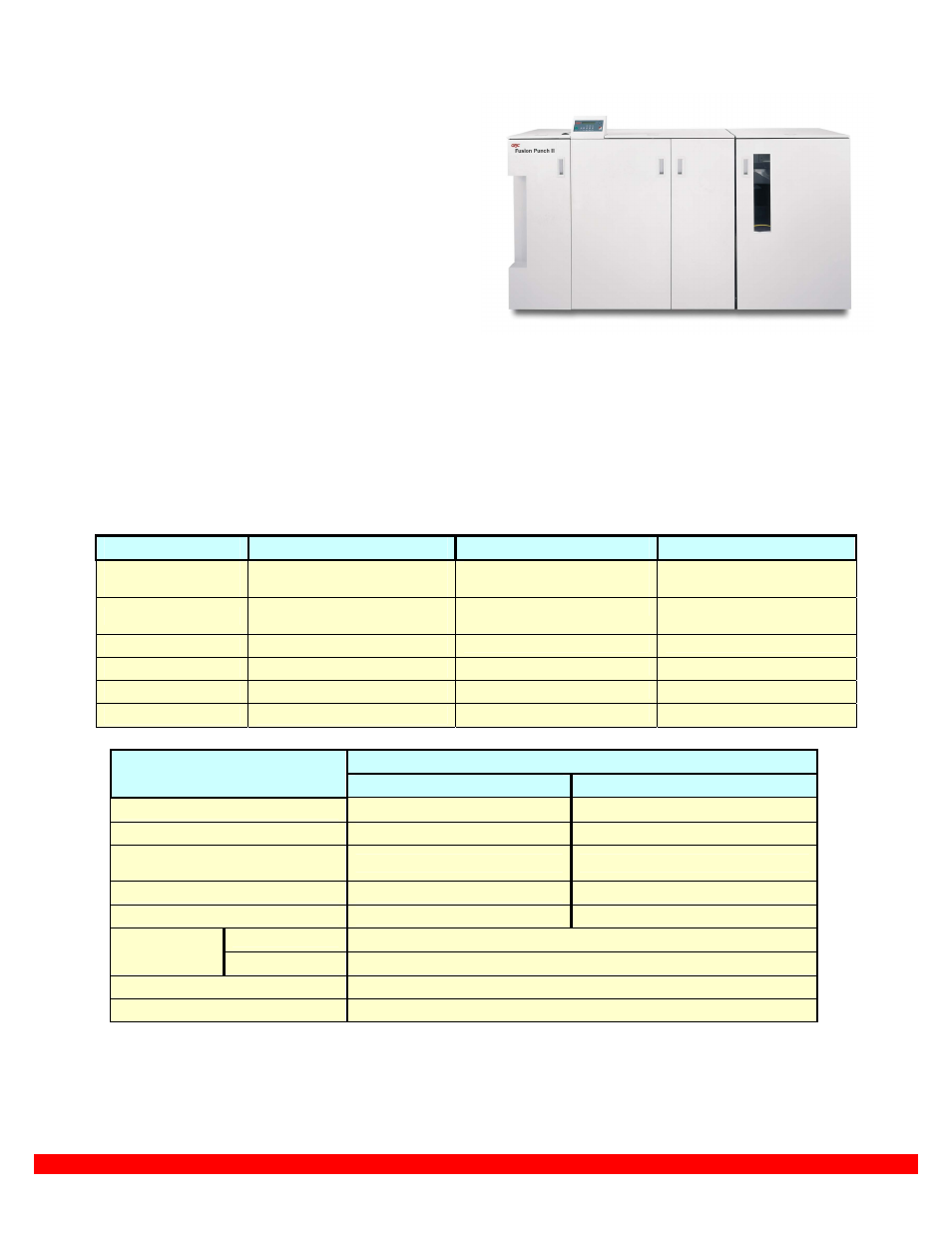

GBC Fusion Punch II with
Offset Stacker
The GBC Fusion Punch ll provides inline printer
punching combining printing and punching into one
step. Single sheets are punched and emerge ready to
be finished into lay flat documents. These types of
documents are typically bound with coil, wire or plastic
comb binding and will lay flat when opened.
A wide variety of hole punch patterns are available.
The die sets are lightweight and do not require setup
adjustment time when changed. The operator can easily replace them. The attached stacker can offset stack
up to 2,500 sheets preparing each document for immediate binding. The Fusion Punch II can also be
equipped with an optional Bypass Stacker. This allows the operator to empty one stacker while the other
stacker is in use.
A Finisher Transport Module is required for in-line connectivity to the printer.
Please refer to the GBC Fusion Punch II Solutions Planning Guide for further site planning information,
system dependencies, limitations, valid configurations and device specifications.
Dimensions GBC Fusion Punch II Bypass Stacker Offset Stacker
Width x Depth x
Height
54” x 32 ” x 46 ”
(1372 mm x 813 mm x 1168 mm)
27” x 32” x 46”
(686 x 813 x 1168 mm)
27” x 32 ” x 46”
(686mm x 813mm x 1168mm)
Input Height
34” (860mm)
40.3” (1024mm)
NA NA
Weight 620 lbs. (281 kg) 520 lbs (236 kg) 270 lbs (123 kg)
Weight - Shipping 920 lbs (471 kg) 720 lbs (326 kg) 470 lbs (213 kg)
Clearance: Operator Minimum 24 ” in front of module Minimum 24” in front of module Minimum 24 ” in front of module
Clearance: Service Minimum 36 ” on all sides Minimum 36” on all sides Minimum 36 ” on all sides
GBC Fusion Punch II
Electrical & Environmental
Minimum Maximum
Temperature Range 41 ° F (40° C) 104 ° F (50° C)
Humidity Range 30% RH 95% RH
Heat Output
Punch & Stacker
1198 btu/hr. (115 V 60 Hz) 2150 btu/hr. (230 V 50 Hz)
Altitude 3280ft (1000m)
Sound Emission (with stacker) 64.7 dBs (Idling) 73.7dBs(Running, Punch & Stacker)
Punch 115VAC, 60 Hz, 4.7A (230VAC, 50Hz, 6.8A) Power
- Dedicated outlet
recommended
Stacker 115VAC, 60 Hz, 1.0A (230VAC, 50Hz, 0.25A)
Certification US/Canadian approval by CSA. GS mark by TUV Product Services
Compliance CE for European Union requirement
