28
CONNECTIONS

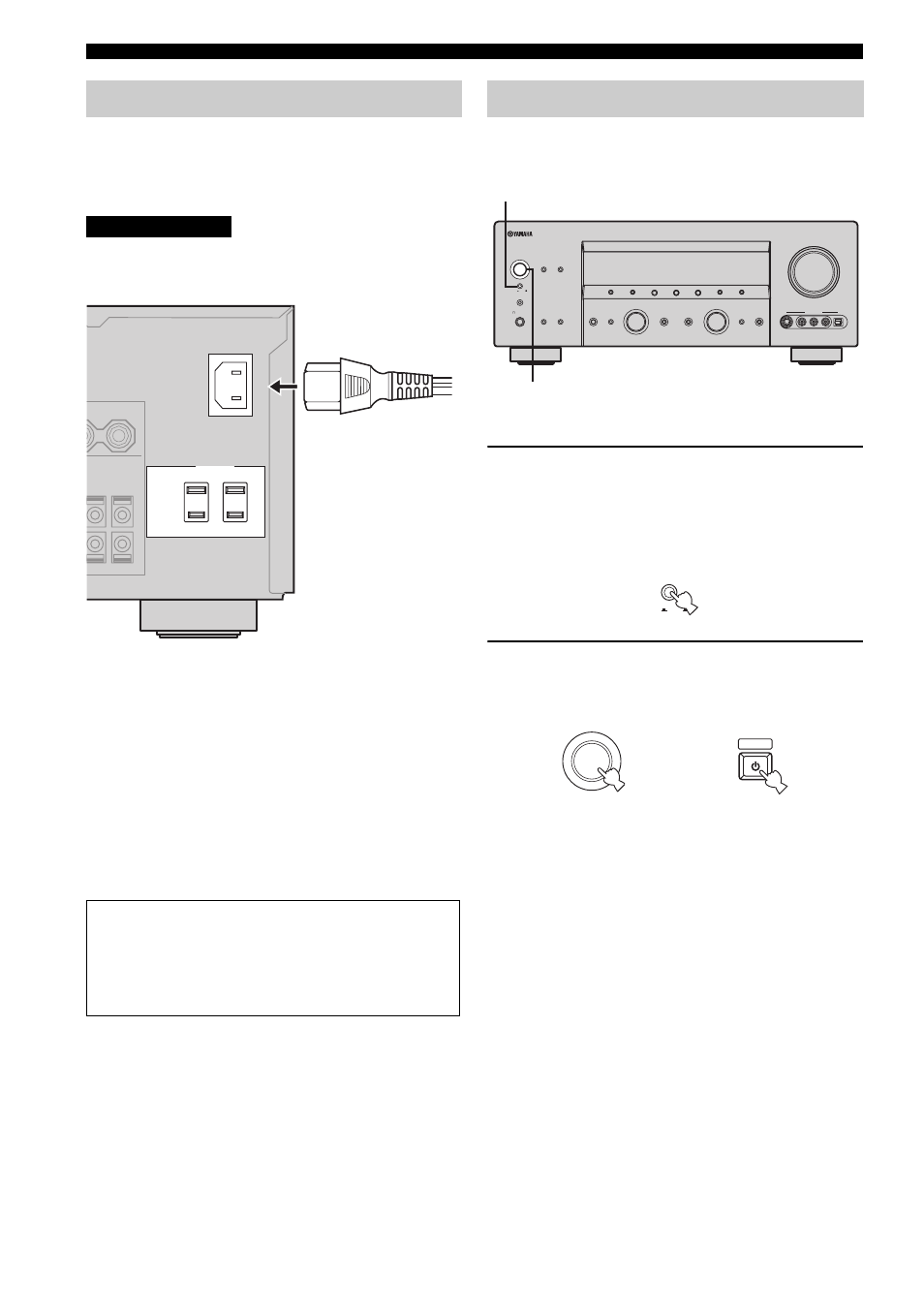

■ Connecting the AC power cable
Plug the supplied AC power cable into the AC inlet after
all other connections are complete, then plug the AC
power cable to an AC wall outlet.
Use the supplied AC cable. Do not use other AC power cables as
doing so may result in fire hazard or electrical shock.
■ AC OUTLETS (SWITCHED)
Use these 2 outlets to supply power to any connected
components. Connect the AC power cables of your other
components to these 2 outlets. Power to these 2 outlets is
supplied when the main room, Zone 2 or Zone 3 is turned
on. However, power to these 2 outlets is cut off when the
main room, Zone 2 and Zone 3 are turned off or when
MASTER ON/OFF on the front panel is pressed and
released outward to the OFF position. The maximum
power or the total power consumption of the components
that can be connected to these 2 outlets is 100 W.
When all connections are complete, turn on the power of
this unit.
1
Press MASTER ON/OFF on the front panel
inward to the ON position to turn on the
power of this unit.
• Only this unit is turned on.
• Zone 2 and Zone 3 are set to the standby mode.
2
Press MAIN ZONE ON/OFF on the front panel
(or STANDBY on the remote control) to set
this unit to the standby mode.
Connecting the power cable
CAUTION
Memory back-up
The memory back-up circuit prevents the stored data
from being lost. However, the stored data will be lost
in case the power cord is disconnected from the AC
wall outlet for more than one week.
AC OUTLETS
AC IN
100W MAX.TOTAL
SWITCHED
(U.S.A. model)
Turning on and off this unit
VOLUME
EDIT
SEARCH MODE
CATEGORY
PRESET/TUNING
MAN'L/AUTO FM
MEMORY
AUTO/MAN'L
DISPLAY
TUNING MODE
FM/AM
l PRESET/TUNING/CH h
A/B/C/D/E
AUDIO SELECT
TONE CONTROL
STRAIGHT
EFFECT
PURE DIRECT
ZONE CONTROL
SPEAKERS
PHONES
SILENT CINEMA
OPTIMIZER MIC
ON/OFF
ON/OFF
ON :OFF
ON/OFF
MAIN ZONE
MASTER
B
A
ZONE 2
ZONE 3
MULTI CH
INPUT
INPUT
PROGRAM
S VIDEO
VIDEO
OPTICAL
L AUDIO R
VIDEO AUX
2,3
1,4
(U.S.A. model)
MASTER
ON
OFF
ON/OFF
STANDBY
or
Front panel
Remote control
