15
CONNECTIONS
PREP
ARA
TION

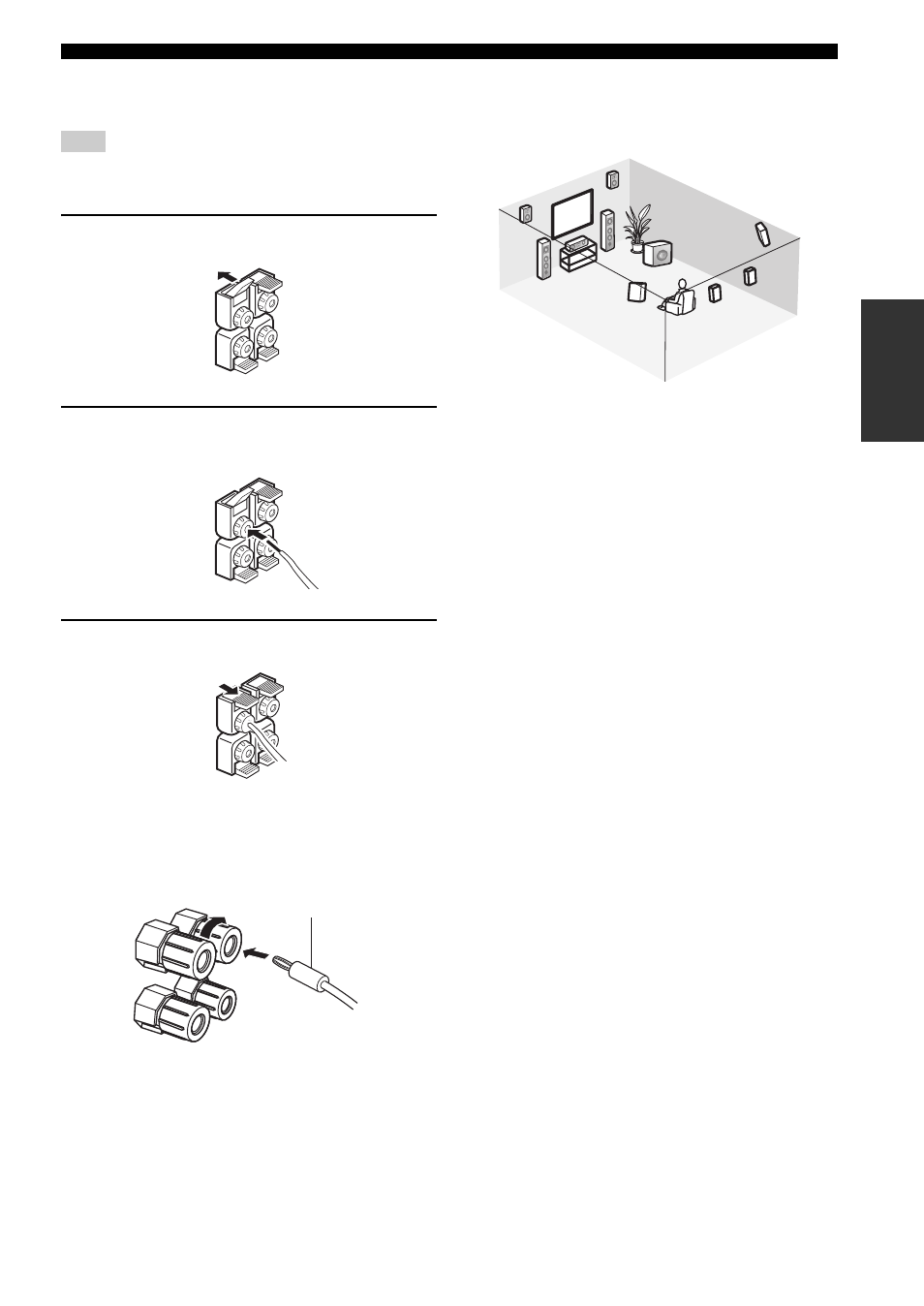

PRESENCE/ZONE 2(3) terminals
Connect presence speakers to these terminals.
You can also use these terminals to connect the Zone 2 speakers
(see page 103).
1
Open the tab.
2
Insert one bare wire into the hole of each
terminal.
3
Return the tab to secure the wire.
■ Connecting the banana plug
(With the exception of U.K., Europe and Asia models)
First, tighten the knob and then insert the banana plug
connector into the end of the corresponding terminal.
y
You can also use banana plugs with the PRESENCE/ZONE 2(3)
speaker terminals. Open the tab, then insert one banana plug
connector into the hole of each terminal. Do not attempt to close
the tabs after connecting the banana plugs.
■ Speaker layout
Refer to the following illustration as to where to place
each speaker in your listening room.
1 Subwoofer
2 Front right speaker
3 Front left speaker
4 Center speaker
5 Surround back right speaker
6 Surround back left speaker
7 Surround right speaker
8 Surround left speaker
9 Presence right speaker
10 Presence left speaker
Note
Banana plug
(With the exception of U.K., Europe and Asia models)
1
2
3
4
5
6
9
10
8
7
