United States Stove Company 1800GC User Manual

Page 10

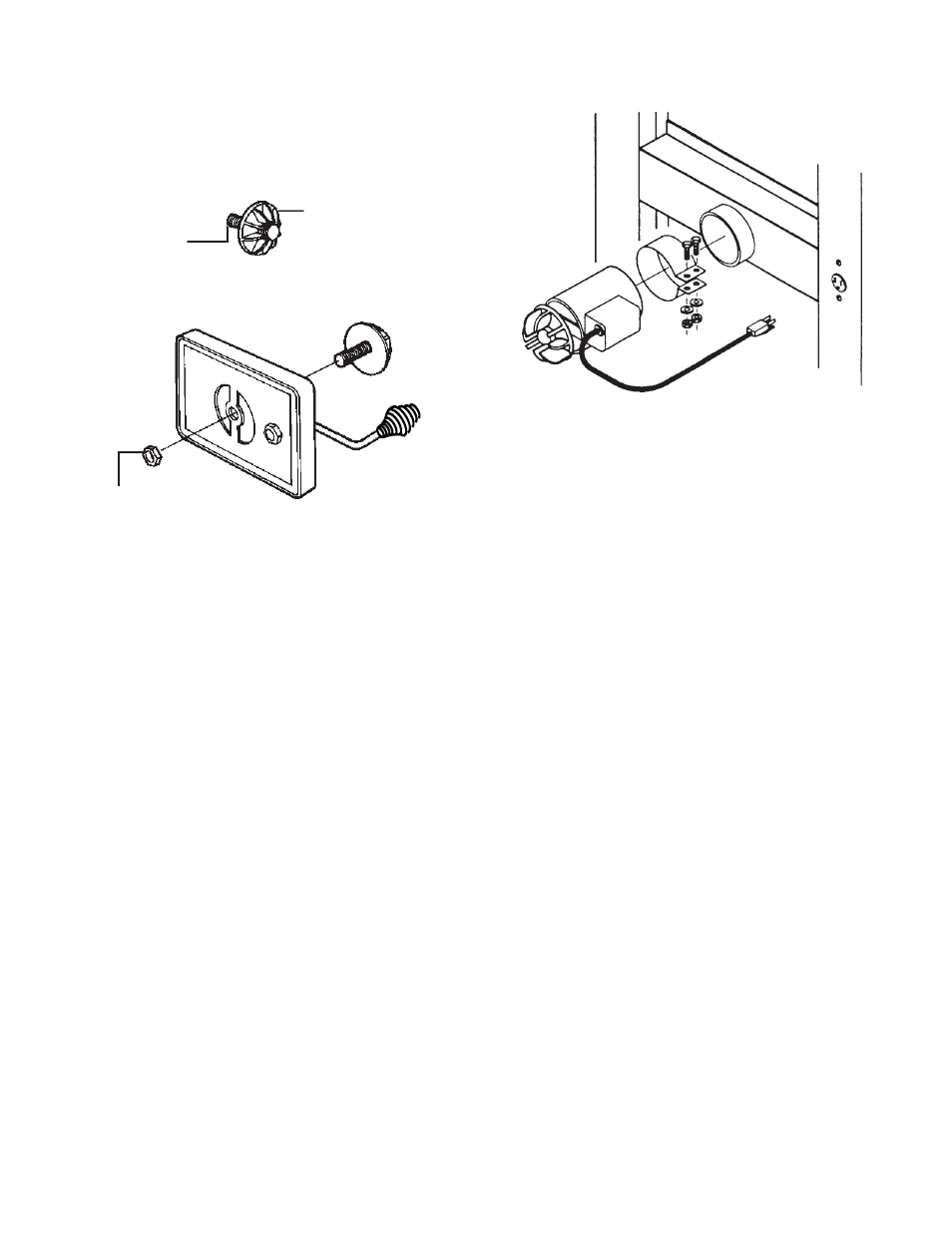

SPIN DRAFT CAP

1/2" X 2-1/2"
CARRIAGE
BOLT

1/2" LOCK NUT

INSTALLING ASH DOOR SPIN DRAFT

1. Screw spin draft onto 1/2" x 2-1/2" carriage bolt.

2. Screw spin draft and bolt assembly into ash door allowing

approximately 1/2" of the bolt to extend beyond the inside
of the door.

3. Secure bolt in place with 1/2" locking nut.

MOUNTING PROCEDURE FOR

MOTORIZED NATURAL DRAFT

DRAFT
TUBE
CLAMP

MOTORIZED NATURAL DRAFT

1. Using (2) 1/4" x 1" bolts, lock washers and nuts,

attach draft to furnace with draft tube clamp.

2. Plug draft power cord into receptacle on front of

furnace.

10
