United States Stove Company 6039 - Manual (Page 23)

USSC 23
4
3
1
5
6
7
2
9
8
10
2
3
1
6
4
5
Key Part No. Descritption Qty.
6 88087 Gasket, Glass (1 x 3/16) 4 ft
7 891131 Glass Ceramic 1
8 25464 Retainer, Top Glass 1
9 25465 Retainer, Bottom Glass 1
10 83202 Machine Screw 4
Key Part No. Descritption Qty.
1 25459 Feed Door 1
2 25097B Handle, Door 1
3 83506 Roll Pin, 3/8 x 1-1/4 1
4 89574 Handle, Spring (Gold) 1
5 88112 Gasket, 1/2” Sq. Rope 5 ft
Parts List
Parts Diagrams and Parts Lists
2
1
3
4
Key Part No. Descritption Qty.
1 25476 Leg, Cast Iron 4
2 25425 Guide Rail, Ash Pan 2
3 69483B Ash Pan Weldment 1
4 891138 Handle, Brass 1
Parts List

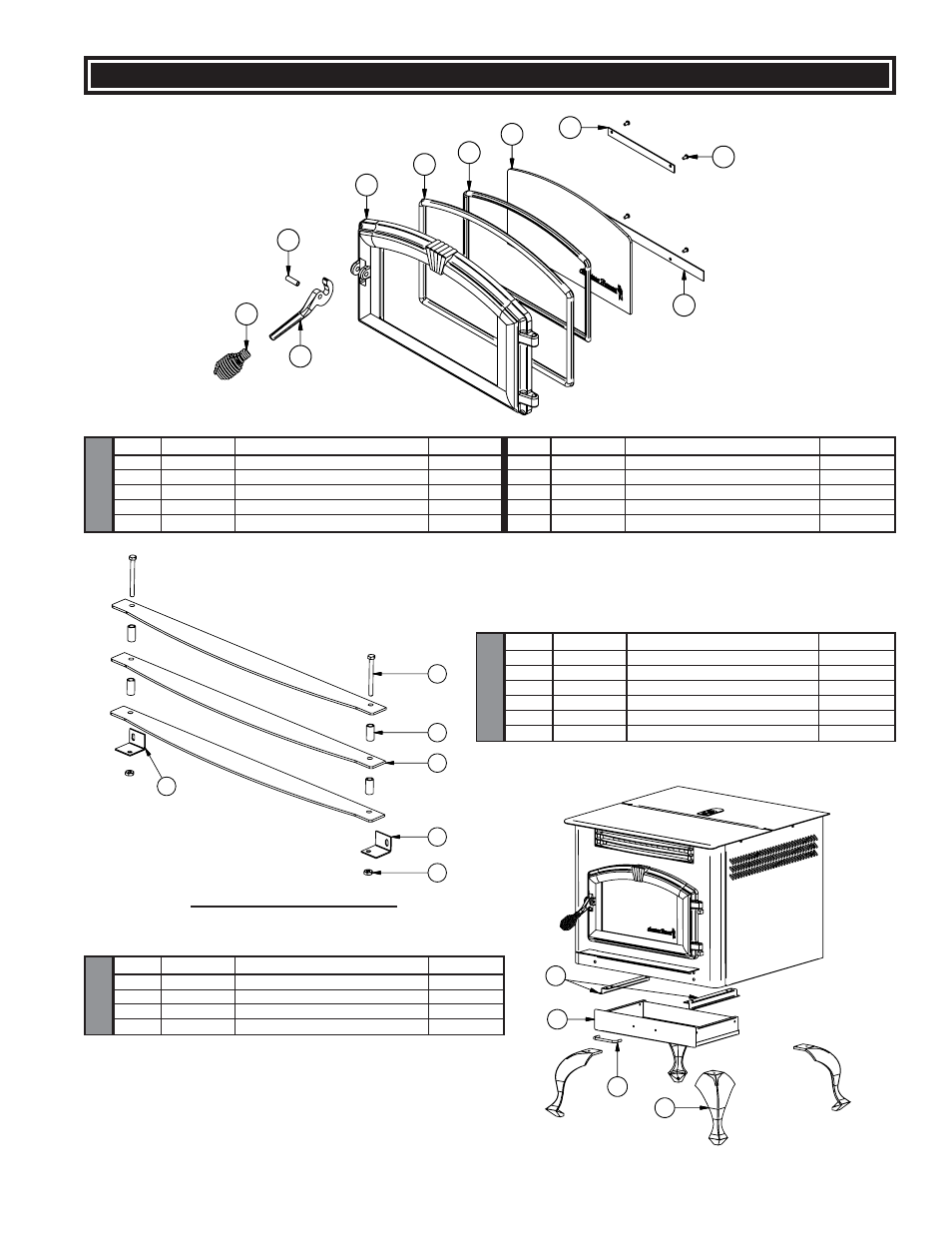

6039T Parts Diagram & List
NOTE:
For internal parts, cabinet parts, etc. see pages 21-22
Key Part No. Descritption Qty.
1 86623 Louver 3
2 83531 Screw, 10-24UNC x 2” long 2
3 83532 Spacer 4
4 83295 Nut, 10-24UNC 2
5 25444 Bracket, Louver (Left) 1
6 25445 Bracket, Louver (Right) 1
Parts List
Louver Assembly (Part No.: 69497MB)
