United States Stove Company 6039 User Manual
Page 11
USSC
11
Termination Cap
Clean Out Cover
Tee
Wall Thimble
6” Min.
Non Combustible Hearth Plate
Support Bracket
9” Min.

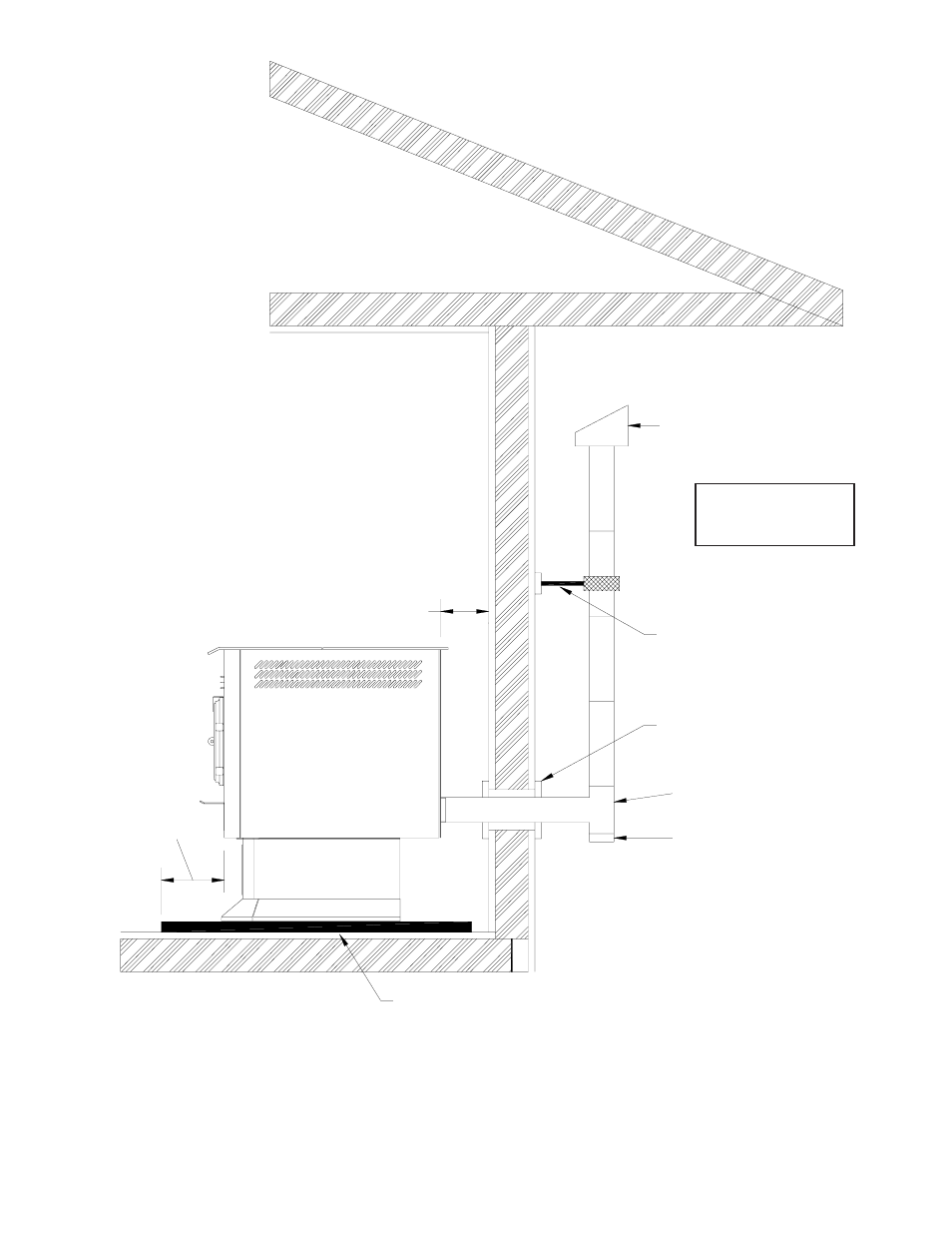

THROUGH THE WALL, VERTICAL PIPE INSTALLATION WITH TERMINATION CAP
The Hearth Pad is not required under the unit if the floor is noncombustible but is required 6 inches (152mm) beyond the
front of the unit and 6 inches (152mm) beyond each side of the door if the floor is a combustble floor. wood flooring, carpet,
linoleum, etc.
NOTE:
Vertical Pipe must be
4” PL Above 4’
