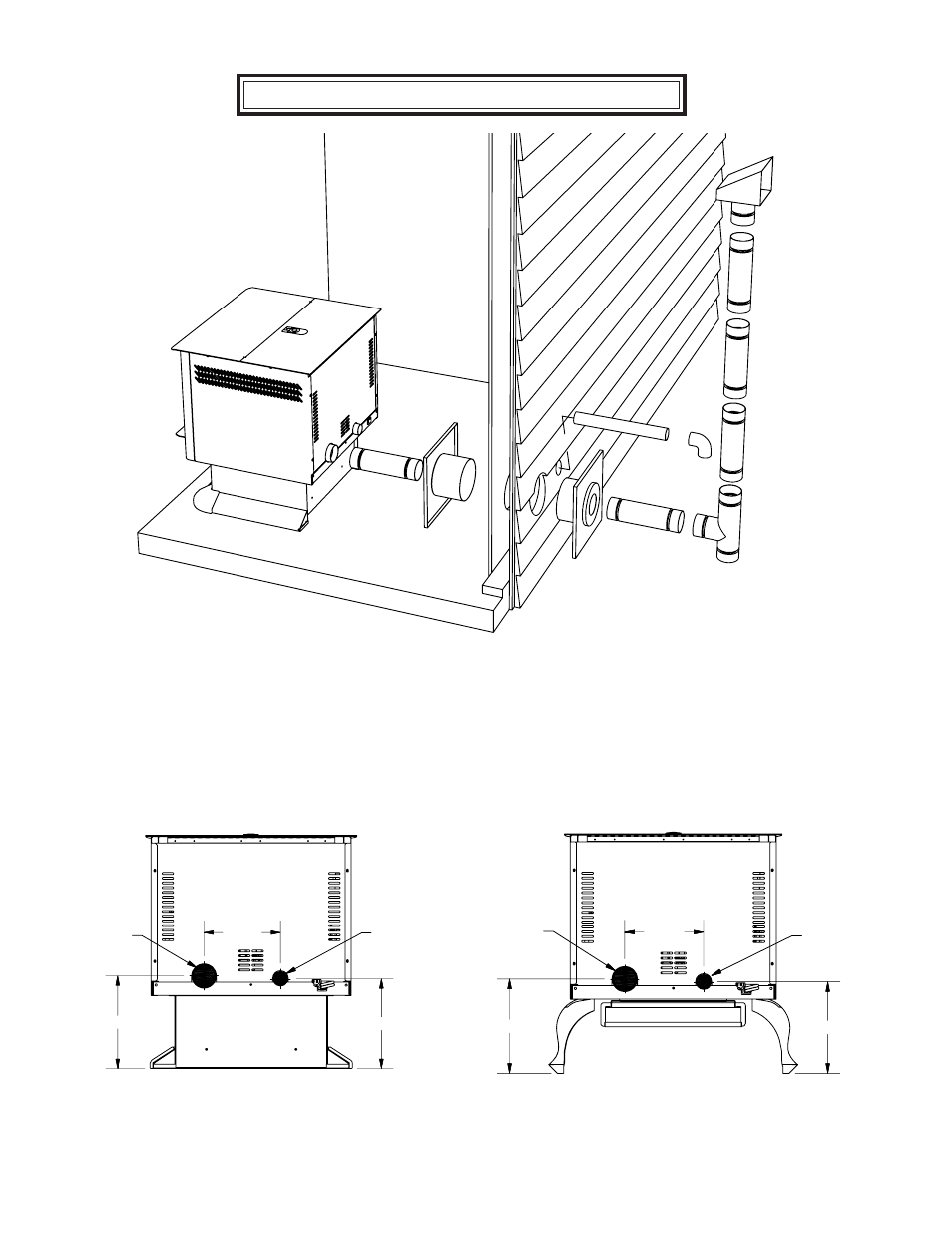

Note: Always check dimensions on unit before cutting hole in wall
3’ Minimum
Vertical Pipe
Dimensional tolerance
±0.25”
12 1/8
11 3/4
10 1/16
EXHAUST OULET
3" DIA.
COMBUSTION
AIR INTAKE
1 7/8" DIA.
10 1/16
11 5/8
12
EXHAUST OUTLET
3' DIA
COMBUSTION
AIR INTAKE
1 7/8" DIA
6039 - PEDESTAL UNIT
6039T - LEG UNIT
