Page 36: Ethernet -5
Chapter 3
I/O Information
© National Instruments Corporation
3-5
Ethernet

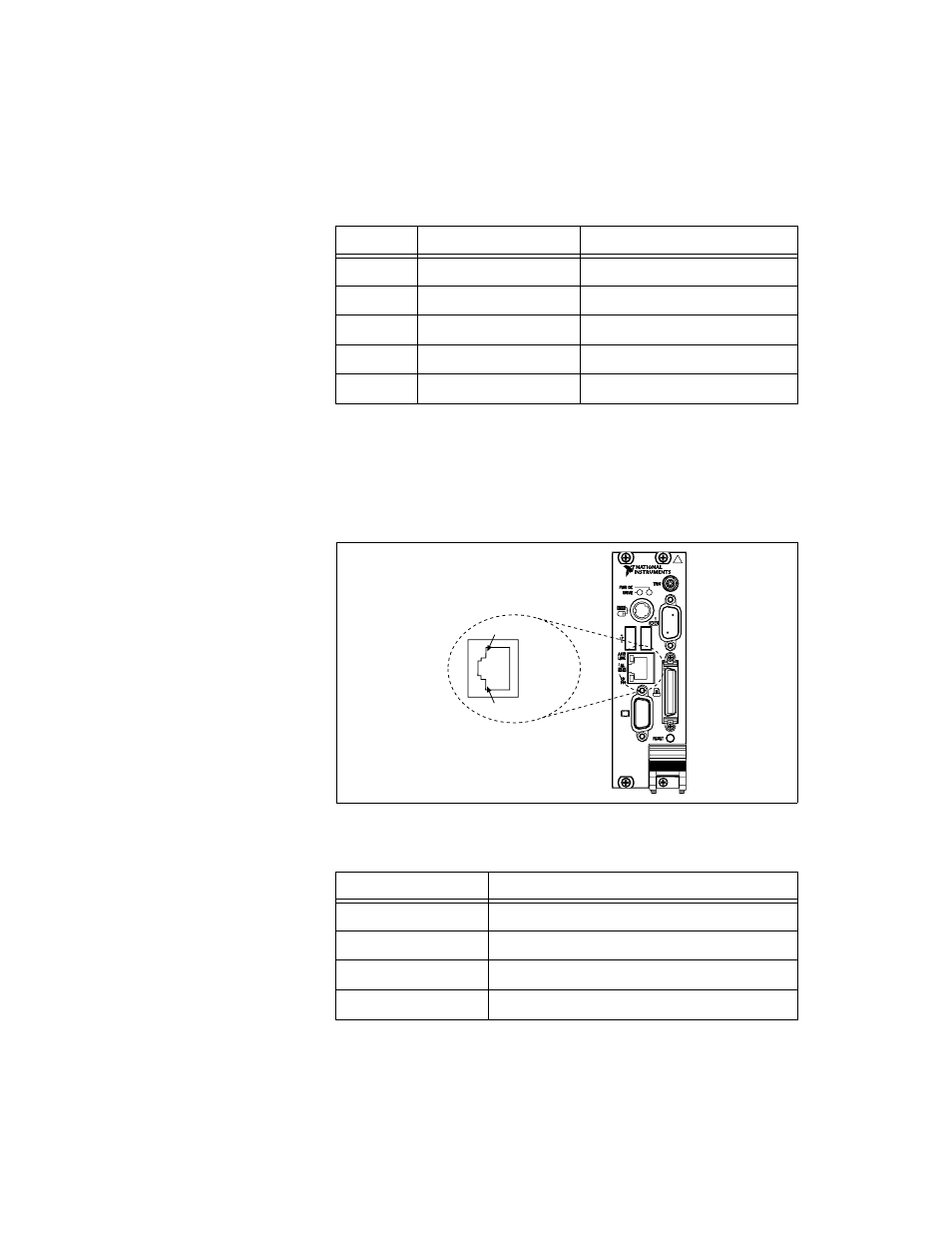

Figure 3-4 shows the location and pinouts for the Ethernet connector on the
NI PXI-8183. Table 3-4 lists and describes the Ethernet connector signals.
AMP manufactures a mating connector, part number 554739-1.
Figure 3-4. Ethernet Connector Location and Pinout
5
GND
Ground
6
DSR*
Data Set Ready
7
RTS*
Ready to Send
8
CTS*
Clear to Send
9
RI*
Ring Indicator
Table 3-4. Ethernet Connector Signals
Pin
Signal Description
1
Differential Transmit
2
Differential Transmit
3
Differential Receive
4
NC
Table 3-3. COM1 Connector Signals (Continued)
Pin
Signal Name
Signal Description
Ethernet
1
8
NI PXI-8183
Embedded Controller
