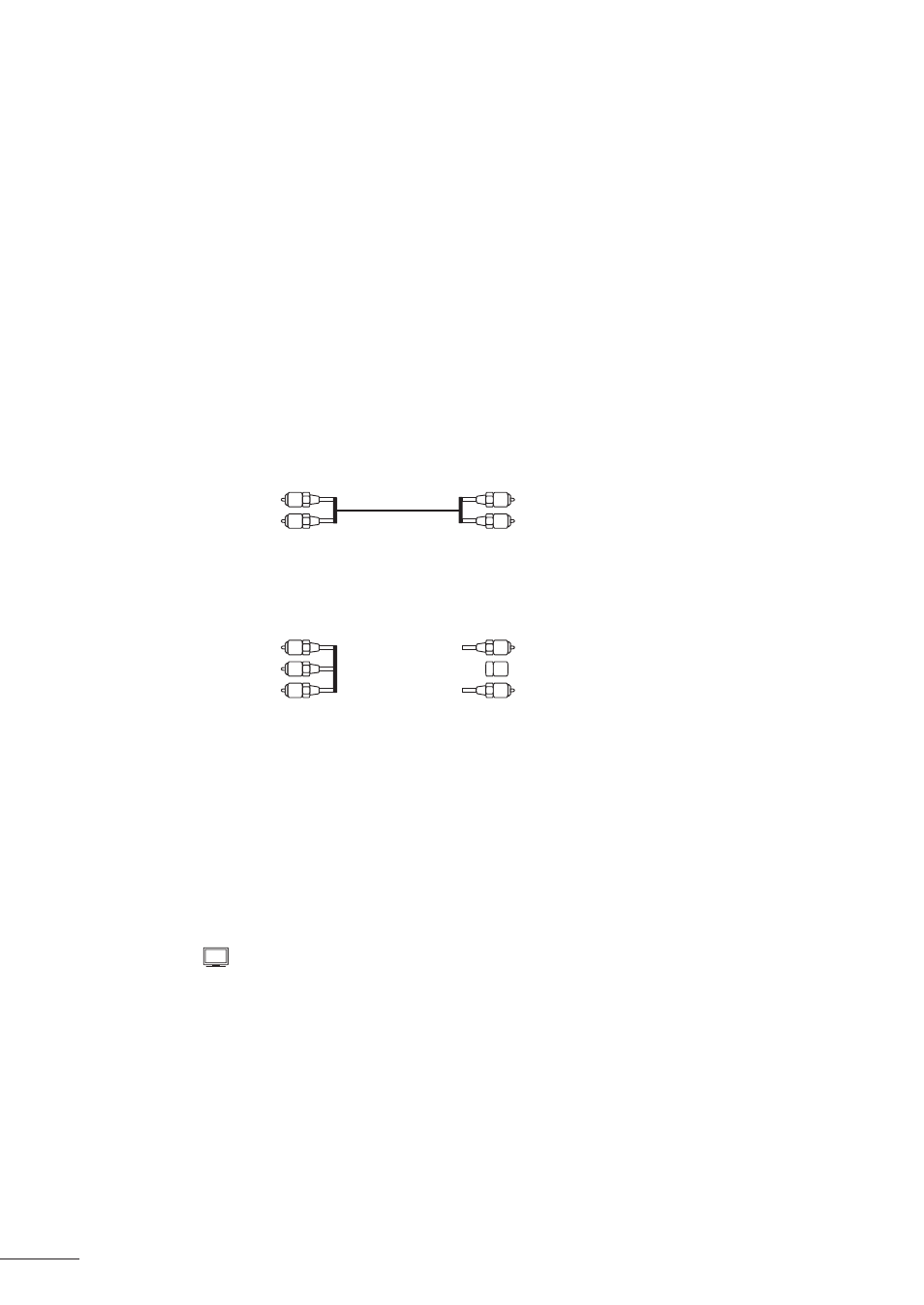

This section shows you how to connect devices to the S-video and composite video inputs of
your LCD TV. Most devices like VCRs, camcorders, non-progressive scan DVD players, etc only
provide composite video output or S-video output. The steps below are to show you how to
connect two devices simultaneously.
. Connect the SVIDEO on the back of your camcorder to the SVIDEO under VIDEO Input
jack.
2. Connect the audio red (R) and white (L) on the back of camcorder to the audio red (R) and
white (L) jacks on the side of your LCD TV.
3. Connect the yellow video jack on the back of your VCR to the yellow composite video input
jack on the side of your LCD TV under SVIDEO Input.
4. Connect the red (R) and white (L) audio jacks on the back of your VCR to the secondary audio
red and white (L) jacks on the side of your LCD TV.
5. Press the “ ” button on the remote control to display the OSD setup menu and choose VIDEO to
display video from the VCR or choose SVIDEO to display video from the camcorder.
