9
. Disconnect the TV and set-top box from all power sources before making any connec-
tions.

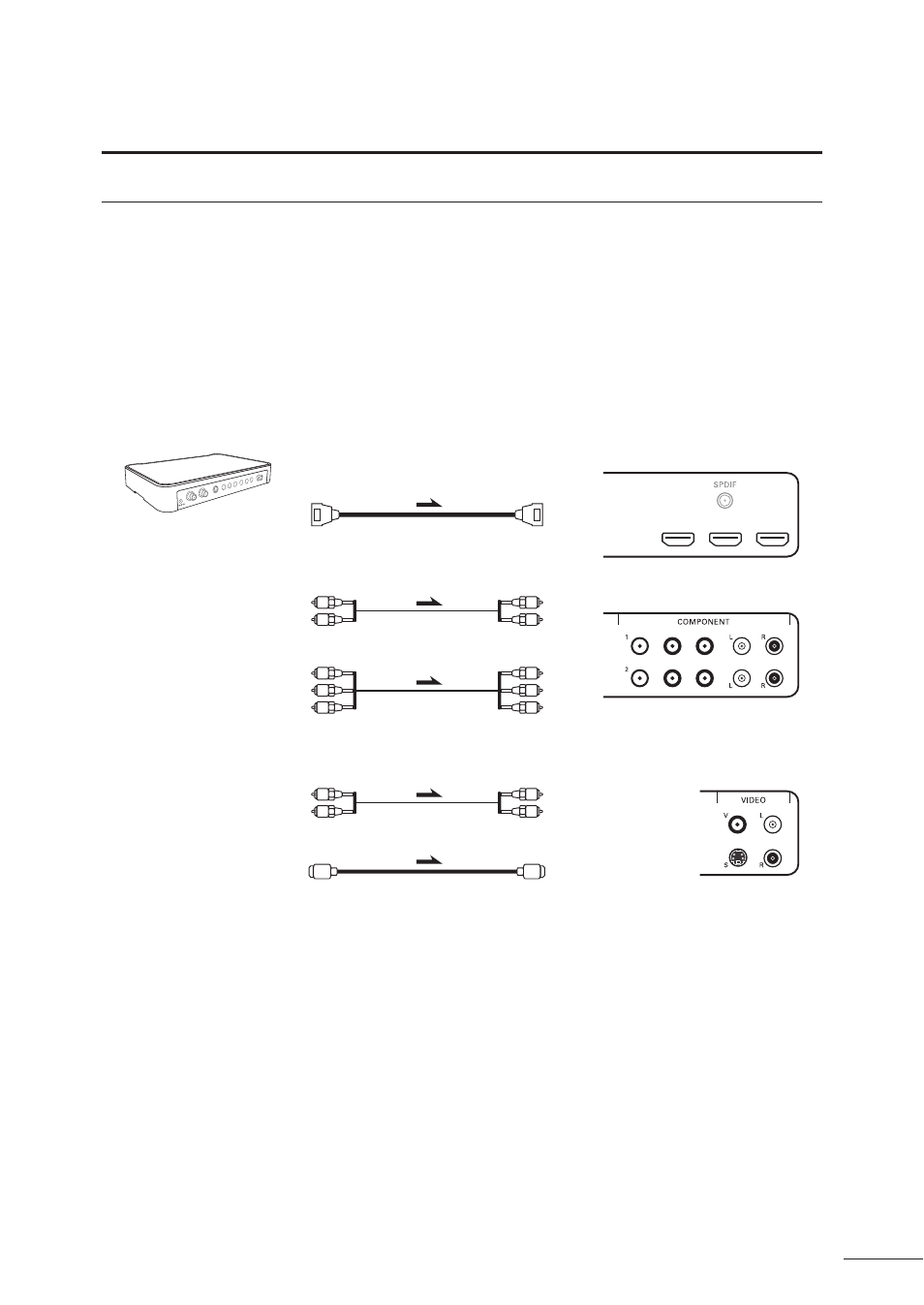

2. Use a HDMI cable, component video cable, or S-video cable to connect the HDMI, COMPONENT,
or SVIDEO output jacks of your digital set-top box to the HDMI, COMPONENT, or SVIDEO input
3. Use the AUDIO cables to connect the AUDIO ( L/R ) output jacks of your digital set-top box
to the AUDIO ( L/R ) input jacks on the side of the LCD TV. If you use the HDMI cable, you
don’t need to connect the audio cable between the two equipments. The HDMI cable
transmits both digital video and audio signals.
4. Connect the power cords of your digital set-top box and LCD TV to the power outlets.
9
0B#B
0R#R
9
0B#B
0R#R
#OMPONENT
3ET
TOP
,
2
3
6IDEO
($-)
NOT
NOT
NOT
!UDIO
NOT
,
2 !UDIO
NOT
($-) ($-) ($-)
9 0B#B 0R#R
Introducing The Television
Inputs and Outputs
Connecting the Digital Set-Top Box
( Commonly Used For HDTVs, Satellite TVs, etc. )
