Page 31
Detailed Installation Procedure
2-13
Copyright © 2001 by LSI Logic Corporation. All rights reserved.
Step 2.
Plug the 68-pin connector on the other end of the shielded
external SCSI cable into the SCSI connector on your external
SCSI device.

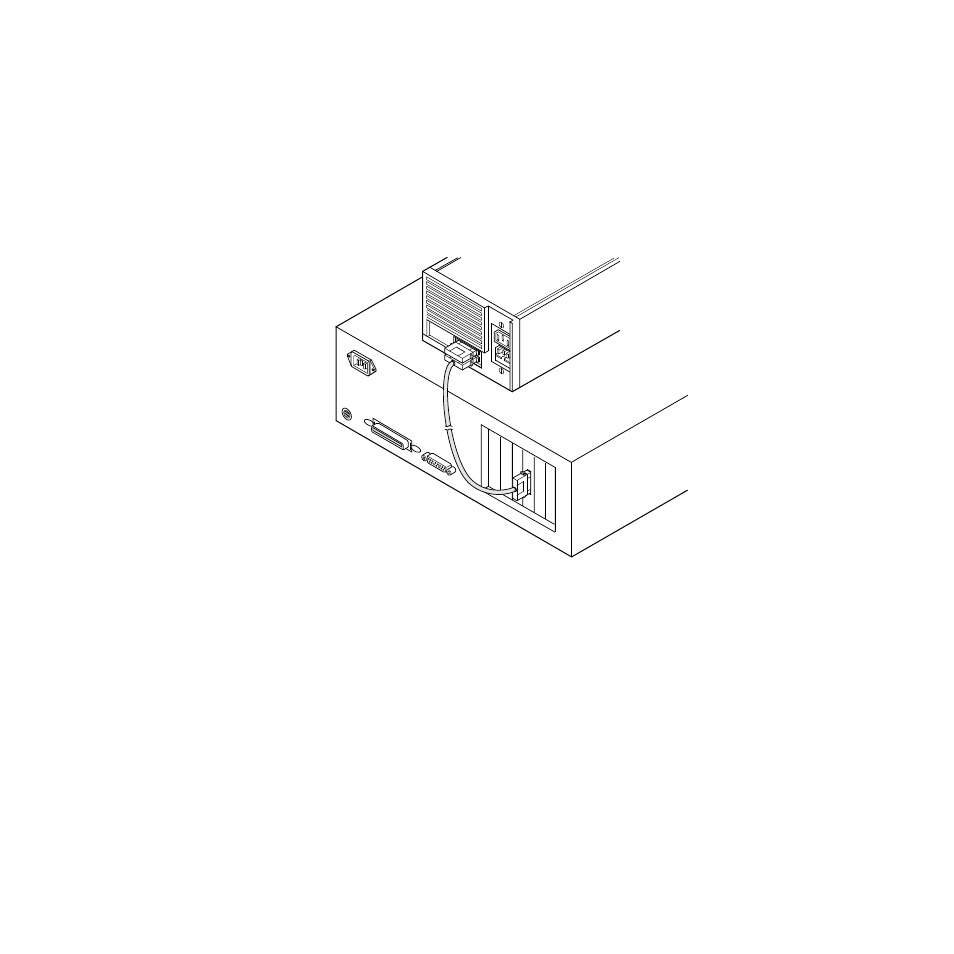

illustrates a connection to an external SCSI device.
Figure 2.10 External Cable to External SCSI Device
