Page 30
2-12
Installing the LSI20160
Copyright © 2001 by LSI Logic Corporation. All rights reserved.
2.2.4.3 Making External SCSI Bus Connections
This section provides step-by-step instructions for making external SCSI
bus connections.
Step 1.
Plug the 68-pin VHDCI connector on one end of a shielded
external high density cable (see
) into the host
adapter connector J2.
This connector is exposed on the back panel of your computer.
illustrates where this connection is made.

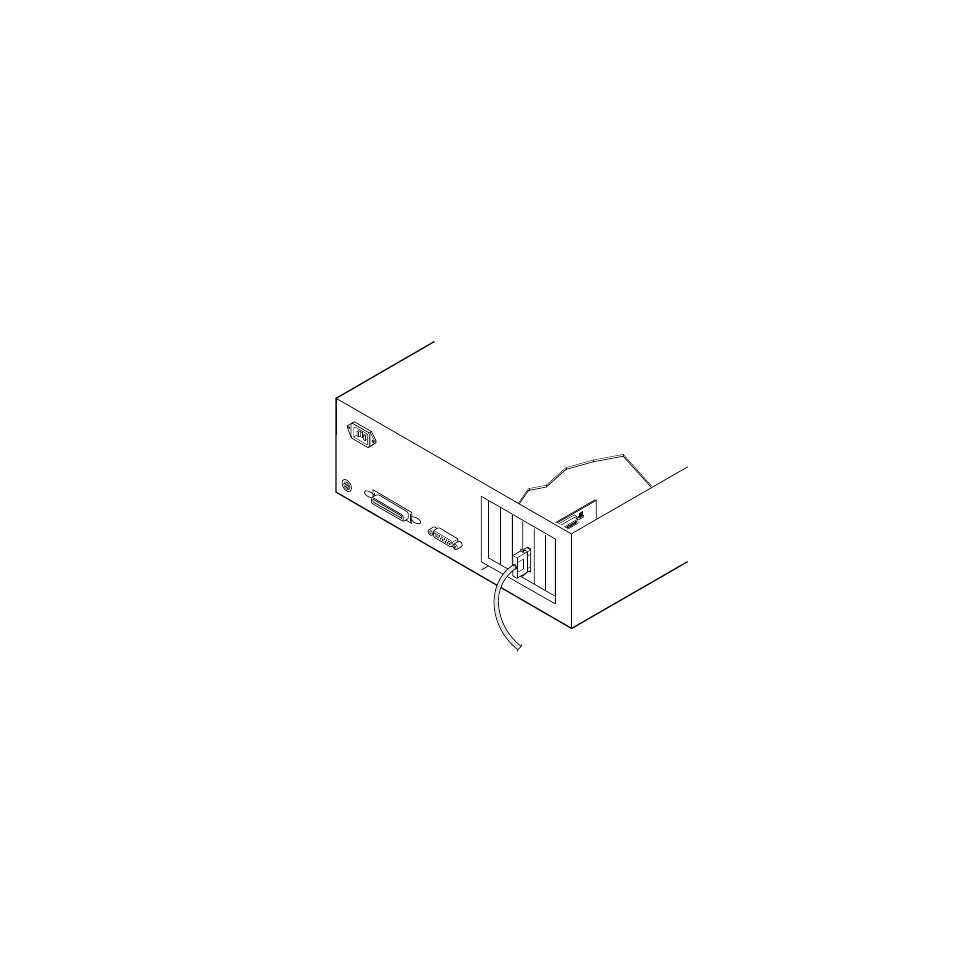

Figure 2.9
External Cable to Host Adapter
