Connecting SCSI Devices 2-9
Copyright © 2002 by LSI Logic Corporation. All rights reserved.
2.3.3 Connecting External SCSI Devices
This section provides step-by-step instructions for connecting external
SCSI devices. Refer to
Section 2.2.2, “External SCSI Cable,” page 2-5 for
examples of external cables.
Step 1. Plug the 68-pin VHDCI connector on one end of a shielded
external high density cable into the host adapter’s external
SCSI connector. This connector is exposed on the back panel
of your computer.
Step 2. Plug the 68-pin VHDCI connector on the other end of the
shielded external SCSI cable into the SCSI connector on the
first external SCSI device.
Figure 2.9 shows how to connect a single external SCSI device.
If you have the correct cable, it will match the external
connector.

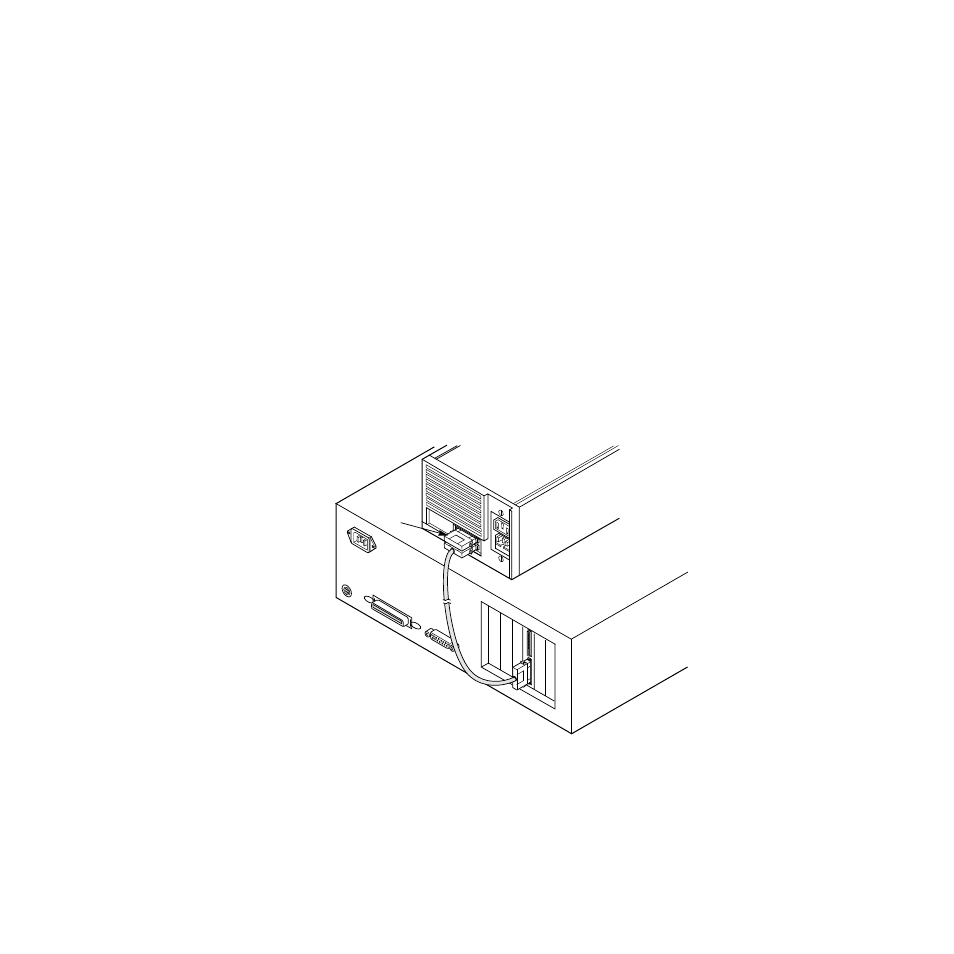

Figure 2.9 Connecting One External SCSI Device
Terminator
