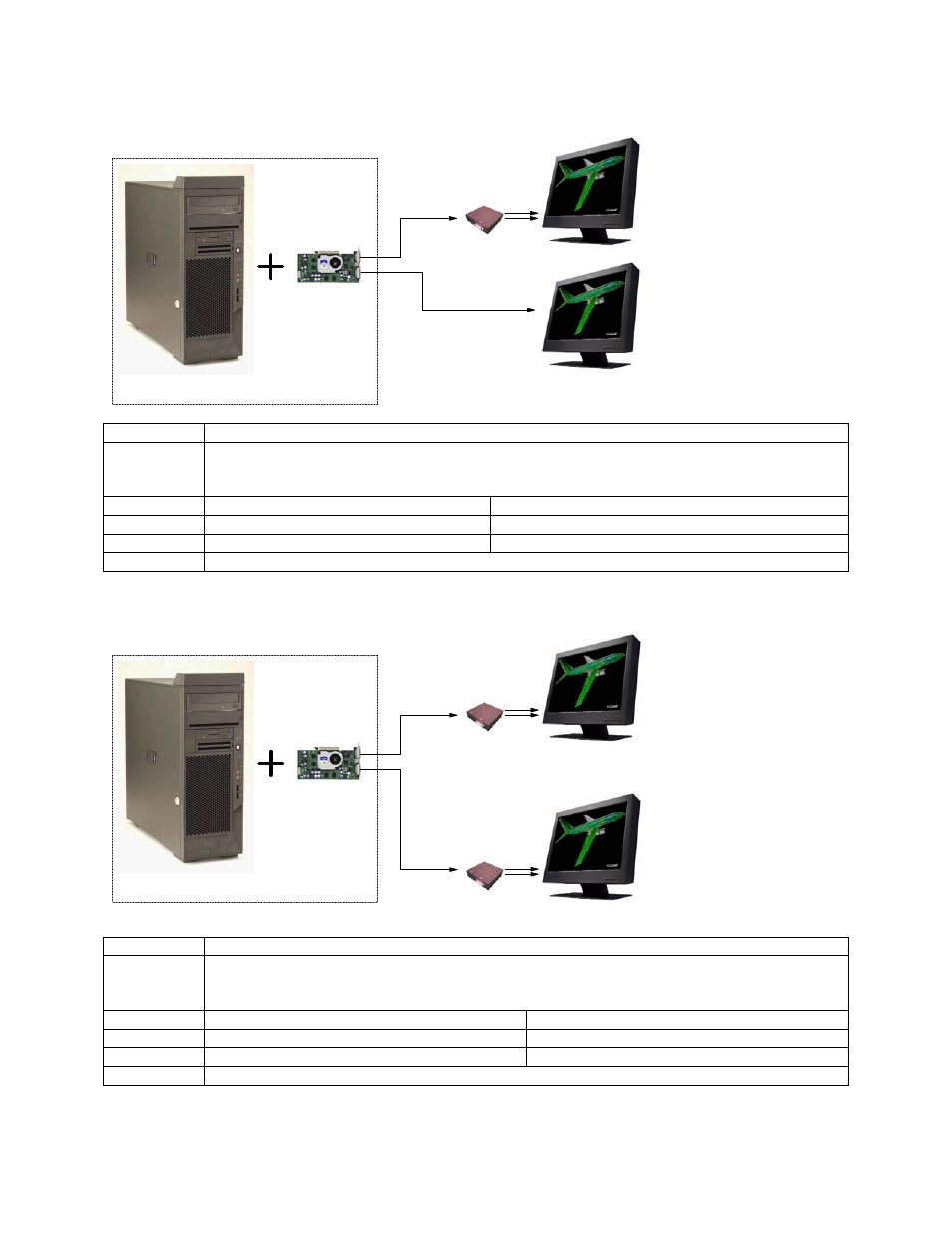

2. Dual monitor configuration, single + dual-link DVI (13Hz + 24Hz, DG5 only)
Dual-link DVI
T221 (9503-DG5)
3840x2400@24Hz
NVIDIA Quadro FX3000
IntelliStation M/Z-Pro
Single-link DVI
T221 (9503-DG3/5)
3840x2400@13Hz
Driver level
Minimum as per FX3000 or FX3400
Graphics
cards FX3000 or FX3400
Note: other supported dual output cards can be used, however full performance (OpenGL,
portrait operation etc.) will be limited due to available memory limitations
Monitor 1 Monitor 2
T221 EDID 002 029 (default)
Update rate 24Hz 13Hz
Desktop Single (horizontal span via NVIEW utility), Dual view (extend desktop via OS)
(*) Note : Dual link converter should be connected to graphics card DVI connector that locates close to AGP or close to PCI express.
3. Dual monitor configuration, dual + dual-link DVI (24Hz + 24Hz, DG5 only)
Dual-link DVI
T221 (9503-DG5)
3840x2400@24Hz
NVIDIA Quadro
FX4000
IntelliStation M/Z-Pro
Dual-link DVI
T221 (9503-DG5)
3840x2400@24Hz
Driver level
Minimum as per FX4000
Graphics
cards FX4000
Note: other supported dual output cards can be used, however full performance (OpenGL,
portrait operation etc.) will be limited due to available memory limitations
Monitor 1 Monitor 2
T221 EDID 002 002
Update rate 24Hz 24Hz
Desktop Single (horizontal span via NVIEW utility), Dual view (extend desktop via OS)
