5. Single monitor, single+dual-link DVI (48Hz, DG5 only)
Dual-link DVI
Single-link DVI
T221 (9503-DG5)
3840x2400@48Hz
NVIDIA Quadro FX3000
IntelliStation M/Z-Pro
Driver level 53.03
Graphics cards FX3000 or FX3400
T221 EDID
006
Update rate 48Hz
Desktop Single (horizontal span via NVIEW utility)
(*) Note : Dual link converter should be connected to graphics card DVI connector that locates close to AGP or close to PCI express.

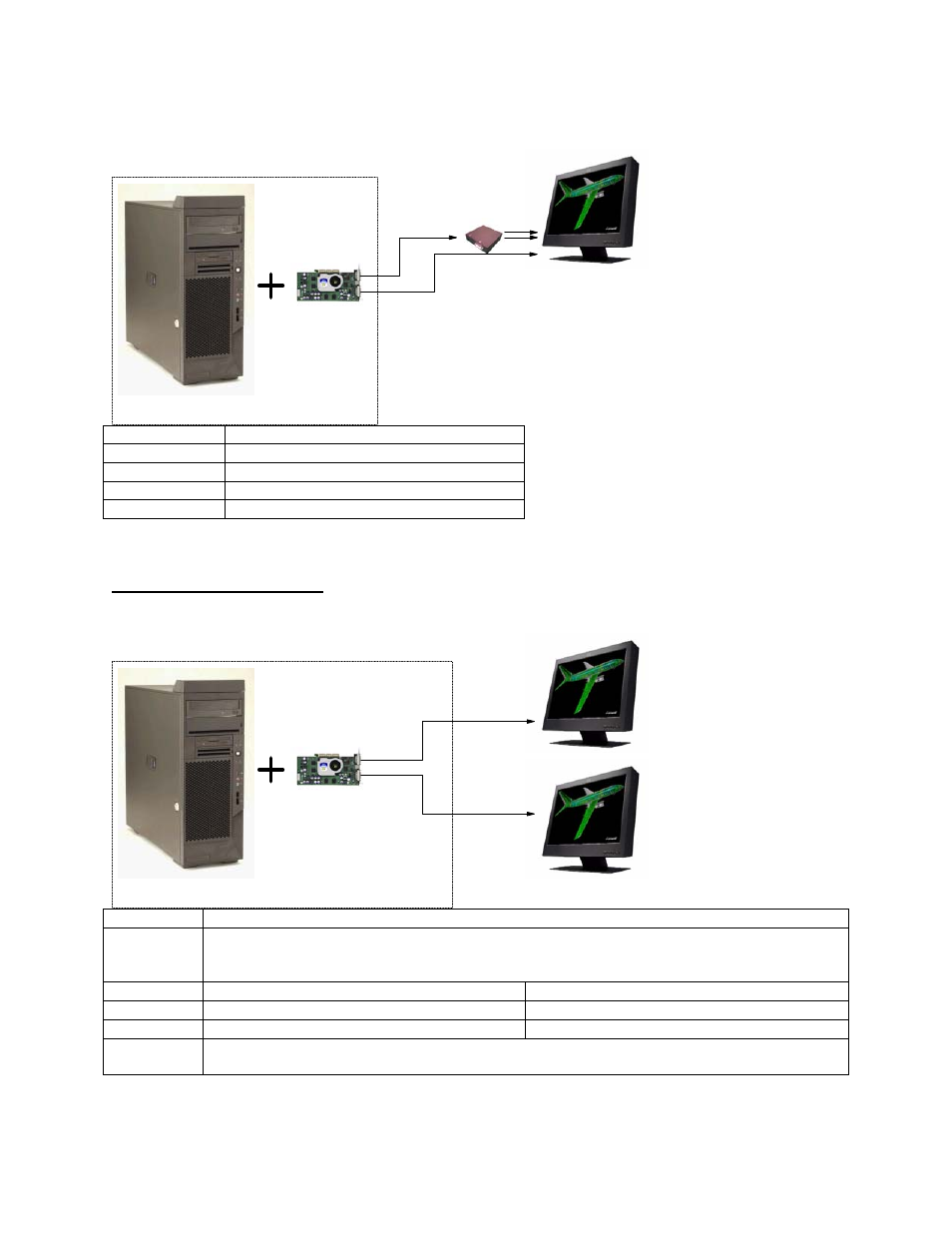

Multi-monitor configurations
1. Dual monitor configuration, twin single-link DVI (13Hz + 13Hz)
Single-link DVI
T221 (9503-DG3/5)
3840x2400@13Hz
NVIDIA Quadro FX3000
IntelliStation M/Z-Pro
Single-link DVI
T221 (9503-DG3/5)
3840x2400@13Hz
Driver level Minimum as per FX3000
Graphics
cards FX3000
Note: other dual output cards can be used as per the supported list, however features such
as OpenGL, portrait operation etc. will be restricted due to memory limitations
Monitor 1 Monitor 2
T221 EDID 029 (default) 029 (default)
Update rate 13Hz 13Hz
Desktop Single (horizontal span via NVIEW utility)
Dual view (extend desktop via OS)
