INSTALL SHOWER ARM AND SHOWERHEAD
7.
CAUTION: Risk of
product damage. To avoid
plugging the showerhead
spray outlets, use thread
sealant tape on the shower
arm threads. Do not use pipe
thread sealant (pipe dope).
Remove the temporary nipple from
the shower elbow.
Apply plumbers putty or other
sealant to the back of the
escutcheon according to the putty
manufacturer's instructions. Slide
the escutcheon over the shower
arm.
Apply thread sealant tape to the
shower arm and install the shower
arm to the shower elbow. Carefully
tighten with a clean strap wrench.
Press the escutcheon against the
finished wall. Remove any excess
putty.
With the showerhead off, flush the
system.
Apply thread sealant tape to the
shower arm and install the
showerhead to the shower arm.

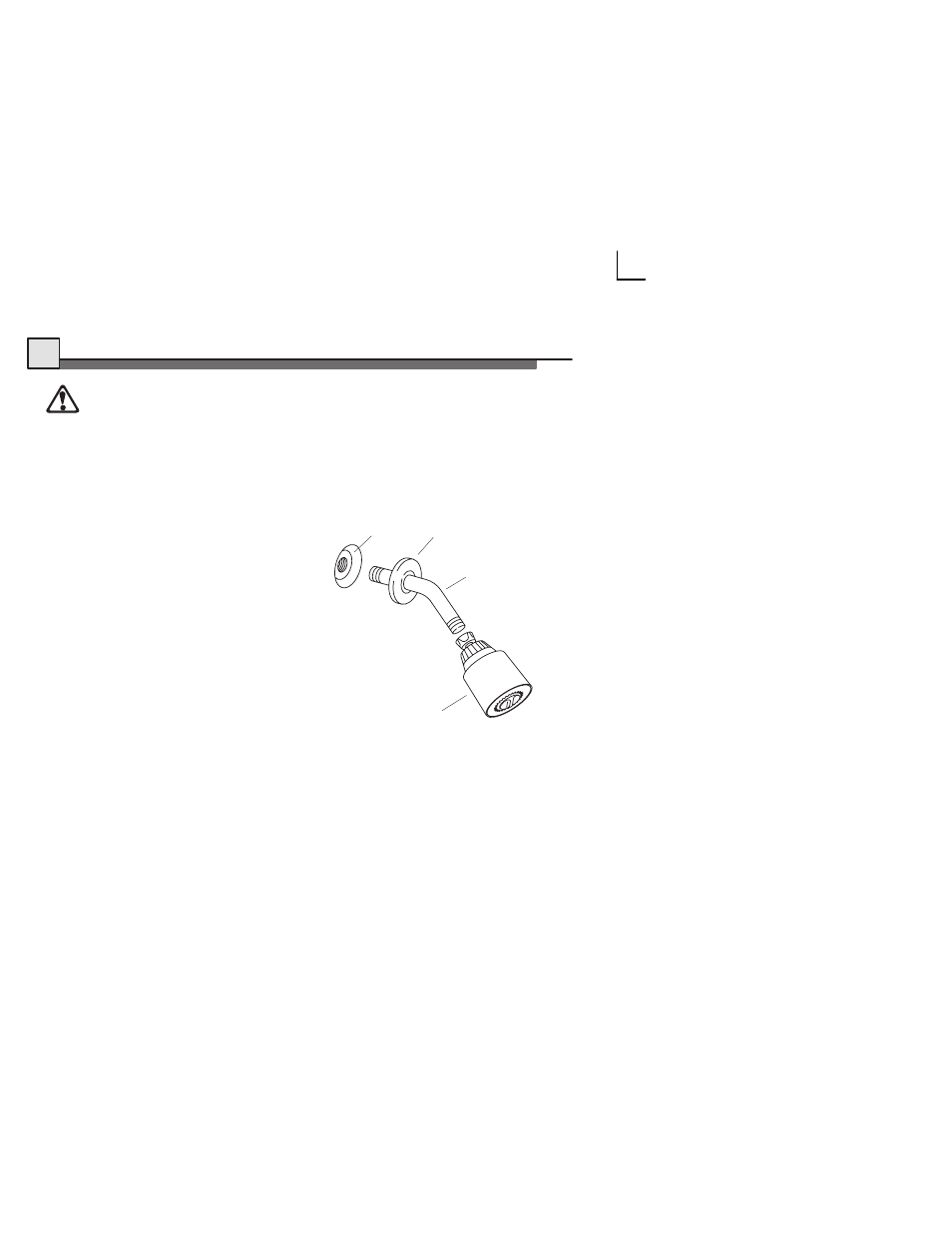

Escutcheon
Shower
Elbow
Showerhead
Shower
Arm
