Kohler Coralais rite-temp bath and shower faucet 114522-2-CE User Manual
Page 7
7
114552Ć2Ć
CE
Kohler Co., Kohler, WI

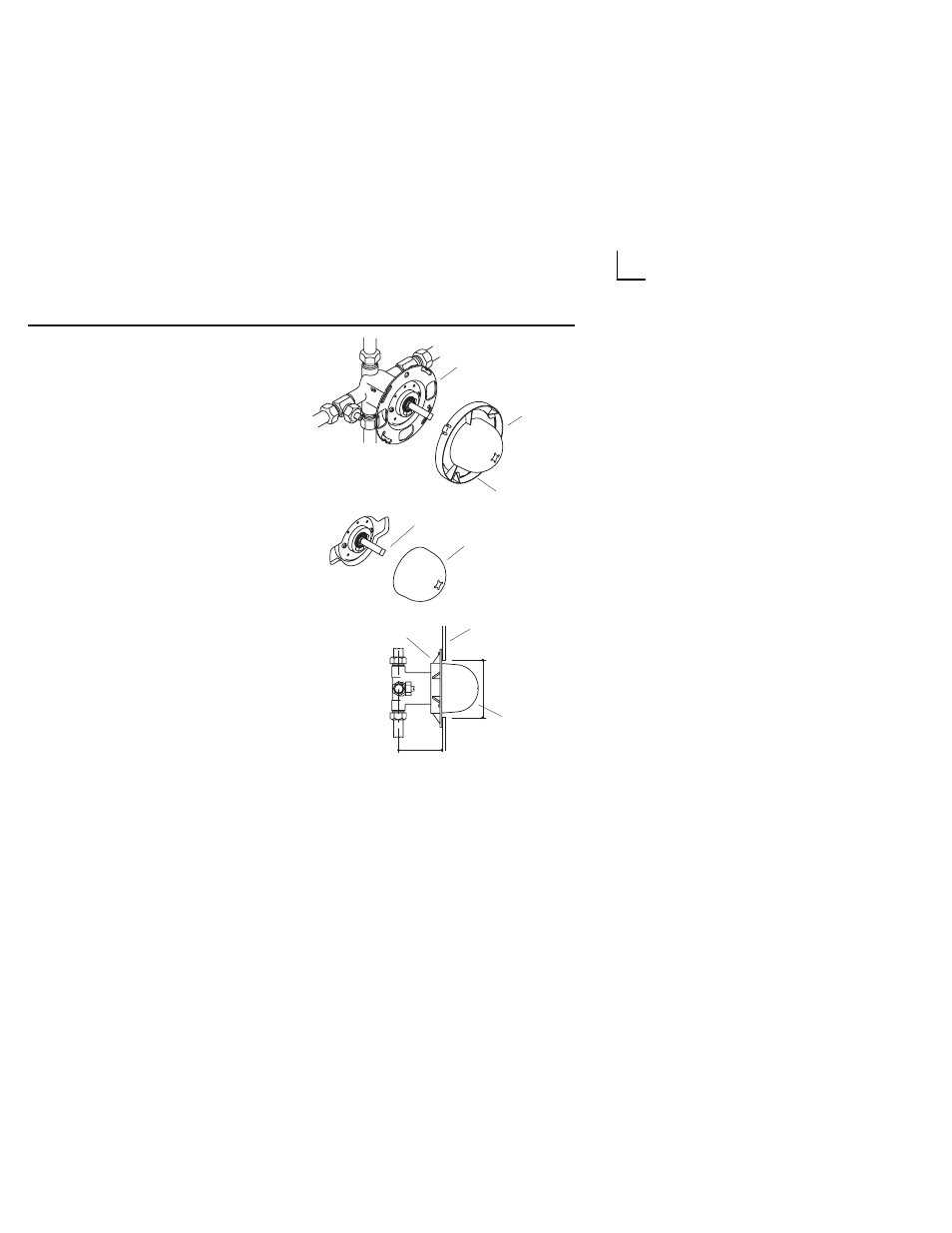

Thin Wall Installation
(Fiberglass, Acrylic): Remove
the plaster guard from the
backing plate.
Twist the plaster guard dome to
separate it from the outer ring.
Discard the outer ring.
Slide the dome over the valve
stem.
Provide a 4" (10.2cm) diameter
hole in the finished wall material.
Make openings for the stops (if
included) by using the holes in
the backing plate as a guide.
Secure the backing plate to the
back of the wall material.
Do not remove the dome until
instructed.
UP
HOT
Wall
Material
2Ć3/4" (7cm)
RoughĆIn Depth
Plaster
Guard
4"
(10.2cm) D.
Backing Plate
Backing
Plate
Plaster
Guard
Dome
Valve Stem
Outer
Ring
