Adjustments – Kohler Coralais rite-temp bath and shower faucet 114522-2-CE User Manual
Page 10
114552Ć2Ć
CE
Kohler Co., Kohler, WI
10
ADJUSTMENTS
8.
MAXIMUM WATER
TEMPERATURE ADJUSTMENT
Remove the handle and face plate
from the valve, if installed.
Turn the valve stem fully
clockwise to get maximum hot
water flow.
To adjust the maximum
temperature, slide the stem
OĆring out of groove and part way
up valve stem. Move the upper
limit stop ring part way up the
valve stem. Rotate the valve stem
until the desired maximum water
temperature is reached. Rotate
lower limit stop ring until it
contacts the tab. Slide the upper
limit stop down the valve stem to
engage the lower limit stop. Slide
the OĆring into the valve stem
groove.
Rotate the valve stem
counterclockwise to shut the
water off. Reinstall the handle
and face plate.

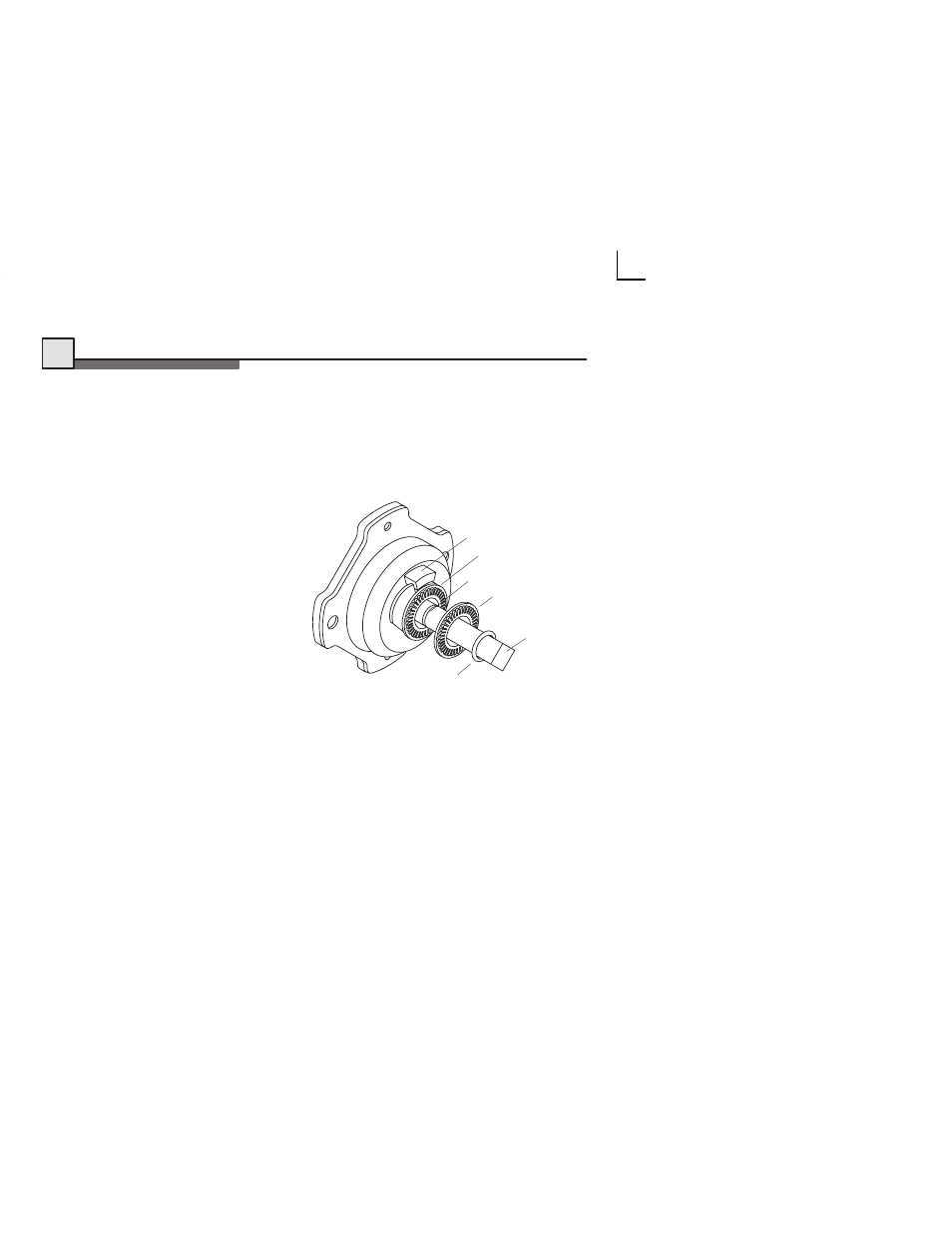

Lower Limit
Stop
Tab
Groove
Valve
Stem
OĆRing
Upper Limit
Stop
