Disassembly
2 - 18 Removing the Bluetooth Module
2.Disassembly
Removing the Bluetooth Module
1. Turn off the computer, turn it over, and remove the battery ( page 2 - 6 ) and the component bay cover ( page 2 - 7 ).
2. The Bluetooth module will be visible at point on the mainboard.
3. Disconnect the cable and carefully separate the Bluetooth Module from the connector ( Figure 13b ).
4. Lift the Bluetooth Module ( Figure 13c ) up and off the computer.

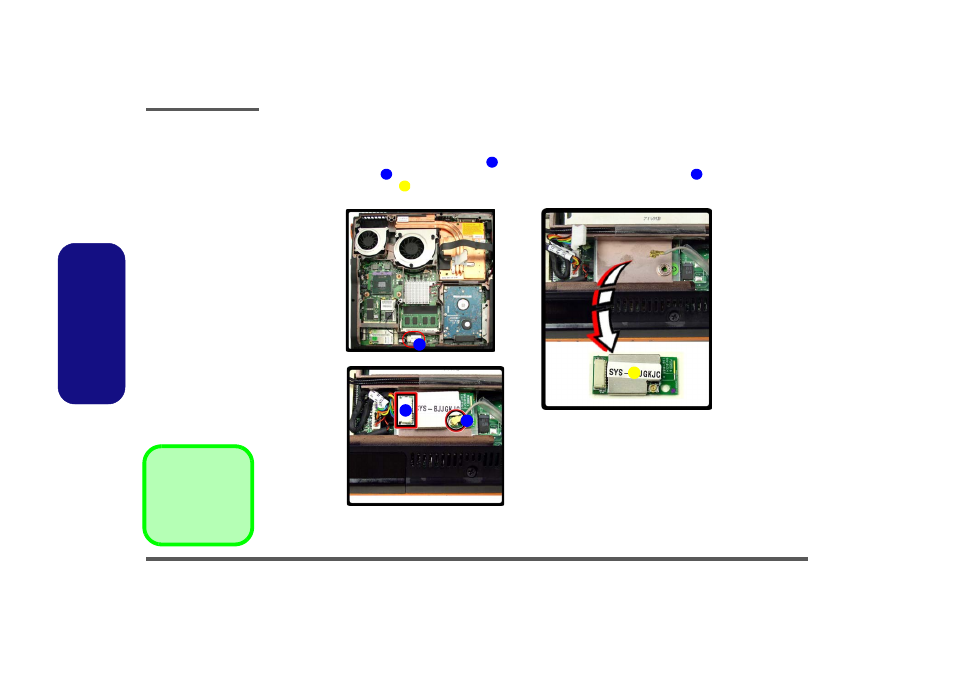

Figure 13
Bluetooth Module
Removal
a. Locate the Bluetooth
module.
b. Disconnect the cable
and the connector from
the bluetooth module.
c. Lift the Bluetooth module
out.
1
2 3
4
b.
a. c.
4
2
3
1
4. Bluetooth Module
