Disassembly
Removing the Optical (CD/DVD) Device 2 - 9
2.Disassembly
Removing the Optical (CD/DVD) Device
1. Turn off the computer, turn it over and remove the battery ( page 2 - 6 ).
2. Slide latch towards the unlock symbol and hold it in place.
3. Slide latch (while still holding latch in place) in the direction indicated by the arrow in order to push the opti-
cal device out of the computer.
4. Restart the computer to allow it to automatically detect the new device.

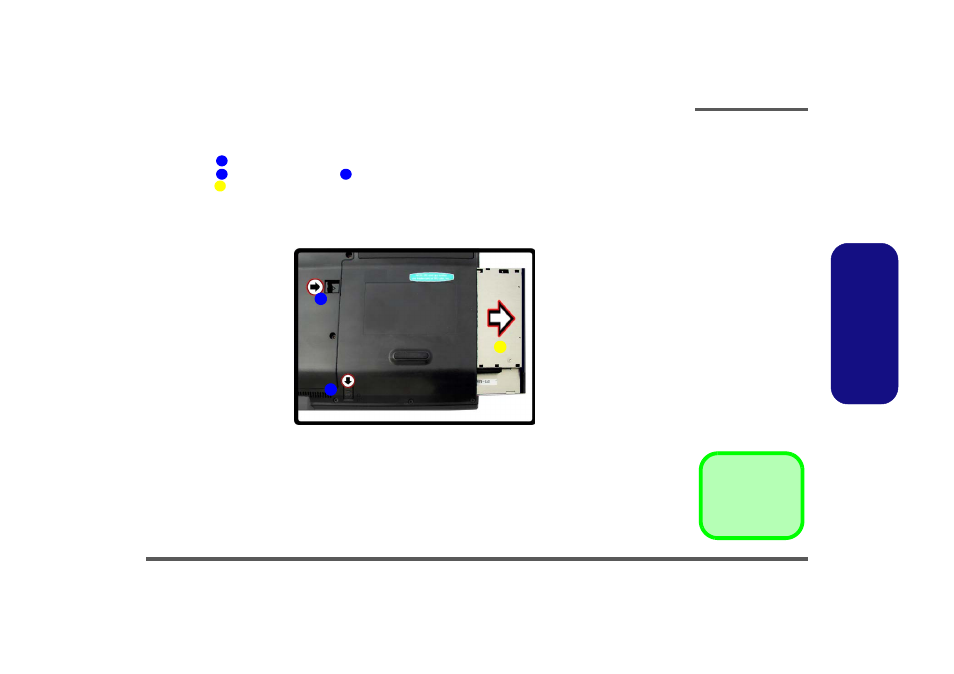

Figure 4
Optical Device
Removal
a. Slide latch at point 1 to-
wards the unlock symbol
and hold it in place. Then
slide the optical device
out of the computer at
point 2.
1
2 1
3
a.
2
3
1
3. Optical Devive
