Install the Ribbon Cartridge
Note: Additional ribbon cartridges are sold separately. See “Inside Sales” in
Chapter 1 for ordering information and part numbers.
Ensure that the ribbon cartridge is in the printer and is fully seated (car-
tridge makes a distinct “snap” or “click”) with the visible portion of the
ribbon straight and even before you do any printing.
1 Turn the ribbon advance knob (in the direction of the raised arrows) to
remove any slack in the ribbon.
2 Squeeze the ribbon cartridge locking tab into the cartridge, then lower
the cartridge over the print head.
3 Lower the tab side of the cartridge until it clicks.
4 Release the tab and press down on the arrow to fully seat the ribbon car-
tridge (tab clicks outward).
5 Turn the ribbon advance knob (follow raised arrows) to align the ribbon
in the front of the print head.

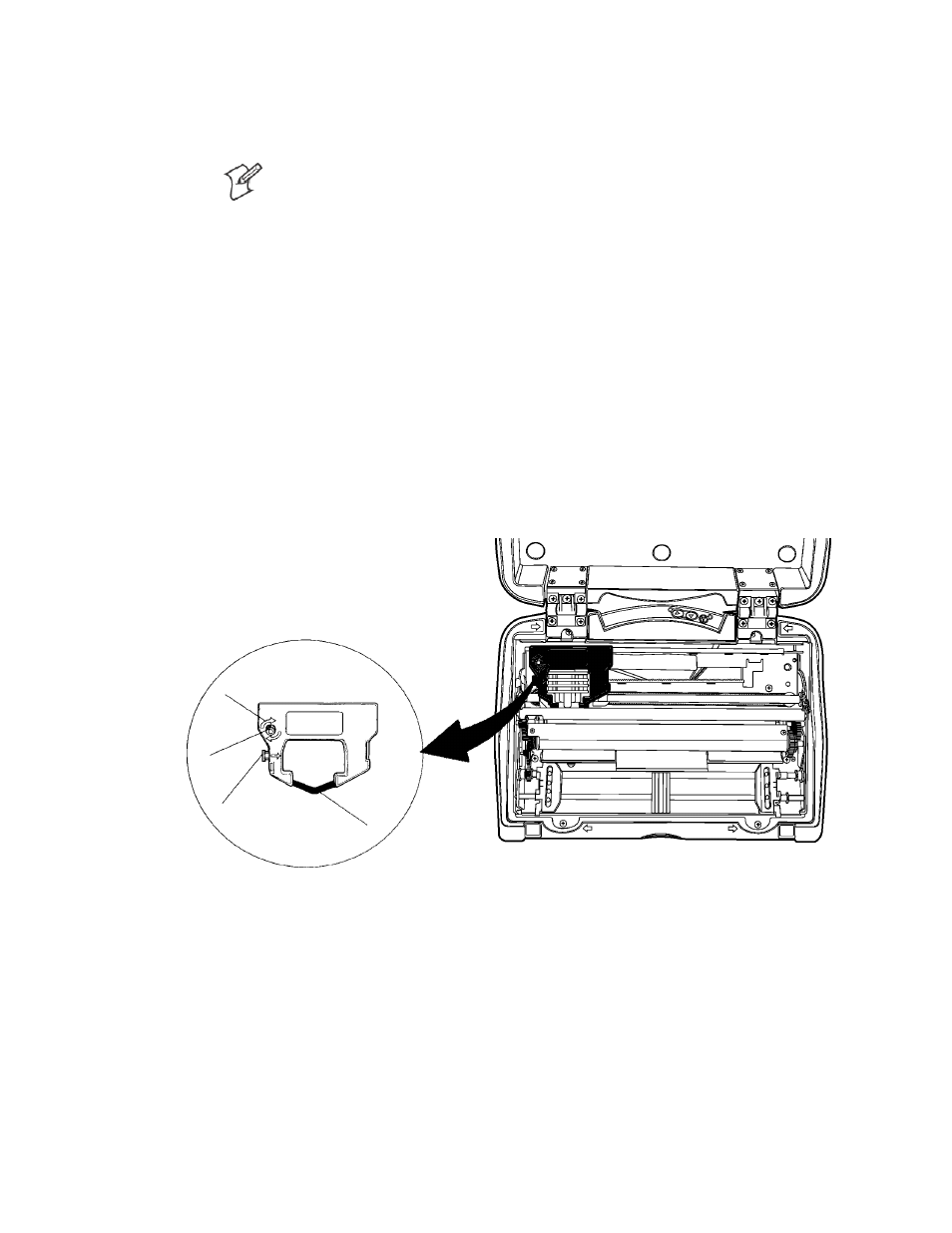

1 Ribbon
2 Locking tab
3 Advance knob
4 Tightens ribbon
1
2
3
4
