SECTION 8—FOOTBOARD ASSEMBLY
51

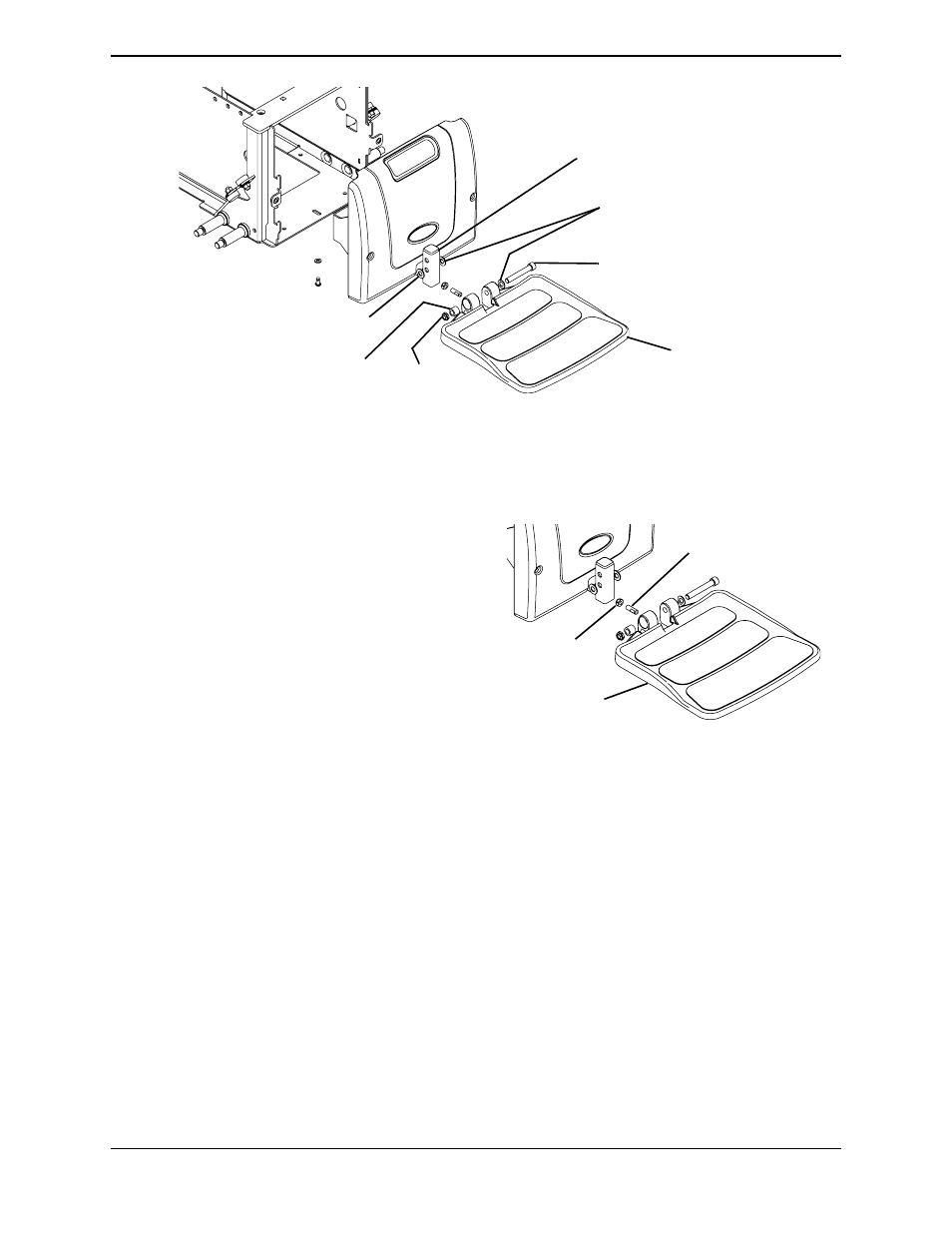

FIGURE 8.1 Removing/Installing the Footboard
Adjusting the Footboard Angle
NOTE: For this procedure, refer to FIGURE 8.2.
1. Loosen the jam nut and set screw
located underneath on the rear of the
footplate.
2. Adjust the mounting screw in or out to
obtain the desired footboard angle.
3. Thread the jam nut inward until it is
flush with the footboard bracket.
4. Securely tighten the jam nut and washer
to secure the mounting screw in place.
FIGURE 8.2 Adjusting the Footboard Angle
Footboard
Assembly
Locknut
Spacer
Washers
Socket Head
Screw
Washer
Footboard Support
Set Screw
Footboard
Jam Nut
