SECTION 5—WHEELCHAIR OPERATION

Repositioning Joystick

Van Seats

NOTE: For this procedure, refer to FIGURE 5.9.

NOTE: Take note of position and orientation of mounting hardware for reinstalling the joystick
assembly.

1. Turn the adjustment lock lever to release the joystick mounting tube from the

mounting bracket.

2. Remove the joystick mounting tube from the wheelchair.

3. Remove the three hex mounting screws, bushings and locknuts that secure the

mounting bracket to the three mounting holes on the armrest plate.

NOTE: The mounting bracket is mounted to the inside of the armrest plate.

4. Reposition the mounting bracket on the opposite armrest plate.

5. Using the three hex mounting screws, bushings and locknuts secure the mounting

bracket to the three mounting holes of the armrest plate.

6. If necessary, perform the following to reposition the adjustment lock:

A. Slide the adjustment lock from the mounting bracket.

B. Rotate adjustment lock 180° and slide adjustment lock over the opposite end of the

mounting bracket.

7. Slide joystick mounting tube through the mounting bracket to the desired position

and secure adjustment lock to tube by turning lever on adjustment lock.

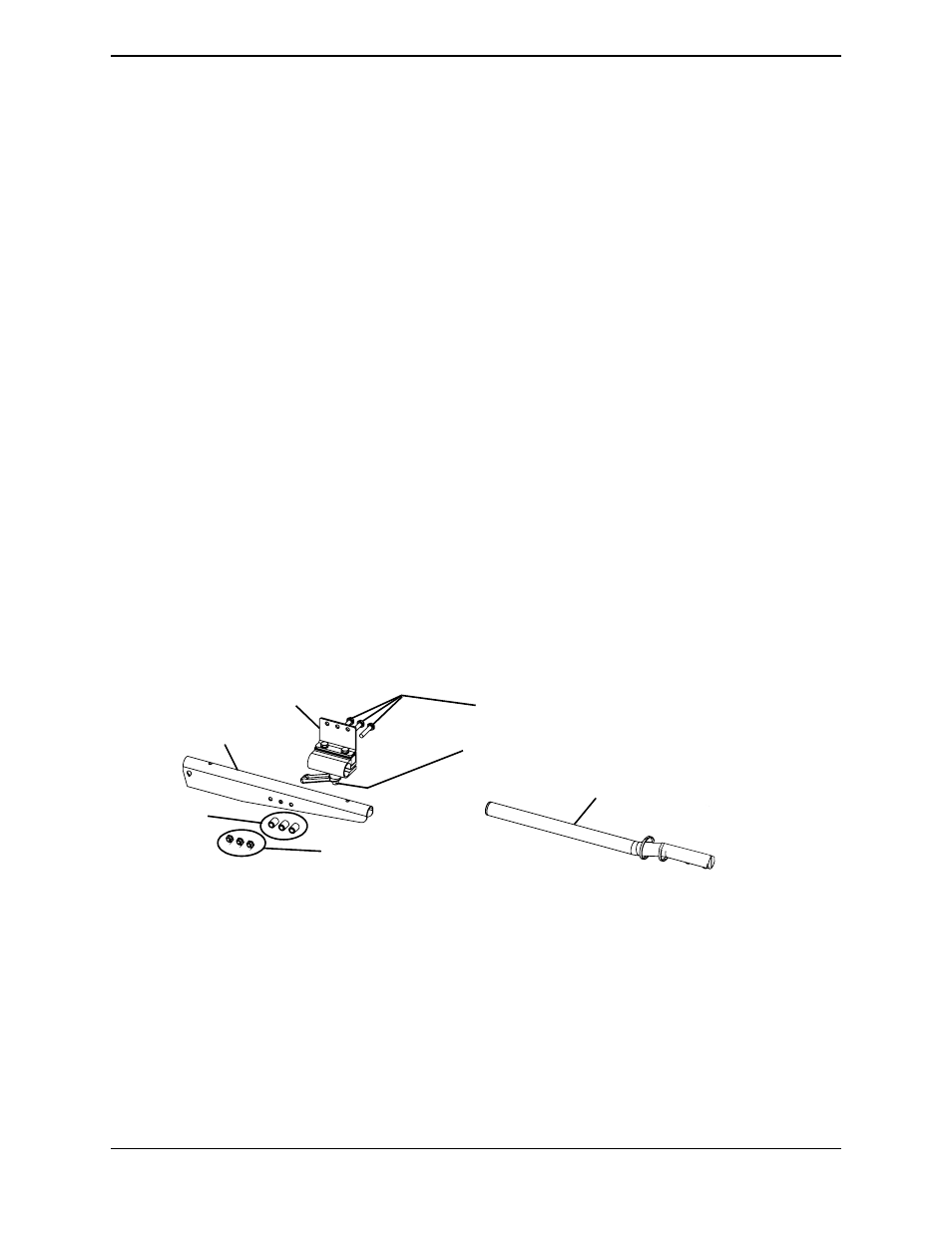

FIGURE 5.9 Repositioning Joystick - Van Seats

Locknuts

Bushings

Armrest Plate

Mounting Bracket

Hex Mounting Screws

Adjustment Lock Lever

Joystick Mounting Tube

NOTE: Joystick
not shown.
