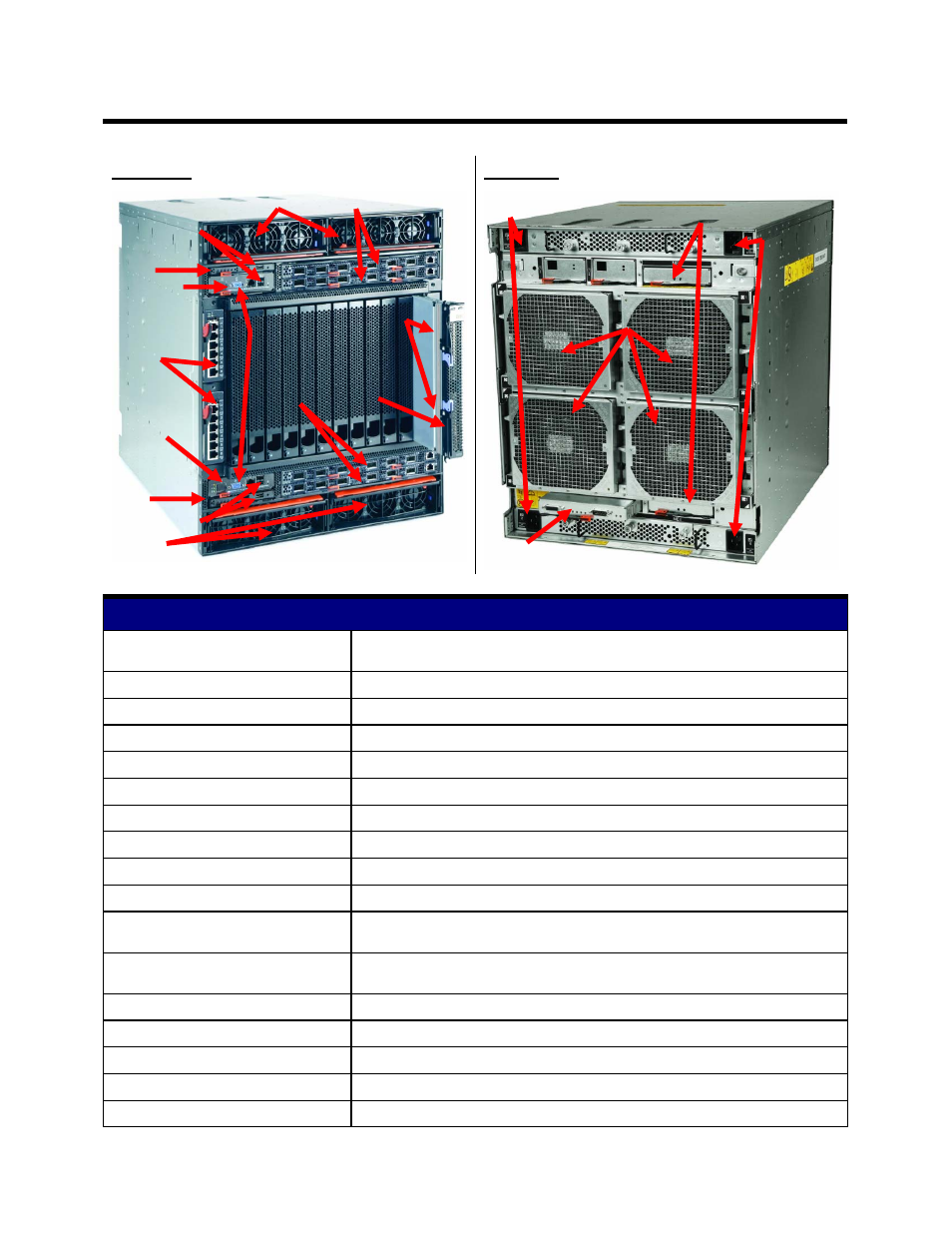

BladeCenter HT Chassis Images
Front View Rear View
BladeCenter HT Chassis Specifications
Machine type
8740-1RX (DC)
8750-1RX (AC)
NEBS/ETSI-tested Yes (NEBS Level 3)
Rack form factor 12U
# of DVD/CD Combo drives standard None (USB-attach)
# of diskette drives standard None (USB-attach)
Internal tape drives supported None (SAN-attached)
External disk drive support NAS/SAN-attach
# of blade slots / orientation 12 x 30mm, 6 x 60mm, or combinations thereof / vertical
Fabric bandwidth 10Gbps
Total # of switch/bridge module bays 8 (includes the following)
# of legacy switch / bridge module
bays
4 hot-swap/redundant (either 4 switch or 4 bridge modules, or 2 of each)
# of high-speed switch module
bays
4 hot-swap/redundant
# of management modules std / max 1 / 2
Systems management controller BladeCenter Advanced Management Module
# of Serial-over-LAN ports 1 (via Management LAN)
# of cKVM ports 1 (via Management LAN)
# of parallel ports None (USB-attach)
Blade
Server
Power Supply Modules
Empty Blade Slots
Power
Modules
High-Speed Switch Modules
USB 2.0 Ports
High-Speed
Switch
Modules
Advanced
Management
Module
Switch/Bridge
Module Bays
Switch/Bridge
Module Bays
(hidden)
Video Ports
Media
Tray
USB 2.0 Ports
Media
Tray
Advanced
Management
Module
A/C Power
Plugs
H/S Fan
Modules
A/C Power Plugs Multiplexer Expansion Modules
Alarm Panel Module
