BladeCenter E Chassis Specifications
# of management modules (std / max) 1 / 2 hot-swap/redundant
Systems management controller Management Module
# of RS485 ports 1 (on Management Module)
# of serial breakout ports None (Serial over LAN only)
# of parallel ports None
# of mouse ports 1 (on Management Module)
# of keyboard ports 1 (on Management Module)
# of USB ports 2 (1 on Media Tray, one on Management Module)
Light path diagnostic panel Yes (in Media Tray)
Predictive Failure Analysis support
Blades, switch modules, I/O modules, management modules, power modules, blower
modules, media tray
Power supply size standard 2000W AC
# of power supplies standard /
maximum
2 / 4 hot-swap/redundant
Heat output 2342 BTUs/hr (686W) min.; 18,680 BTUs/hr. (5478W) max.
# of blower modules standard / max. 2 / 4 hot-swap/redundant
Blower module airflow (front-to-back) 250 CFM at 25ºC; 455 CFM at 32ºC or greater
Dimensions (HWD) / weight
12.0” (305mm) H
17.5” (4429mm) W
28.0” (711mm) D
99-240 lbs
44.9-108.9 kg
Length of limited warranty 3 years (parts and labor) onsite

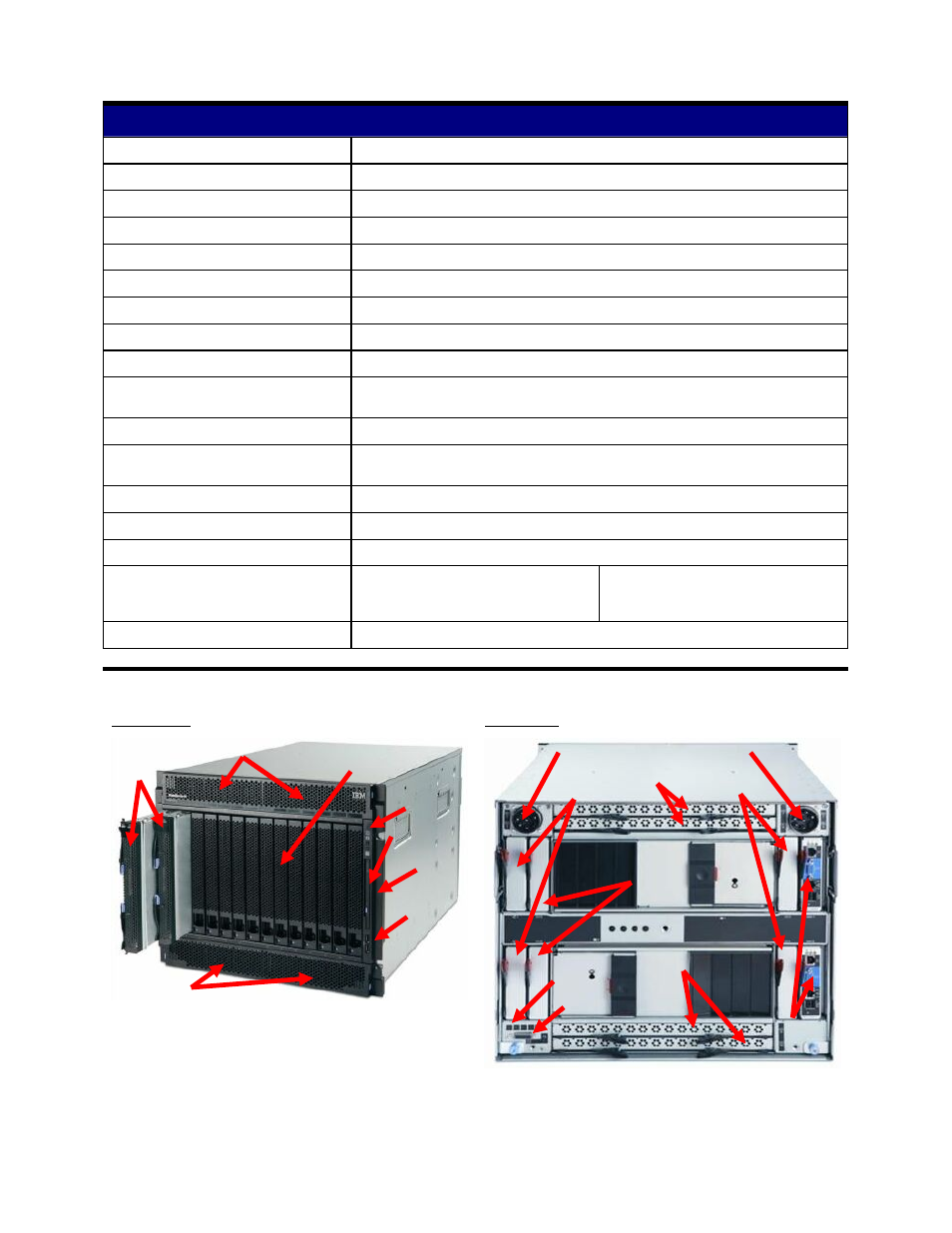

BladeCenter H Chassis Images
Front View Rear View
HS21 Blade
Servers
Power Supply Modules Empty
Blade Slots
Consolidated Redundant Power Inputs
Modules for
Switches or
Bridges
Media
Tray
Power
Supply
Modules
Light Path
Diagnostics
Panel
USB
2.0
Ports
Optical
Drive
High-Speed
Bridge Modules
Light Path
Diagnostic
Panel
Bridge
Modules
Blower
Module
Ethernet
Switch
Modules
Midplane
High-Speed
Bridge
Modules
Blower
Module
Adv. Mgmt
Modules
Aggregated Serial
Connector
