Ieee 1284 parallel interface board – Intermec F4 User Manual
Page 77
Intermec EasyCoder F4 – Installation & Operation IPL Version, Ed. 3
76
Appendix 3 Interfaces
IEEE 1284
Parallel Interface
Board

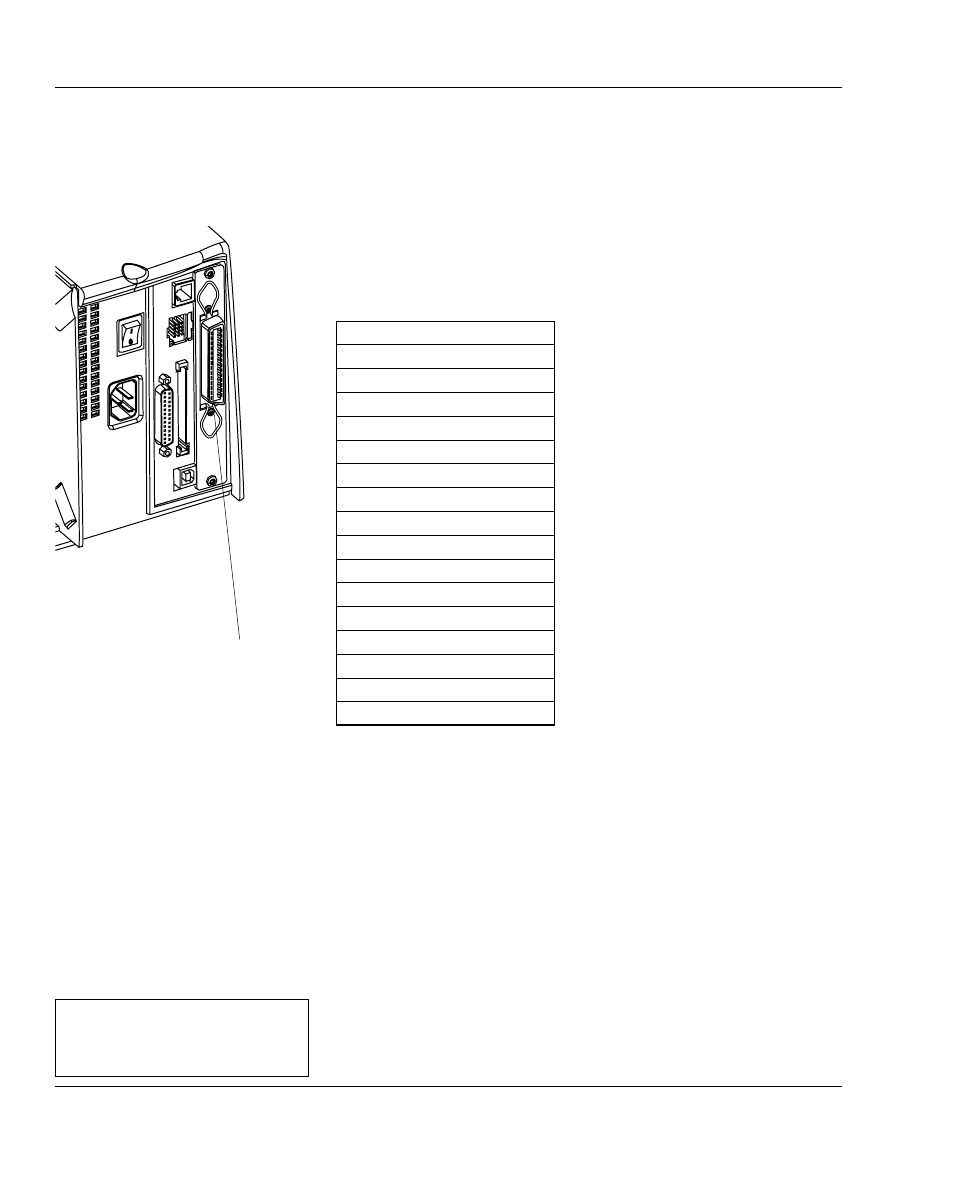

The EasyCoder F4 can optionally be fi tted with an IEEE 1284-I
compatible parallel interface board
1
.
Interface Cable Connectors
Computer end:
Depends on type of host computer.
Printer end:
36-pin female IEEE 1284B Centronics
Pin Signal
Name
1
DStrobe
2–9 Data
0–7
10
Ack
11
Busy
12
PE
13
Select
14
AF
15
Not
connected
16
Ground
17
Screen
18
+5V
Ext
19–30 GND
31
Init
32
Error
33-35
Not connected
36
Selectin
Parallel Port
1
/. Nibble, byte, ECP, and EPP
from printer to host are presently
not supported.
