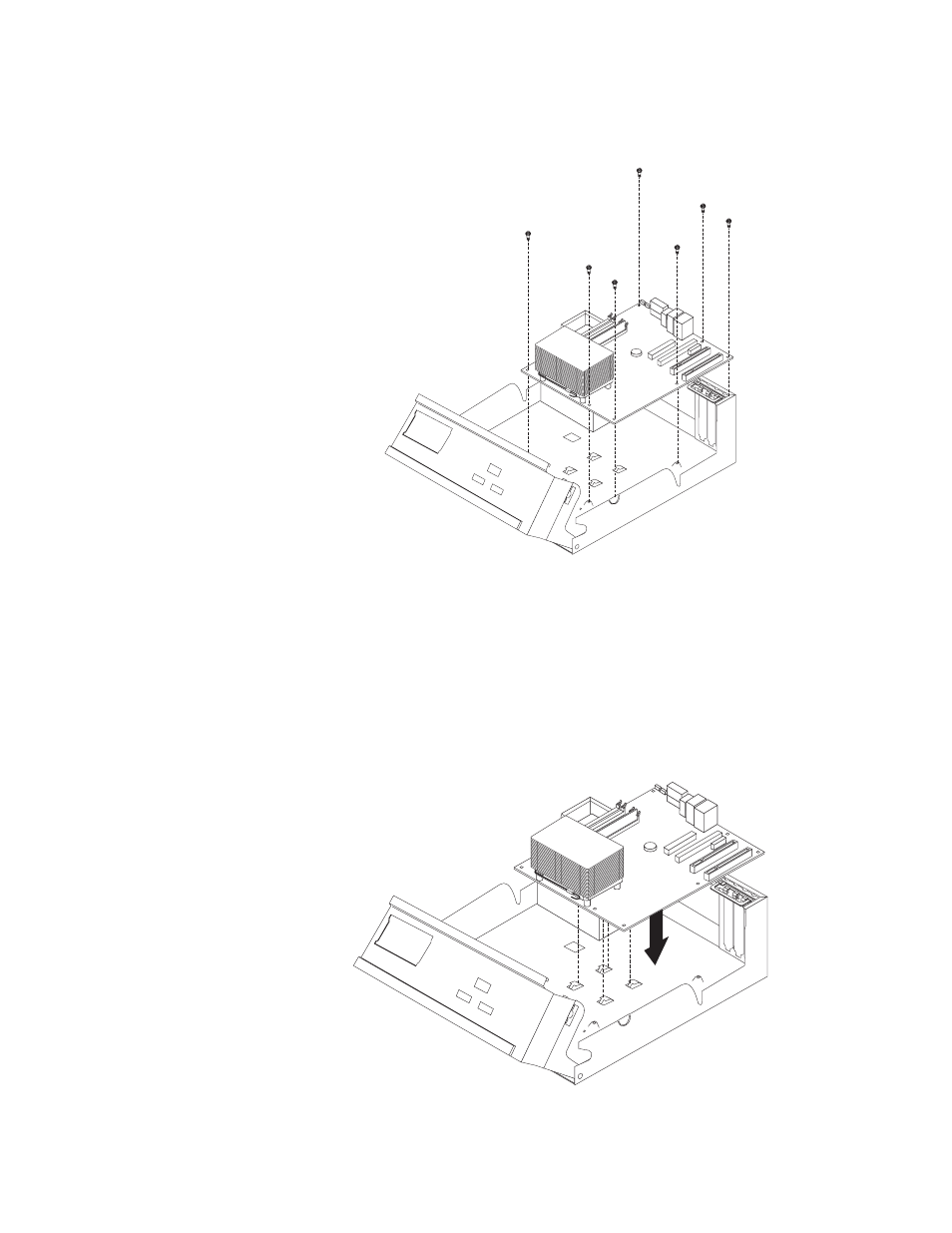

5.
Remove
the
seven
screws
that
attach
the
system
board
to
the
chassis
and
slide
the
system
board
toward
the
drive
bay
assembly.
Carefully
lift
out
the
system
board.
*X
X
X
X
X
X
X
X
X
*
*X
X
X
X
X
X
X
X
X
*
6.
Take
note
of
the
location
of
the
DIMMs
and
remove
them
from
the
system
board.
See
7.
Install
the
DIMMs
on
the
new
system
board
in
the
same
location
as
they
were
on
the
system
board
being
replaced.
8.
Remove
the
microprocessor
from
the
failing
system
board
and
install
it
on
the
new
system
board.
See
9.
Install
the
new
system
board
by
aligning
the
slots
in
the
metal
plate
on
the
bottom
of
the
system
board
with
the
tabs
on
the
chassis
then
slide
the
system
board
toward
the
rear
of
the
computer.
*X
X
X
X
X
X
X
X
X
*
*X
X
X
X
X
X
X
X
X
*
