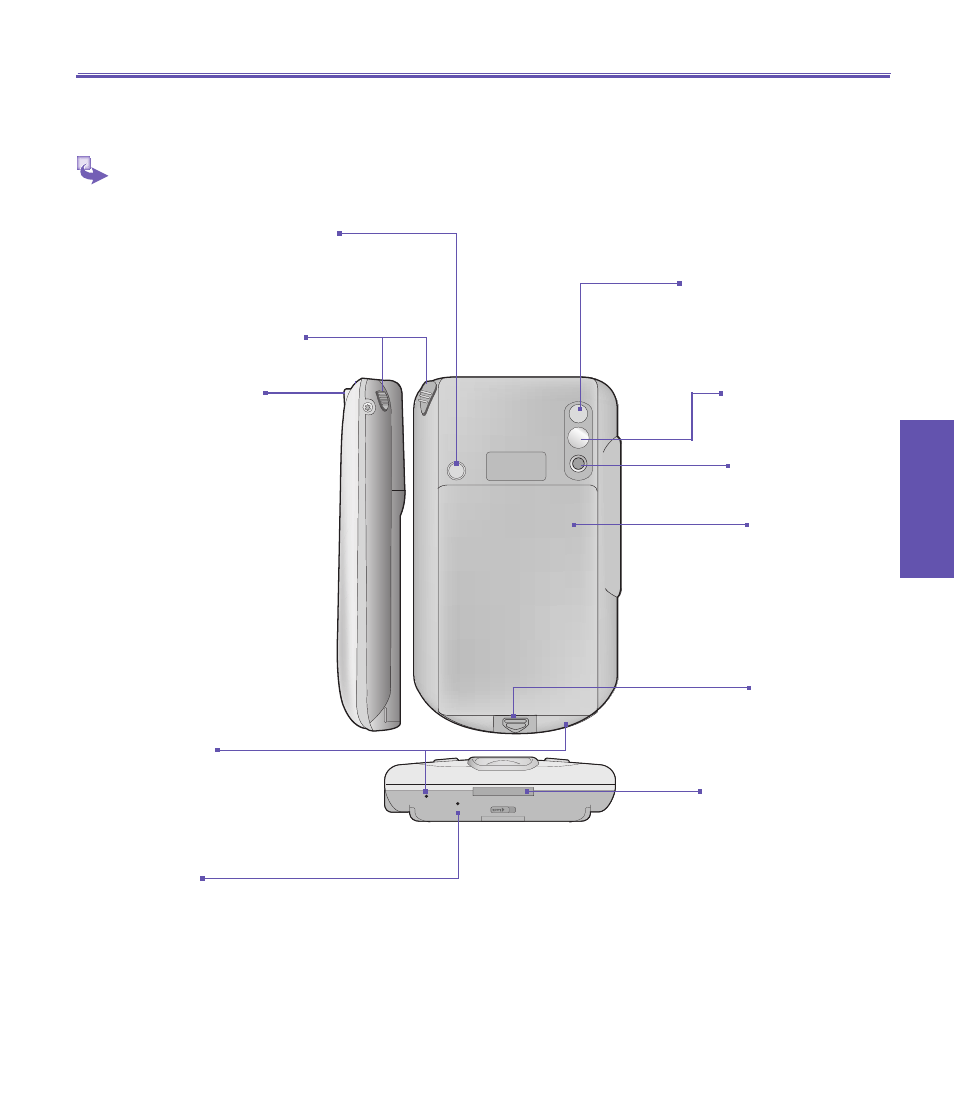

Back, Bottom and Right Side Panel Components
Built in Flashlight
Preview Mirror
Camera Lens
Back Cover
Fixing Lock
Press to release the back
battery.
Sync Connector
Use this connector when
synchronizing / transmitting
data or recharging.
Car Antenna Connector
If available, you can attach your
phone to its antenna and utilize
its superior reception quality.
Stylus and Stylus Slot
Notification LED
Bi-color LED on the right :
For CDMA standby, message,
and network status, PDA
notification, PDA charging
status.
Blue LED
on the left :
For Bluetooth system notification
of powered-on and ready to
transmit RF signal.
Microphone
Speak here when receiving or
making a phone call or voice
recording.
Soft Reset
Press here with stylus to reset
your device.
