Hardware Installation
- 25 -
English

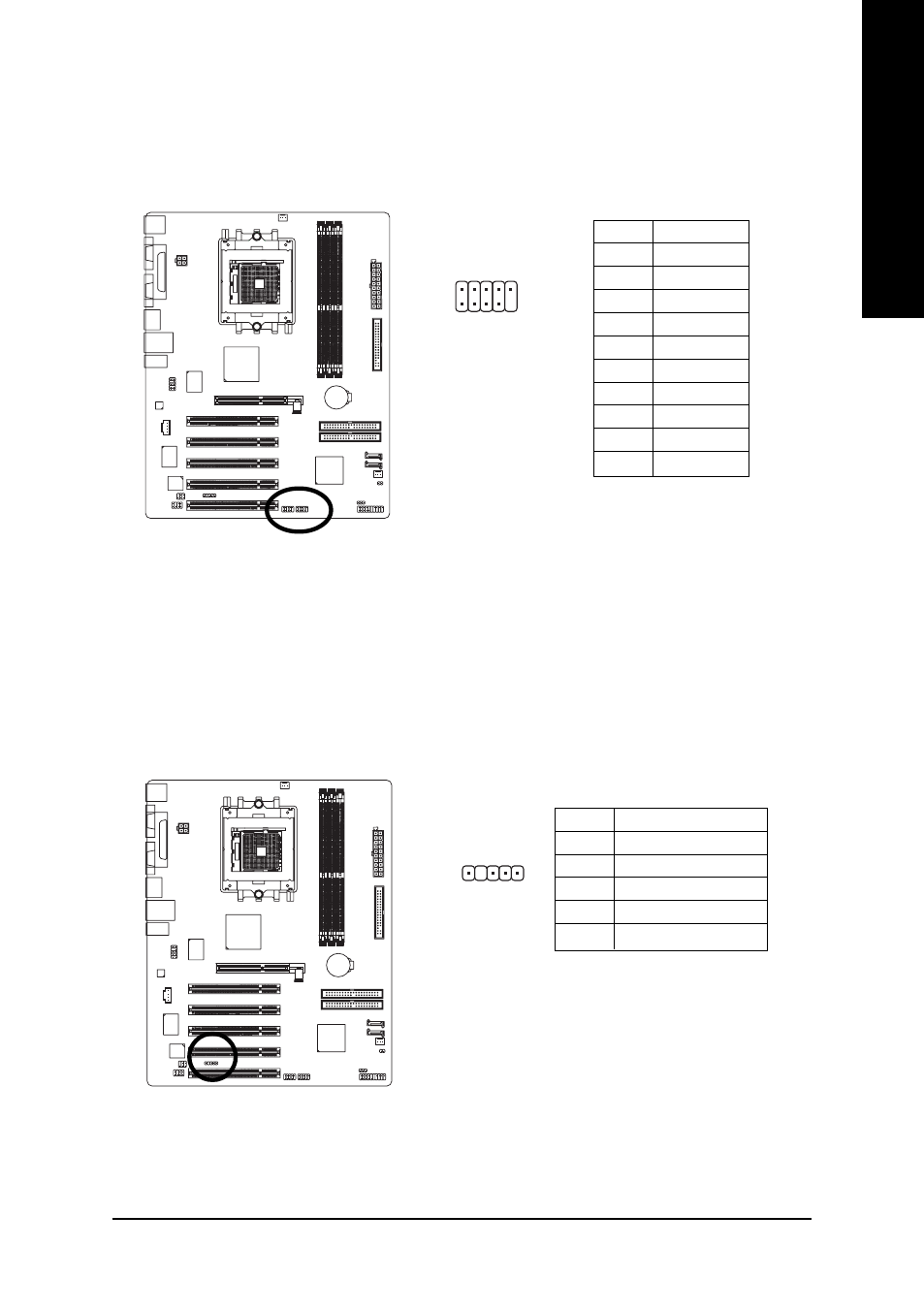

14) F_ USB1 / F_USB2 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you
connect the front USB cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional front USB cable, please contact your local dealer.
Pin No.
Definition
1
Power
2
Power
3
USB DX-
4
USB Dy-
5
USB DX+
6
USB Dy+
7
GND
8
GND
9
No Pin
10
NC
15) IR
Check the pin assignments carefully while you connect the IR cable because incorrect connection
between the cable and connector will make the device unable to work or even damage it. For
optional IR cable, please contact your local dealer.
1
9
2
10
1
Pin No.
Definition
1
Power
2
No Pin
3
IR RX
4
GND
5
IR TX
